RE.F1

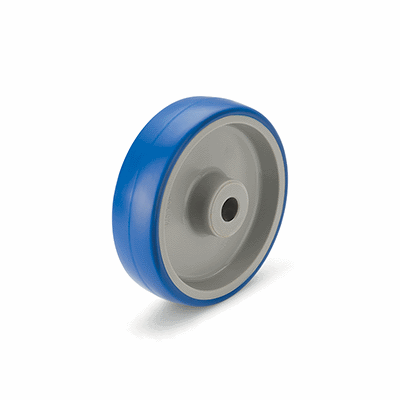

Injected polyurethane wheels

Teknisk datablad
550021-zcl_0_5

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 5 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Description RE.F1-080-RBL
    D
    —
    • —
    d
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    Static load
    —
    • —
    Smoothness
    —
    • —
    Dynamic carrying capacity
    —
    • —
    Weight
    —
    • —
    CAD
  • Description RE.F1-080-RBL
    D 80
    d 12
    l3 30
    l4 39
    Static load 1600
    Smoothness 750
    Dynamic carrying capacity 750
    Weight 110
  • Description RE.F1-100-RBL
    D 100
    d 12
    l3 30
    l4 44
    Static load 2000
    Smoothness 1200
    Dynamic carrying capacity 1200
    Weight 160
  • Description RE.F1-125-RBL
    D 125
    d 15
    l3 35
    l4 44
    Static load 3500
    Smoothness 1800
    Dynamic carrying capacity 1800
    Weight 250
  • Description RE.F1-150-RBL
    D 150
    d 20
    l3 45
    l4 59
    Static load 4500
    Smoothness 2400
    Dynamic carrying capacity 2500
    Weight 470
  • Description RE.F1-200-RBL
    D 200
    d 20
    l3 50
    l4 59
    Static load 5000
    Smoothness 3000
    Dynamic carrying capacity 3000
    Weight 870
