Hjem / Industrikomponenter / Clamping knobs / Grip knobs / GN 464.1

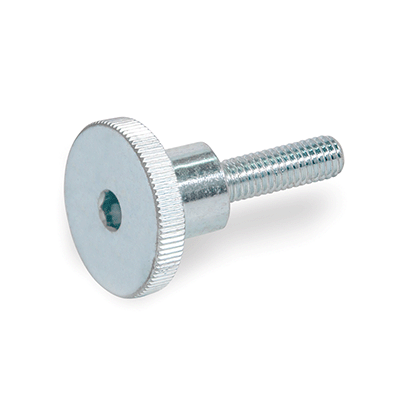

GN 464.1

Grip knobs

Teknisk datablad

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

GN 464.1

Grip knobs

Bracket Material

Stainless steel(0)
Steel(0)

Material

Aluminium(0)
Aluminium-Steel(0)
Aluminium|Stainless steel(0)
Brass(0)
Brass zinc alloy(0)
Brass-Steel(0)
Cast iron(0)
Die-cast zinc alloy(0)
Duroplast(0)
Duroplast-Chromium(0)
Duroplast-Stainless steel(0)
Duroplast-Steel(0)
Oslrubber(0)
Rubber(0)
Rubber-Stainless steel(0)
Rubber-Steel(0)
Silicon(0)
Stainless steel(0)
Stainless steel A4(0)
Steel(14)
Technopolymer(0)
Technopolymer-Die-cast zinc alloy(0)
Technopolymer-Stainless steel(0)
Technopolymer-Steel(0)
Technopolymer-Zamac(0)
Technopolymer|Stainless steel(0)
Titanium(0)
Zinc(0)

Bushing Material

Steel(0)

Carrying Capacity

0 - 1400 N(0)
10001 - 25000 N(0)
1401 - 2600 N(0)
2601 - 5000 N(0)
5001 - 10000 N(0)

Diameter

Plunger Diameter

Type Of Assembly

Blind hole(0)
Blind holes(0)
Blind holes-Threaded screws(0)
For welding(0)
Not drilled(0)
Pass-through hole(0)
Pass-through holes(0)
Pass-through holes-Blind holes(0)
Pass-through holes-Threaded screws(0)
Plain hole(0)
Plain hole and keyway(0)
Snap-in(0)
Square hole(0)
Threaded screw(13)
Threaded screws(0)
Without holes(0)

Type Of Tube

Round(0)
Square(0)
Square-Round(0)

Diameter Bases

100(0)
120(0)
125(0)
160(0)
200(0)
25(0)
26(0)
30(0)
32(0)
40(0)
50(0)
60(0)
70(0)
80(0)

Connecting Thread

1/2-13(0)
3/8-24(0)
M 10(0)
M 10x1(0)
M 12(0)
M 12x1.5(0)
M 16(0)
M 16x1.5(0)
M 20(0)
M 20x1.5(0)
M 24x2(0)
M 6(0)
M 6x0.75(0)
M 8(0)
M 8x0.75(0)
M 8x1(0)

External Diameter

Handle

fixed handle(0)
fold away handle(0)
revolving handle(0)
safety fold away handle(0)
without handle(0)

Hole

Lever Length

Wheel Base

Threaded Screw

1/2-13(0)
1/4-20(0)
10-32(0)
3/8-16(0)
5/16-18(0)
5/8-11(0)
63(0)
M 10(4)
M 12(0)
M 14(0)
M 16(0)
M 2(0)
M 2,5(0)
M 20(0)
M 20x1.5(0)
M 24(0)
M 24x2(0)
M 3(0)
M 30(0)
M 30x2(0)
M 36x2(0)
M 4(0)
M 42x2(0)
M 5(3)
M 6(2)
M 8(3)
M 8x22(0)

Hole Distance

Threaded Connection

G 1/2(0)
G 1/4(0)
G 1/8(0)
G 3/8(0)
M 10(0)
M 10x1.25(0)
M 10x1.5(0)
M 12(0)
M 14x1.5(0)
M 5(0)
M 6(0)
M 8(0)
NPT1/4(0)
NPT3/8(0)

Type Of Bellow

Multi-bellow(0)
Wibellow(0)

Type Of Vacuum Cups Holder

Anti-rotating(0)
Fixed(0)
Micro(0)
Mini-Anti-rotating(0)
Mini-Built-in Spring(0)
Mini-Fixed(0)
Mini-Spring(0)
Spring(0)

Vacuum Cup Holders Dimension

101 - 150(0)
151 - 192(0)
43 - 74(0)
75 - 100(0)

Vacuum Cups Dimension

101 - 143(0)
11 - 20(0)
21 - 30(0)
31 - 40(0)
4 - 10(0)
41 - 50(0)
51 - 60(0)
61 - 70(0)
71 - 80(0)
81 - 100(0)

Connector

DIN43650C(0)
KN(0)

length
pcs
set
stk

Viser alle 14 resultater

Vennligst velg en deltype for å få relevante valg.

Lukk

Code GN.21031

Description GN 464.1-M10-20-ZB

d1

—

—

d2

—

—

d3

—

—

h

—

—

k

—

—

I

—

—

sw

—

—

Weight

—

—

CAD

Les mer

Code GN.21031

Description GN 464.1-M10-20-ZB

d1 M 10

d2 36

d3 20

h 23

k 8

I 20

sw 8

Weight 107

Les mer
Code GN.21032

Description GN 464.1-M10-25-ZB

d1 M 10

d2 36

d3 20

h 23

k 8

I 25

sw 8

Weight 114

Les mer
Code GN.21033

Description GN 464.1-M10-30-ZB

d1 M 10

d2 36

d3 20

h 23

k 8

I 30

sw 8

Weight 121

Les mer
Code GN.21034

Description GN 464.1-M10-40-ZB

d1 M 10

d2 36

d3 20

h 23

k 8

I 40

sw 8

Weight 130

Les mer
Code GN.21001

Description GN 464.1-M5-10-ZB

d1 M 5

d2 20

d3 10

h 11.5

k 4

I 10

sw 4

Weight 15

Les mer
Code GN.21002

Description GN 464.1-M5-12-ZB

d1 M 5

d2 20

d3 10

h 11.5

k 4

I 12

sw 4

Weight 16

Les mer
Code GN.21003

Description GN 464.1-M5-16-ZB

d1 M 5

d2 20

d3 10

h 11.5

k 4

I 16

sw 4

Weight 18

Les mer
Code GN.21004

Description GN 464.1-M5-20-ZB

d1 M 5

d2 20

d3 10

h 11.5

k 4

I 20

sw 4

Weight 20

Les mer
Code GN.21011

Description GN 464.1-M6-12-ZB

d1 M 6

d2 24

d3 12

h 15

k 5

I 12

sw 5

Weight 28

Les mer
Code GN.21012

Description GN 464.1-M6-16-ZB

d1 M 6

d2 24

d3 12

h 15

k 5

I 16

sw 5

Weight 32

Les mer
Code GN.21021

Description GN 464.1-M8-16-ZB

d1 M 8

d2 30

d3 16

h 18

k 6

I 16

sw 6

Weight 62

Les mer
Code GN.21022

Description GN 464.1-M8-20-ZB

d1 M 8

d2 30

d3 16

h 18

k 6

I 20

sw 6

Weight 67

Les mer
Code GN.21023

Description GN 464.1-M8-25-ZB

d1 M 8

d2 30

d3 16

h 18

k 6

I 25

sw 6

Weight 73

Les mer
Code GN.21024

Description GN 464.1-M8-30-ZB

d1 M 8

d2 30

d3 16

h 18

k 6

I 30

sw 6

Weight 78

Les mer
