GN 162.8

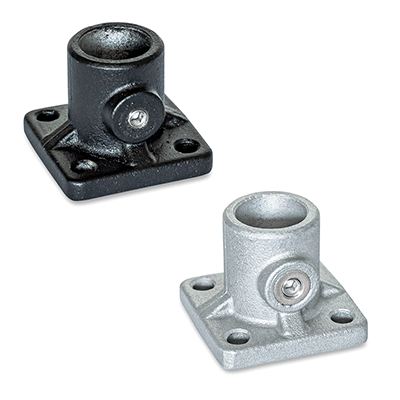

Connecting clamps for tubes

Teknisk datablad
550627-zcl_2_0

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 12 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GN.48371
    Description GN 162.8-B10-3-BL
    Color
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    k
    —
    • —
    l
    —
    • —
    Thermometer
    —
    • —
    z
    —
    • —
    x1
    —
    • —
    x2
    —
    • —
    y1
    —
    • —
    y2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code GN.48371
    Description GN 162.8-B10-3-BL
    d1 B 10
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 52
    Color -
    Les mer
  • Code GN.48372
    Description GN 162.8-B10-3-SW
    d1 B 10
    Color SW
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 52
    Les mer
  • Code GN.48373
    Description GN 162.8-B12-3-BL
    d1 B 12
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 50
    Color -
    Les mer
  • Code GN.48374
    Description GN 162.8-B12-3-SW
    d1 B 12
    Color SW
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 50
    Les mer
  • Code GN.48375
    Description GN 162.8-B14-3-BL
    d1 B 14
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 48
    Color -
    Les mer
  • Code GN.48376
    Description GN 162.8-B14-3-SW
    d1 B 14
    Color SW
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 48
    Les mer
  • Code GN.48377
    Description GN 162.8-B15-3-BL
    d1 B 15
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 47
    Color -
    Les mer
  • Code GN.48378
    Description GN 162.8-B15-3-SW
    d1 B 15
    Color SW
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 47
    Les mer
  • Code GN.48379
    Description GN 162.8-B16-3-BL
    d1 B 16
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 42
    Color -
    Les mer
  • Code GN.48380
    Description GN 162.8-B16-3-SW
    d1 B 16
    Color SW
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 42
    Les mer
  • Code GN.48381
    Description GN 162.8-B18-3-BL
    d1 B 18
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 38
    Color -
    Les mer
  • Code GN.48382
    Description GN 162.8-B18-3-SW
    d1 B 18
    Color SW
    d2 5.5
    k 32
    l 25
    Thermometer 6
    z M6-6
    x1 40
    x2 28
    y1 40
    y2 28
    Weight 38
    Les mer
