GN 127

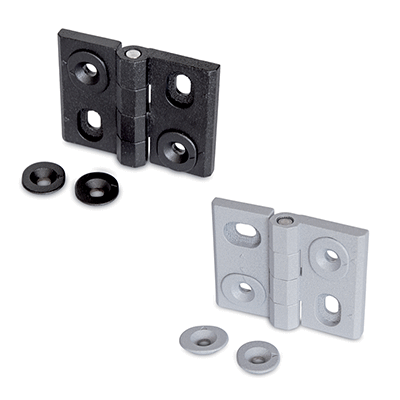

Metal hinges

Teknisk datablad
CE.76561-pw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 27 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GN.79001
    Description GN 127-A4-52-40-B-GS
    Color
    —
    • —
    Rotation
    —
    • —
    h1
    —
    • —
    l2
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    l3
    —
    • —
    m1
    —
    • —
    m2
    —
    • —
    x
    —
    • —
    w
    —
    • —
    Weight
    —
    • —
    l1
    —
    • —
    CAD
    Les mer
  • Code GN.79001
    Description GN 127-A4-52-40-B-GS
    Rotation 0
    Color GS
    h1 9.5
    l2 40
    d1 4.5
    d2 4
    h2 6
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 1
    w 2
    Weight 76
    l1 -
    Les mer
  • Code GN.79005
    Description GN 127-A4-52-40-H-GS
    Rotation 0
    Color GS
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 1
    w 2
    Weight 78
    Les mer
  • Code GN.79003
    Description GN 127-A4-52-40-HB-GS
    Rotation 0
    Color GS
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 1
    w 2
    Weight 77
    Les mer
  • Code GN.79011
    Description GN 127-A4-64-50-B-GS
    Rotation 0
    Color GS
    h1 11.5
    l2 50
    d1 5.5
    d2 6
    h2 7
    h3 6.5
    l3 28
    m1 37
    m2 27
    x 1.5
    w 3
    Weight 137
    l1 -
    Les mer
  • Code GN.79015
    Description GN 127-A4-64-50-H-GS
    Rotation 0
    Color GS
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 7
    h3 7.5
    l3 28
    m1 37
    m2 27
    x 1.5
    w 3
    Weight 140
    Les mer
  • Code GN.79013
    Description GN 127-A4-64-50-HB-GS
    Rotation 0
    Color GS
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 7
    h3 6.5
    l3 28
    m1 37
    m2 27
    x 1.5
    w 3
    Weight 138
    Les mer
  • Code GN.79021
    Description GN 127-A4-76-60-B-GS
    Rotation 0
    Color GS
    h1 15
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 2
    w 4
    Weight 253
    l1 -
    Les mer
  • Code GN.79025
    Description GN 127-A4-76-60-H-GS
    Rotation 0
    Color GS
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 2
    w 4
    Weight 259
    Les mer
  • Code GN.79023
    Description GN 127-A4-76-60-HB-GS
    Rotation 0
    Color GS
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 2
    w 4
    Weight 256
    Les mer
  • Code GN.79031
    Description GN 127-ZD-52-40-B-SR
    Rotation 0
    Color SR
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6.5
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 0.5
    w 2
    Weight 69
    Les mer
  • Code GN.79033
    Description GN 127-ZD-52-40-B-SW
    Rotation 0
    Color SW
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6.5
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 0.5
    w 2
    Weight 69
    Les mer
  • Code GN.79039
    Description GN 127-ZD-52-40-H-SR
    Rotation 0
    Color SR
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 0.5
    w 2
    Weight 69
    Les mer
  • Code GN.79041
    Description GN 127-ZD-52-40-H-SW
    Rotation 0
    Color SW
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 0.5
    w 2
    Weight 69
    Les mer
  • Code GN.79035
    Description GN 127-ZD-52-40-HB-SR
    Rotation 0
    Color SR
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6.5
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 0.5
    w 2
    Weight 69
    Les mer
  • Code GN.79037
    Description GN 127-ZD-52-40-HB-SW
    Rotation 0
    Color SW
    h1 9.5
    l1 52
    l2 40
    d1 4.5
    d2 4
    h2 6.5
    h3 5.5
    l3 22
    m1 30
    m2 22
    x 0.5
    w 2
    Weight 69
    Les mer
  • Code GN.79051
    Description GN 127-ZD-64-50-B-SR
    Rotation 0
    Color SR
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 7
    h3 7.5
    l3 28
    m1 37
    m2 27
    x 0.75
    w 3
    Weight 115
    Les mer
  • Code GN.79053
    Description GN 127-ZD-64-50-B-SW
    Rotation 0
    Color SW
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 7
    h3 7.5
    l3 28
    m1 37
    m2 27
    x 0.75
    w 3
    Weight 115
    Les mer
  • Code GN.79059
    Description GN 127-ZD-64-50-H-SR
    Rotation 0
    Color SR
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 6.5
    h3 7.5
    l3 28
    m1 37
    m2 27
    x 0.75
    w 3
    Weight 115
    Les mer
  • Code GN.79061
    Description GN 127-ZD-64-50-H-SW
    Rotation 0
    Color SW
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 6.5
    h3 7.5
    l3 28
    m1 37
    m2 27
    x 0.75
    w 3
    Weight 115
    Les mer
  • Code GN.79055
    Description GN 127-ZD-64-50-HB-SR
    Rotation 0
    Color SR
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 7
    h3 7.5
    l3 28
    m1 37
    m2 27
    x 0.75
    w 3
    Weight 115
    Les mer
  • Code GN.79057
    Description GN 127-ZD-64-50-HB-SW
    Rotation 0
    Color SW
    h1 11.5
    l1 64
    l2 50
    d1 5.5
    d2 6
    h2 7
    h3 7.5
    l3 28
    m1 37
    m2 27
    x 0.75
    w 3
    Weight 115
    Les mer
  • Code GN.79071
    Description GN 127-ZD-76-60-B-SR
    Rotation 0
    Color SR
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 1
    w 4
    Weight 205
    Les mer
  • Code GN.79073
    Description GN 127-ZD-76-60-B-SW
    Rotation 0
    Color SW
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 1
    w 4
    Weight 205
    Les mer
  • Code GN.79079
    Description GN 127-ZD-76-60-H-SR
    Rotation 0
    Color SR
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 1
    w 4
    Weight 205
    Les mer
  • Code GN.79081
    Description GN 127-ZD-76-60-H-SW
    Rotation 0
    Color SW
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 1
    w 4
    Weight 205
    Les mer
  • Code GN.79075
    Description GN 127-ZD-76-60-HB-SR
    Rotation 0
    Color SR
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 1
    w 4
    Weight 205
    Les mer
  • Code GN.79077
    Description GN 127-ZD-76-60-HB-SW
    Rotation 0
    Color SW
    h1 15
    l1 76
    l2 60
    d1 6.5
    d2 8
    h2 9
    h3 8.5
    l3 33.5
    m1 42
    m2 34
    x 1
    w 4
    Weight 205
    Les mer
