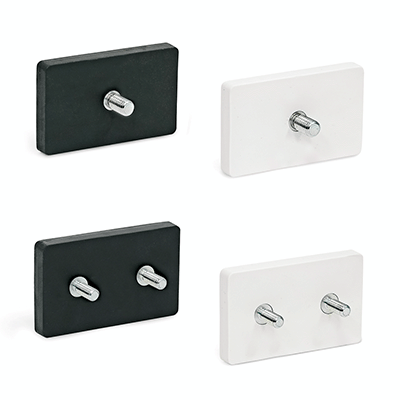

RMS-P

Magnets

Teknisk datablad
CE.70121-ga11_ga12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 24 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 503059
    Description RMS-P-ND-110x45-1-BK
    B
    —
    • —
    d
    —
    • —
    H
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    f
    —
    • —
    Nominal adhesive forces uni
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 503059
    Description RMS-P-ND-110x45-1-BK
    B 110 ±0.3
    d M8
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f -
    Nominal adhesive forces uni 530
    Weight 163
    Les mer
  • Code 503060
    Description RMS-P-ND-110x45-1-WT
    B 110 ±0.3
    d M8
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f -
    Nominal adhesive forces uni 530
    Weight 163
    Les mer
  • Code 503061
    Description RMS-P-ND-110x45-2-BK
    B 110 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f 68
    Nominal adhesive forces uni 530
    Weight 168
    Les mer
  • Code 503062
    Description RMS-P-ND-110x45-2-WT
    B 110 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f 68
    Nominal adhesive forces uni 530
    Weight 168
    Les mer
  • Code 502977
    Description RMS-P-ND-35x22
    B 35 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f -
    Nominal adhesive forces uni 93
    Weight 21
    Les mer
  • Code 502978
    Description RMS-P-ND-35x22
    B 35 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f -
    Nominal adhesive forces uni 93
    Weight 21
    Les mer
  • Code 502979
    Description RMS-P-ND-35x22
    B 35 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f 17
    Nominal adhesive forces uni 93
    Weight 22
    Les mer
  • Code 502980
    Description RMS-P-ND-35x22
    B 35 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f 17
    Nominal adhesive forces uni 93
    Weight 22
    Les mer
  • Code 502993
    Description RMS-P-ND-55x22
    B 55 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f -
    Nominal adhesive forces uni 140
    Weight 31
    Les mer
  • Code 502994
    Description RMS-P-ND-55x22
    B 55 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f -
    Nominal adhesive forces uni 140
    Weight 31
    Les mer
  • Code 502995
    Description RMS-P-ND-55x22
    B 55 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f 30
    Nominal adhesive forces uni 140
    Weight 32
    Les mer
  • Code 502996
    Description RMS-P-ND-55x22
    B 55 ±0.2
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f 30
    Nominal adhesive forces uni 140
    Weight 32
    Les mer
  • Code 503051
    Description RMS-P-ND-59x45-1-BK
    B 59 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f -
    Nominal adhesive forces uni 240
    Weight 86
    Les mer
  • Code 503052
    Description RMS-P-ND-59x45-1-WT
    B 59 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f -
    Nominal adhesive forces uni 240
    Weight 86
    Les mer
  • Code 503053
    Description RMS-P-ND-59x45-2-BK
    B 59 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f 27
    Nominal adhesive forces uni 240
    Weight 91
    Les mer
  • Code 503054
    Description RMS-P-ND-59x45-2-WT
    B 59 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f 27
    Nominal adhesive forces uni 240
    Weight 91
    Les mer
  • Code 503055
    Description RMS-P-ND-74x45-1-BK
    B 74 ±0.3
    d M8
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f -
    Nominal adhesive forces uni 360
    Weight 111
    Les mer
  • Code 503056
    Description RMS-P-ND-74x45-1-WT
    B 74 ±0.3
    d M8
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f -
    Nominal adhesive forces uni 360
    Weight 111
    Les mer
  • Code 503057
    Description RMS-P-ND-74x45-2-BK
    B 74 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f 36
    Nominal adhesive forces uni 360
    Weight 114
    Les mer
  • Code 503058
    Description RMS-P-ND-74x45-2-WT
    B 74 ±0.3
    d M6
    H 45 ±0.3
    h1 8.5 ±0.2
    h2 15
    f 36
    Nominal adhesive forces uni 360
    Weight 114
    Les mer
  • Code 502997
    Description RMS-P-ND-75x22
    B 75 ±0.3
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f -
    Nominal adhesive forces uni 205
    Weight 44
    Les mer
  • Code 502998
    Description RMS-P-ND-75x22
    B 75 ±0.3
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f -
    Nominal adhesive forces uni 205
    Weight 44
    Les mer
  • Code 502999
    Description RMS-P-ND-75x22
    B 75 ±0.3
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f 50
    Nominal adhesive forces uni 205
    Weight 45
    Les mer
  • Code 503000
    Description RMS-P-ND-75x22
    B 75 ±0.3
    d M4
    H 22.5 ±0.2
    h1 6 ±0.2
    h2 6
    f 50
    Nominal adhesive forces uni 205
    Weight 45
    Les mer
