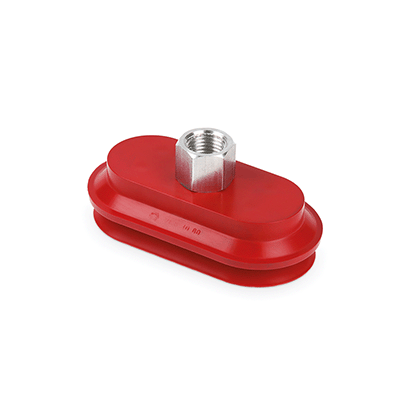

VVE

Vacuum pads cups

Teknisk datablad
GN.10672-gn_6339

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 4 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code VV.49001
    Description VVE-30-60-G1/4-B
    d1
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    h4
    —
    • —
    b
    —
    • —
    b1
    —
    • —
    b2
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    I2
    —
    • —
    l3
    —
    • —
    s
    —
    • —
    F
    —
    • —
    Volume
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code VV.49001
    Description VVE-30-60-G1/4-B
    d1 G1/8
    d2 G1/4
    h 35
    h1 21
    h2 14
    h3 7
    h4 10
    b 33
    b1 20
    b2 30
    l 63
    l1 50
    I2 44.5
    l3 60
    s 17
    F 4
    Volume 12.6
    Weight 49
    Les mer
  • Code VV.49002
    Description VVE-40-80-G1/4-B
    d1 G1/8
    d2 G1/4
    h 37
    h1 23
    h2 14
    h3 9
    h4 10
    b 43
    b1 30
    b2 40
    l 83
    l1 70
    I2 64
    l3 80
    s 17
    F 7.1
    Volume 24.8
    Weight 92
    Les mer
  • Code VV.49003
    Description VVE-50-100-G3/8-B
    d1 G1/4
    d2 G3/8
    h 44
    h1 29
    h2 15
    h3 13
    h4 10
    b 53
    b1 30
    b2 50
    l 103
    l1 80
    I2 79
    l3 100
    s 17
    F 11.1
    Volume 57.6
    Weight 125
    Les mer
  • Code VV.49004
    Description VVE-70-140-G3/8-B
    d1 G1/4
    d2 G3/8
    h 48
    h1 33
    h2 15
    h3 16.5
    h4 10
    b 73
    b1 40
    b2 70
    l 143
    l1 110
    I2 109
    l3 140
    s 22
    F 21.8
    Volume 122.8
    Weight 228
    Les mer
