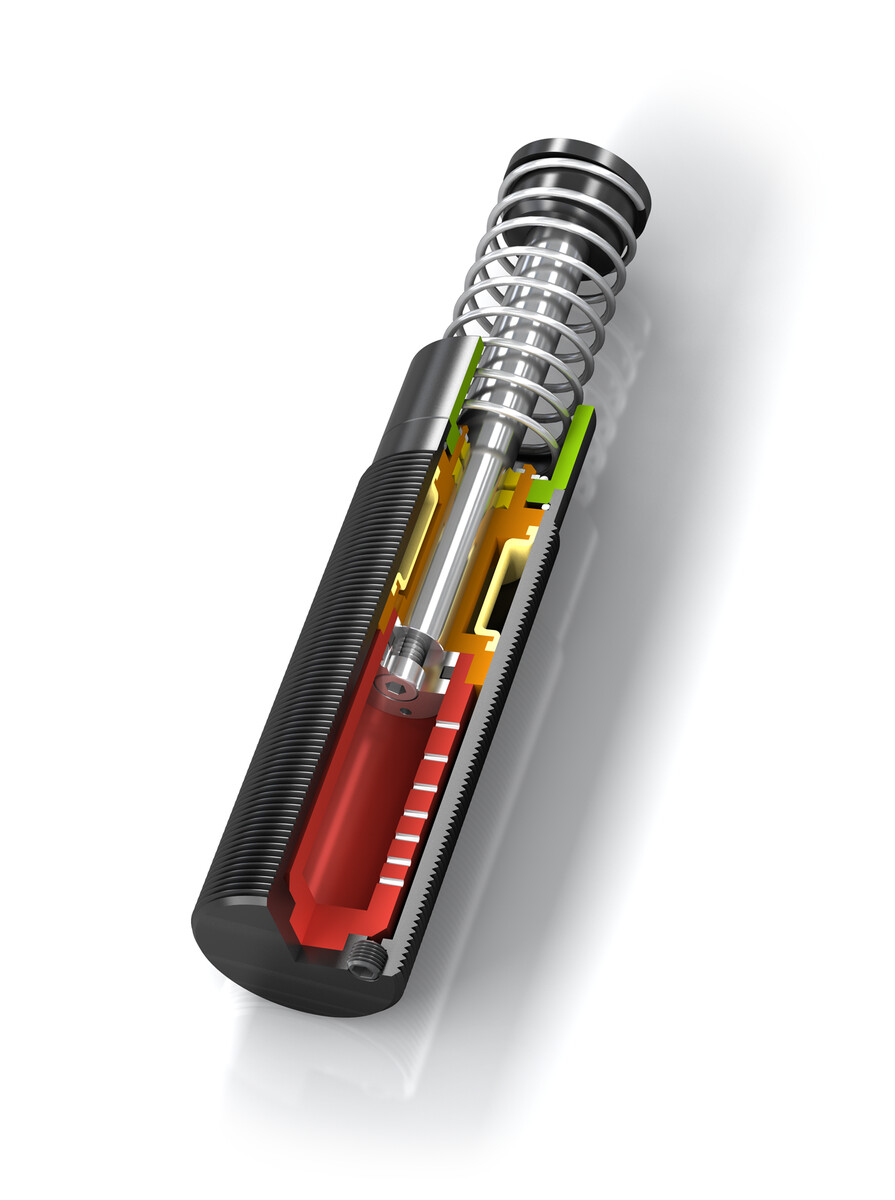

ACE Industrial Shock Absorber self-compensating
Extreme low temperatures and high cycle frequencies
- Code: MC64150EUM-1-LT
- Description: Extreme low temperatures and high cycle frequencies
- Part no.: MC64150EUM-1-LT
- Max. stroke: 150
- Stroke: 150.0
- a: 1, 2
- d: 0

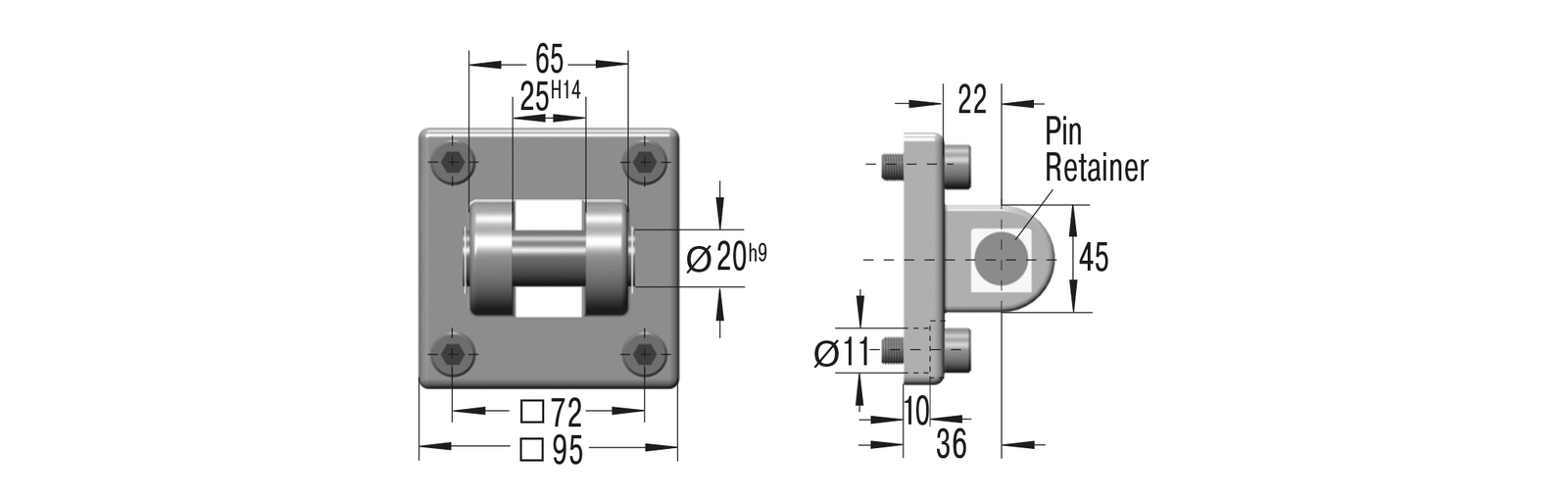

- Position Side Foot Mountig Kit: 0
- Angle: 0
- Attachment Parts: 1
- Length: 150.0, 241, 450
- Diameter: 48, 60
- Thread: M64x2
- Max. Energy Capacity pro Hub: 248000, 5100
- Max. Energy Capacity per Hour at 20 °C: 0
- Max. Energy Capacity per Hour at 100 °C: 0
- Rod Reset Time: 0.96
- Max. Side Load Angle: 2
- Weight: 5.10
- Product Specification: Datenblatt
Cad 3D
