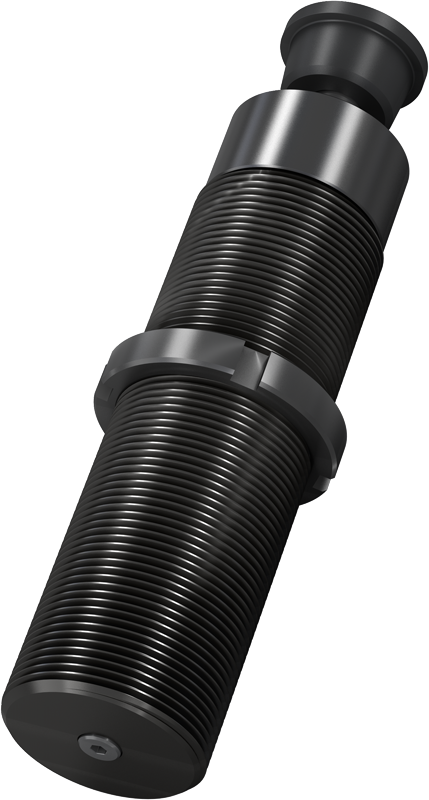

ACE Industrial Shock Absorber self-compensating, Piston tube
Piston tube design for maximum energy absorption
- Code: SC3325EUM-5
- Description: Piston tube design for maximum energy absorption
- Part no.: SC3325EUM-5
- Max. stroke: 25
- Stroke: 25
- a: 1
- d: 0
- Position Side Foot Mountig Kit: 0
- Distance: 0, 25, 39, 40, 66.0, 98
- Angle: 0
- Attachment Parts: 1
- Effective Weight me: 1360, 2721
- Length: 122, 178, 208
- Max. Energy Capacity: 155, 75000
- min.: 44.000
- max.: 89.000
- Return Time: 0.75
- Max. Side Load Angle: 4
- Weight: 1.13
- Product Specification: Datenblatt
Cad 3D
