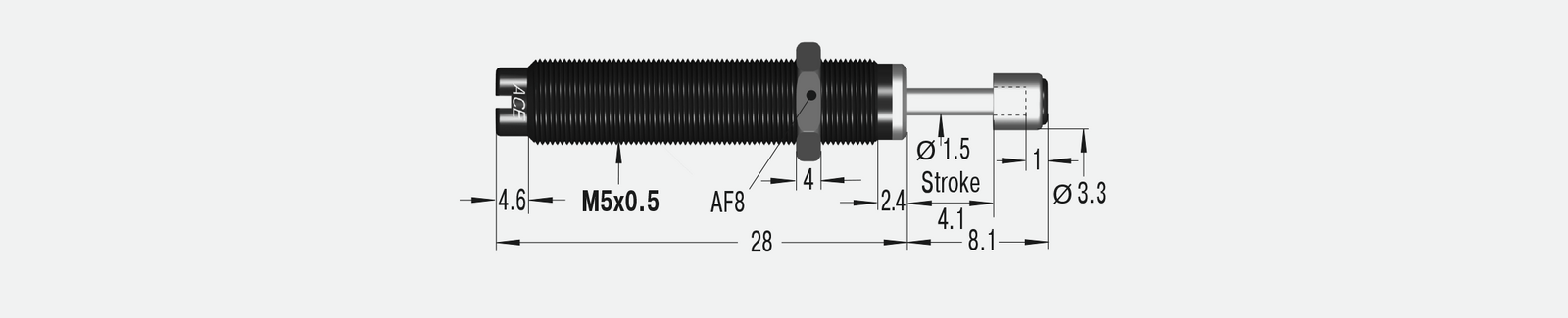

ACE Miniature Shock Absorber ( A 83 ) self-compensating (A
Shock absorbers in miniature format
- Code: MC5EUM-3-B
- Description: Shock absorbers in miniature format
- Part no.: MC5EUM-3-B
- Max. Energy Capacity at continuous operation: 0.68
- Max. Energy Capacity at emergency stop: 2040
- Effective Weight me - Soft-Contact: 18.7, 9.7
- Min. Return Force: 1, 5
- Rod Reset Time: 0.2
- Max. Side Load Angle: 2
- Weight: 0.003
- Max. stroke: 4.1
- Stroke: 0

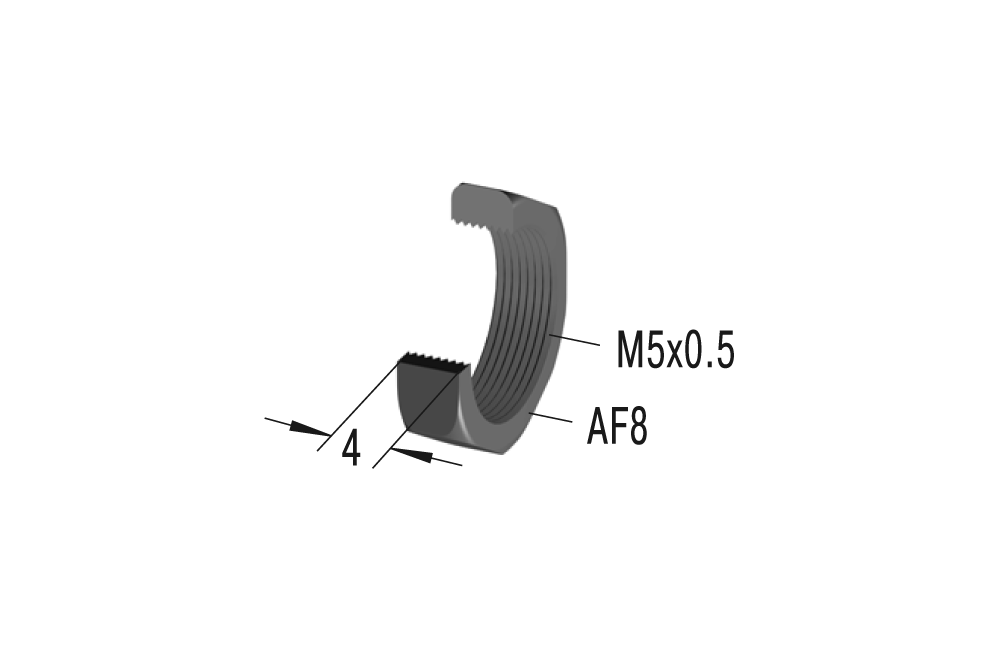

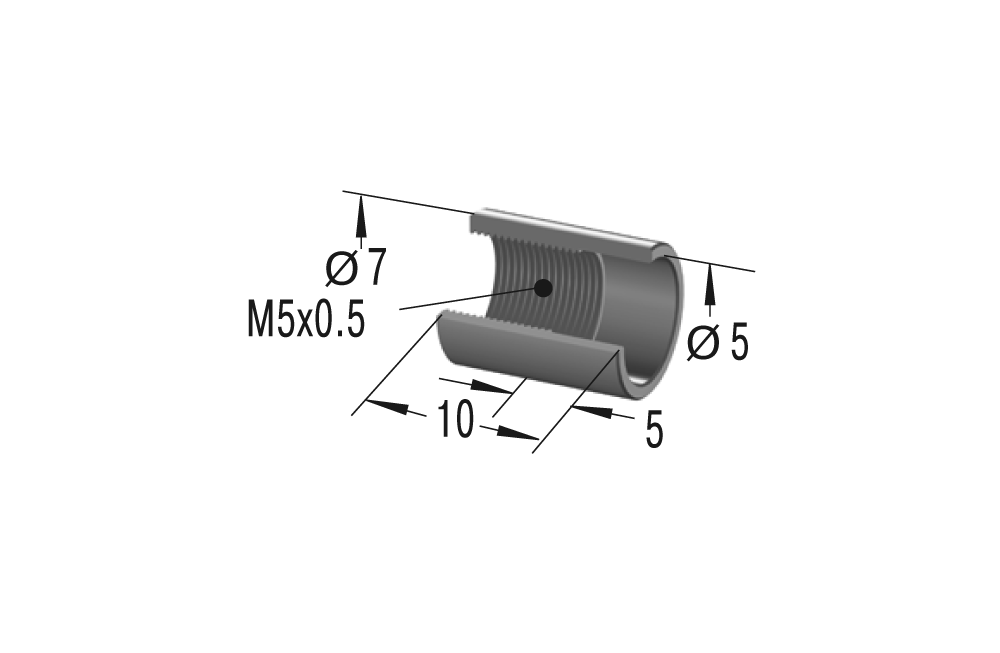

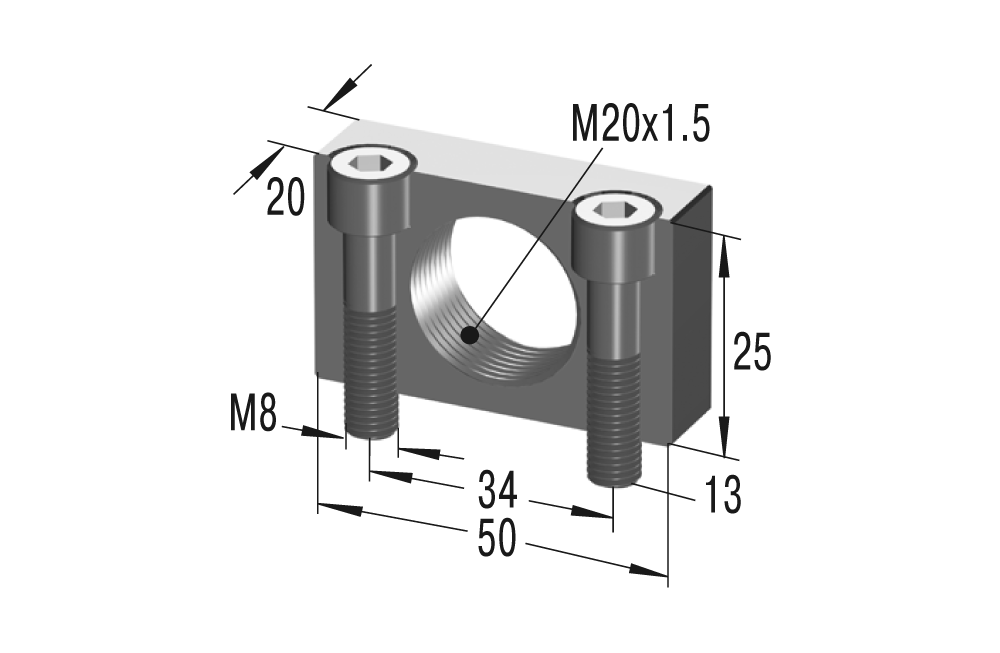

- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt
Cad 3D
