ACE Miniature Shock Absorber adjustable
Stepless adjustment
- Code: MA600EUM
- Description: Stepless adjustment
- Part no.: MA600EUM
- Max. Energy Capacity at continuous operation: 68.0
- Max. Energy Capacity at emergency stop: 68000
- effective weight - adjusted: 1360, 9
- Min. Return Force: 10, 30
- Rod Reset Time: 0.2
- Max. Side Load Angle: 2
- Weight: 0.31
- Max. stroke: 25.4
- Stroke: 0
- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt

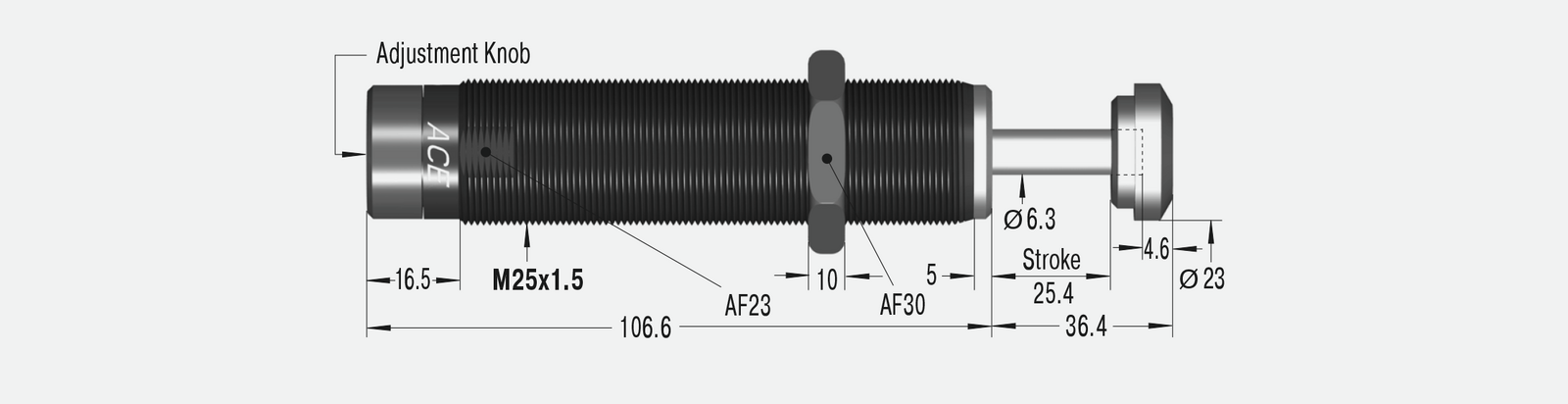

Cad 3D
