ACE Miniature Shock Absorber adjustable
Stepless adjustment
- Code: MA225EUM
- Description: Stepless adjustment
- Part no.: MA225EUM
- Max. Energy Capacity at continuous operation: 25.0
- Max. Energy Capacity at emergency stop: 45000
- effective weight - adjusted: 2.3, 226
- Min. Return Force: 10, 5
- Rod Reset Time: 0.1
- Max. Side Load Angle: 2
- Weight: 0.13
- Max. stroke: 19.0
- Stroke: 0
- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt

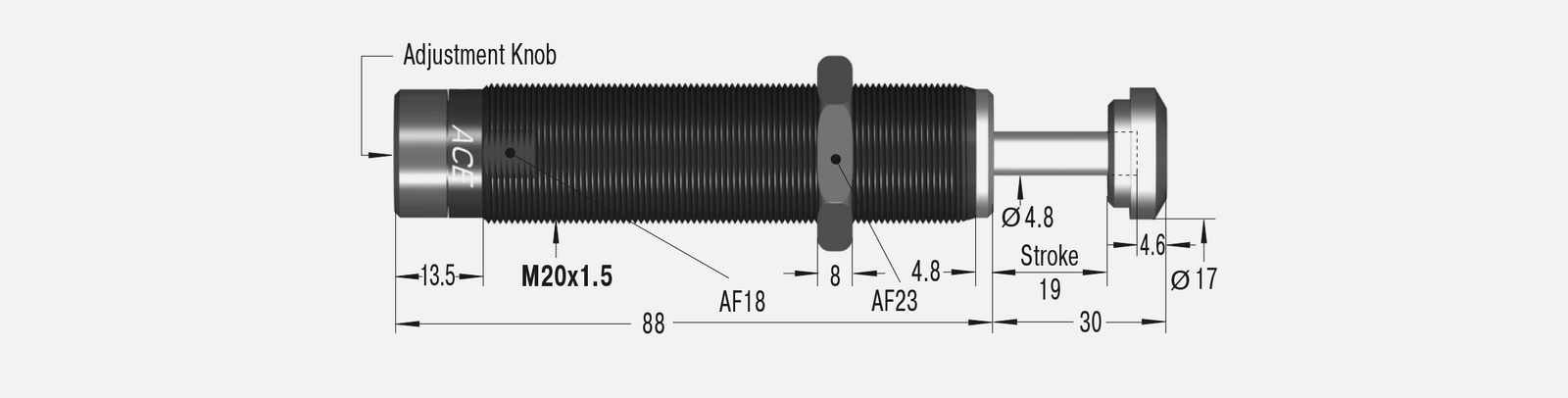

Cad 3D
