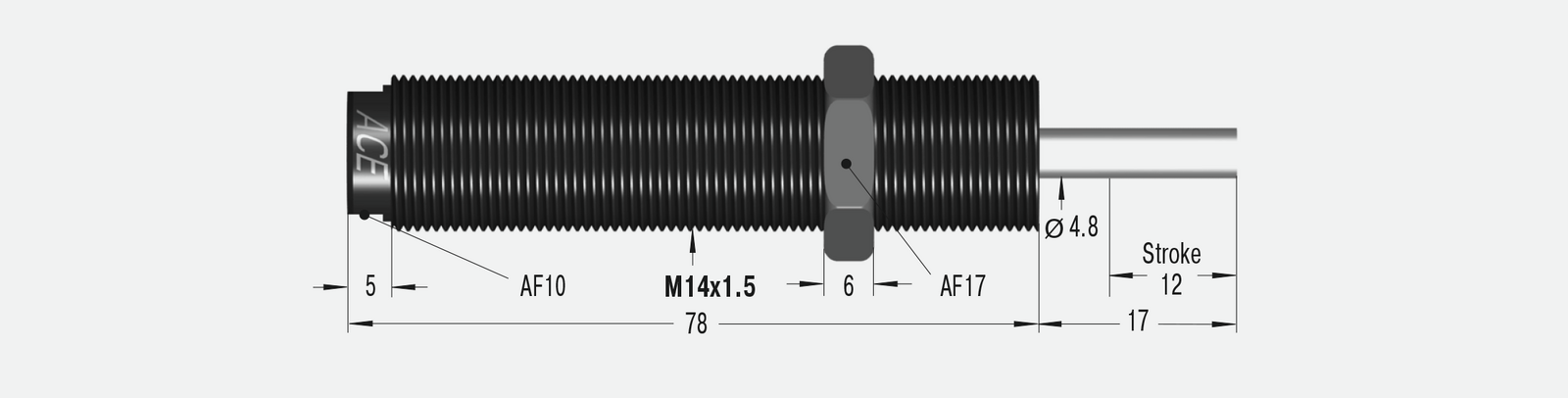

ACE Miniature Shock Absorber self-compensating
Piston tube design for maximum energy absorption
- Code: SC190EUM-7
- Description: Piston tube design for maximum energy absorption
- Part no.: SC190EUM-7
- Max. Energy Capacity at continuous operation: 31
- Max. Energy Capacity at emergency stop: 50000
- Effective Weight me: 136, 1550
- Min. Return Force: 19, 6
- Rod Reset Time: 0.4
- Max. Side Load Angle: 2
- Weight: 0.060
- Max. stroke: 12.0
- Stroke: 0

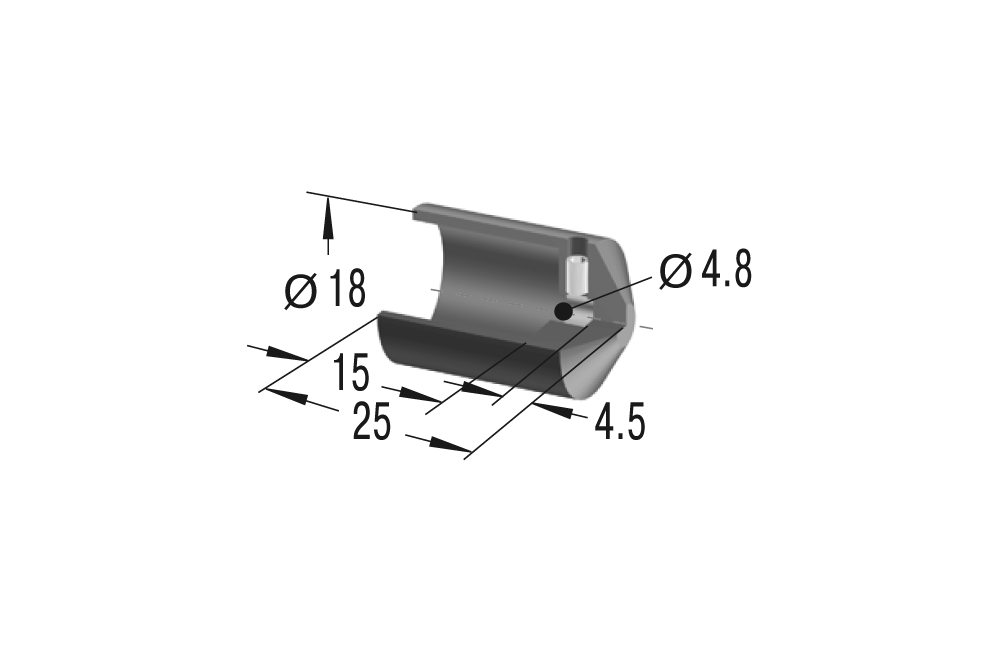

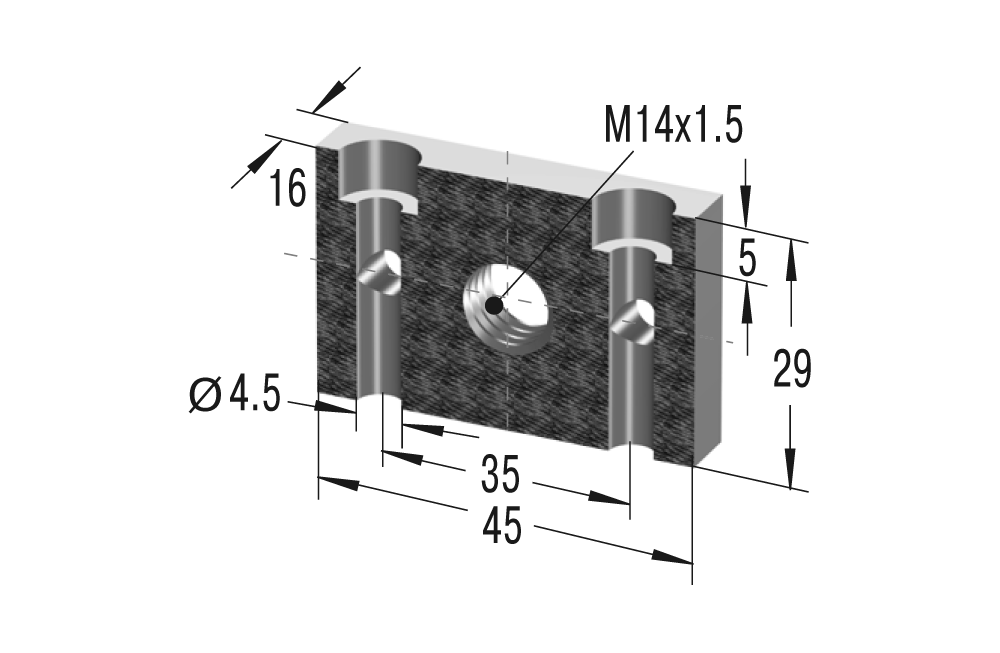

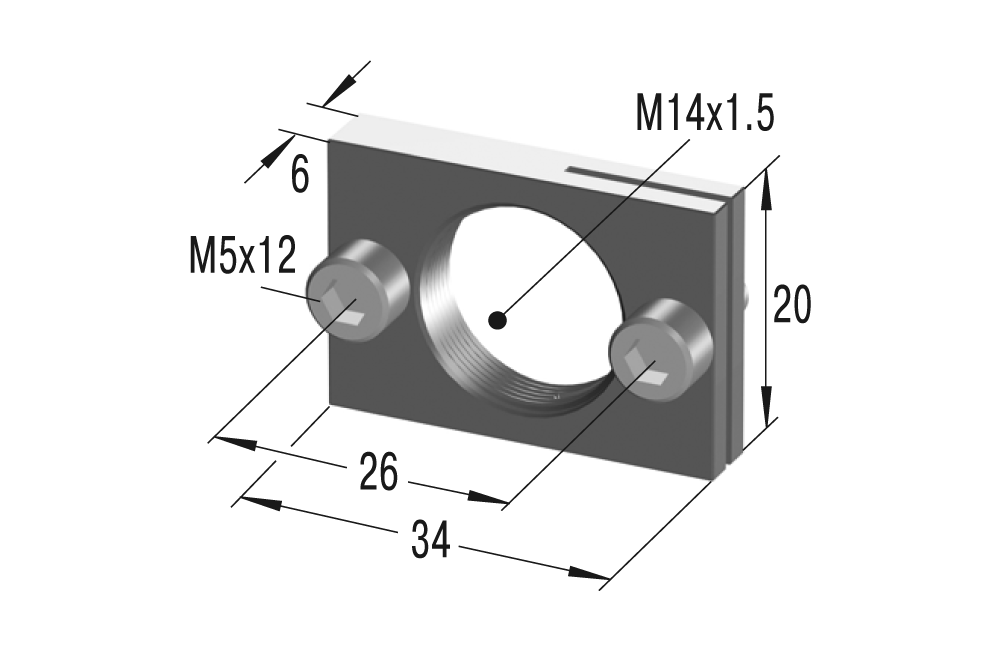

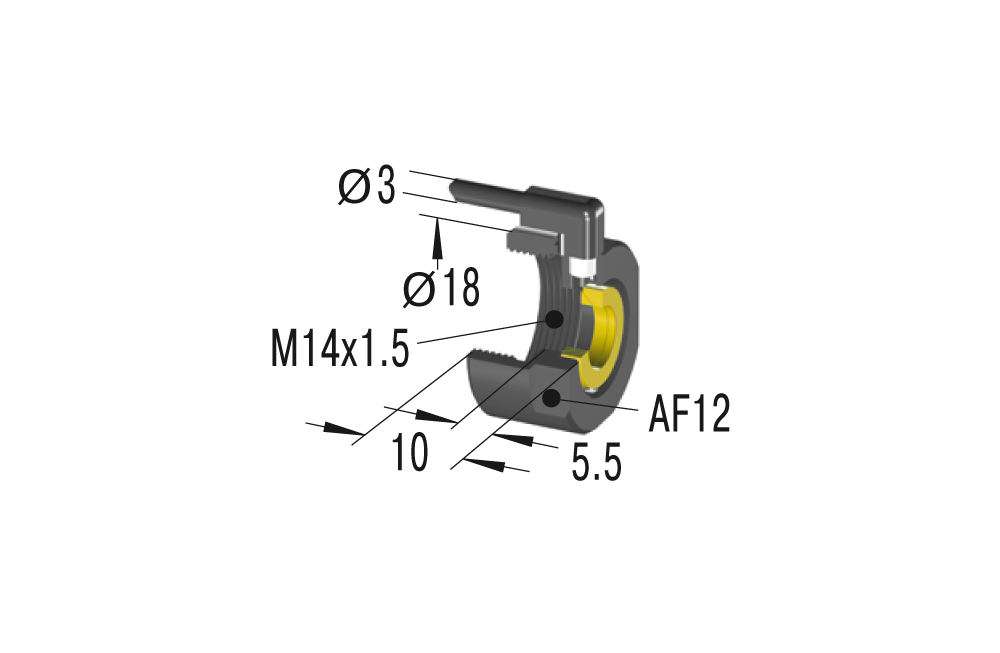

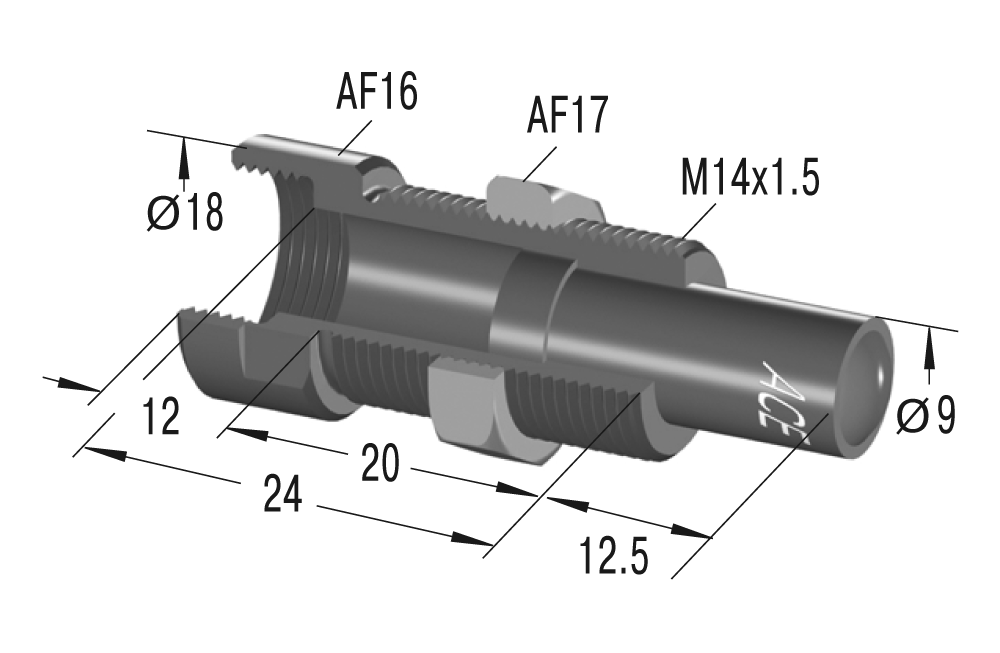

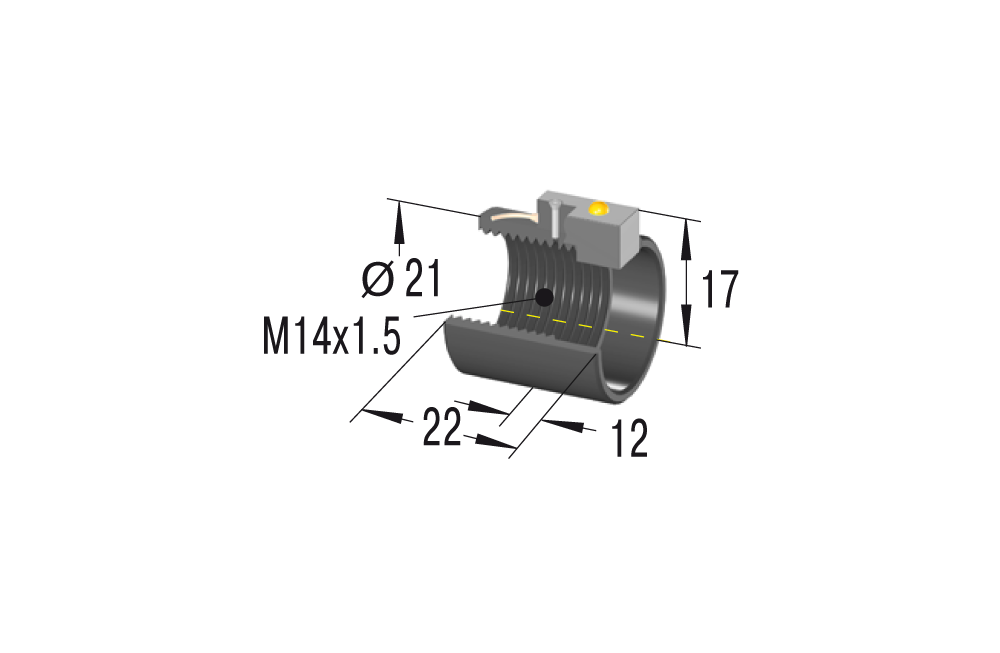

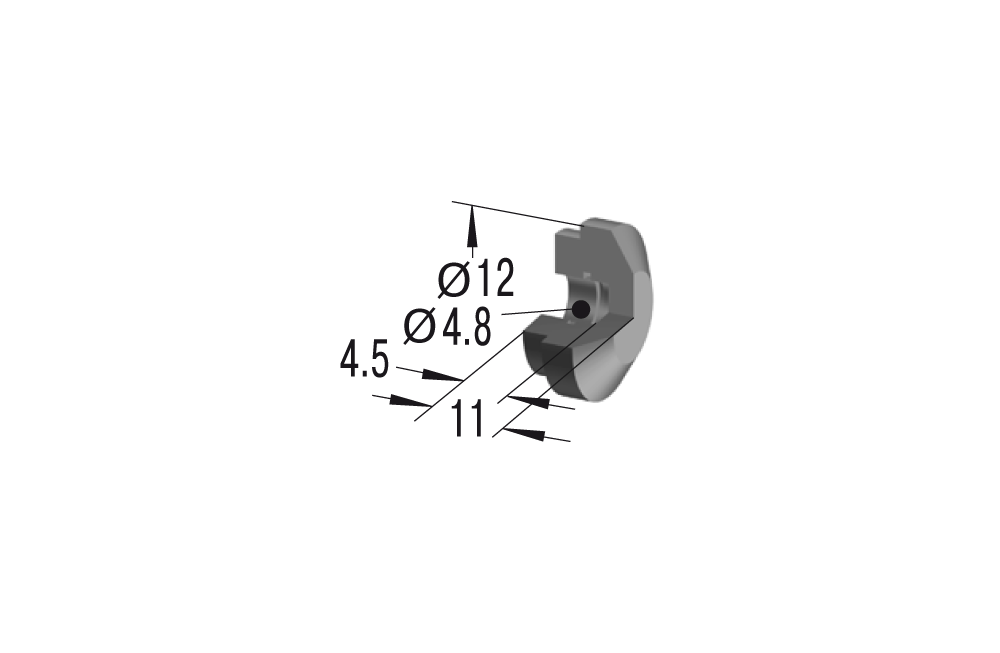

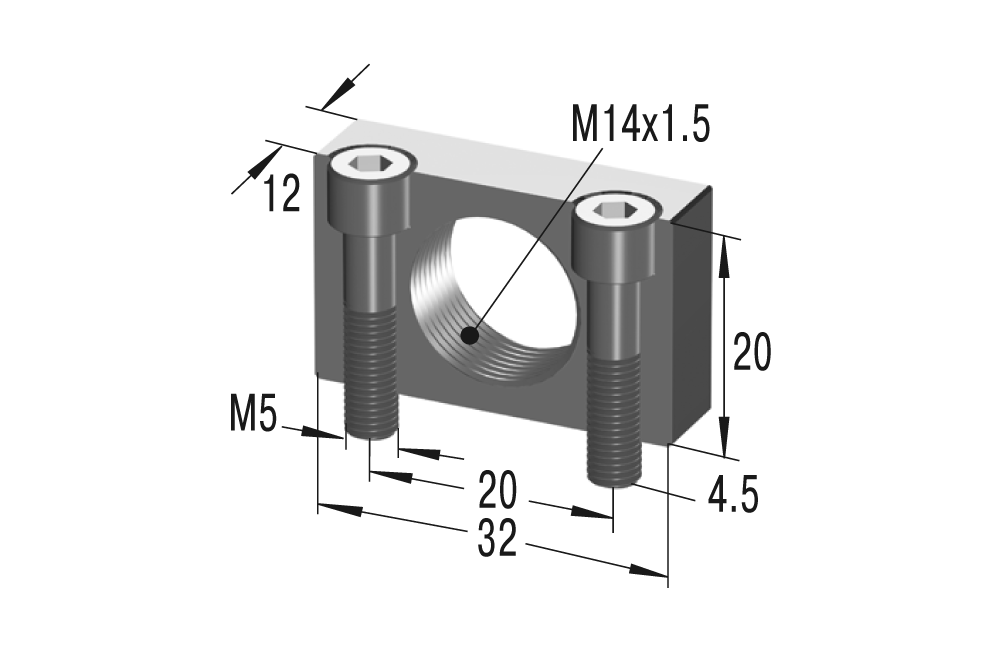

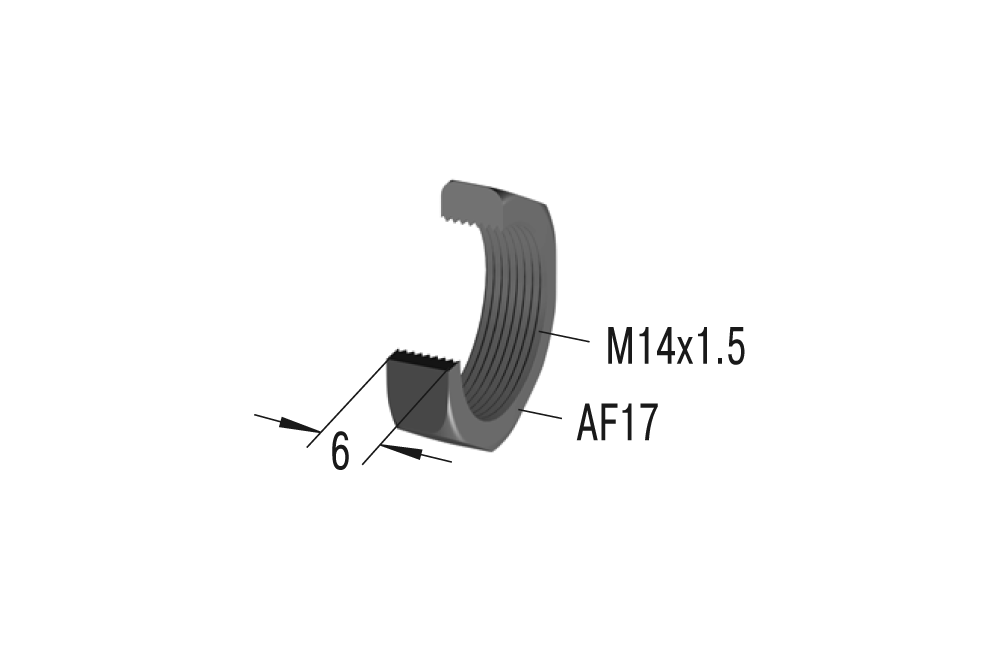

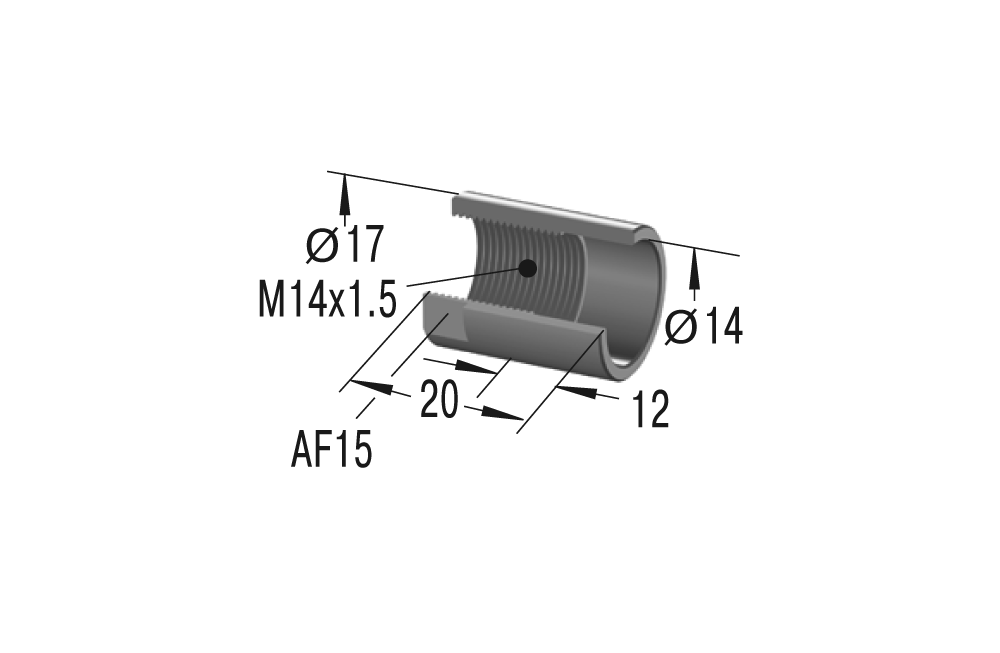

- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt
