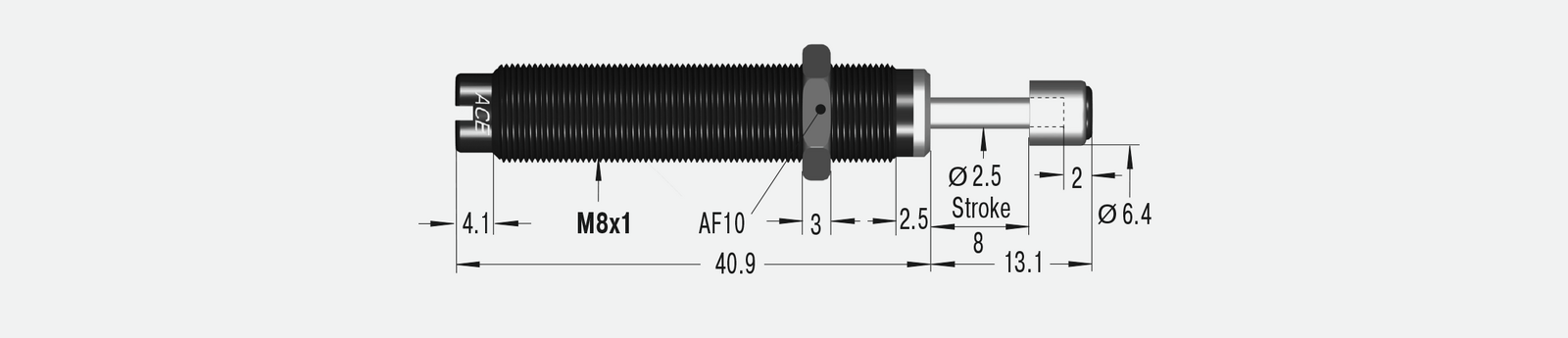

ACE Miniature Shock Absorber self-compensating
Shock absorbers in miniature format
- Code: MC30EUM-1
- Description: Shock absorbers in miniature format
- Part no.: MC30EUM-1
- Max. Energy Capacity at continuous operation: 3.5
- Max. Energy Capacity at emergency stop: 5600
- Effective Weight me - Soft-Contact: 0.4, 1.9
- Min. Return Force: 2, 6
- Rod Reset Time: 0.3
- Max. Side Load Angle: 2
- Weight: 0.010
- Max. stroke: 8.0
- Stroke: 0

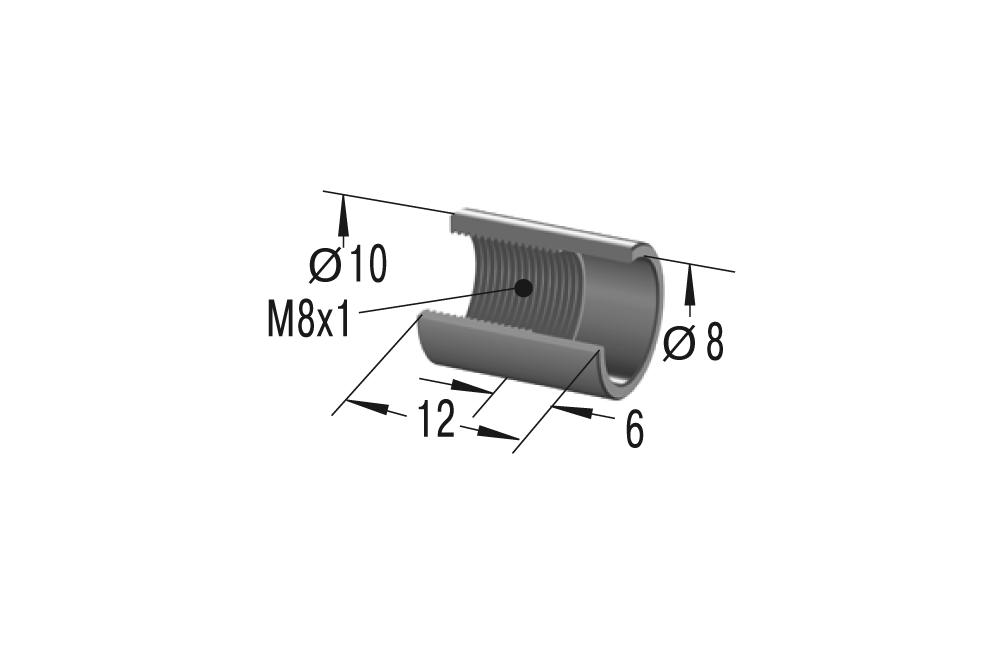

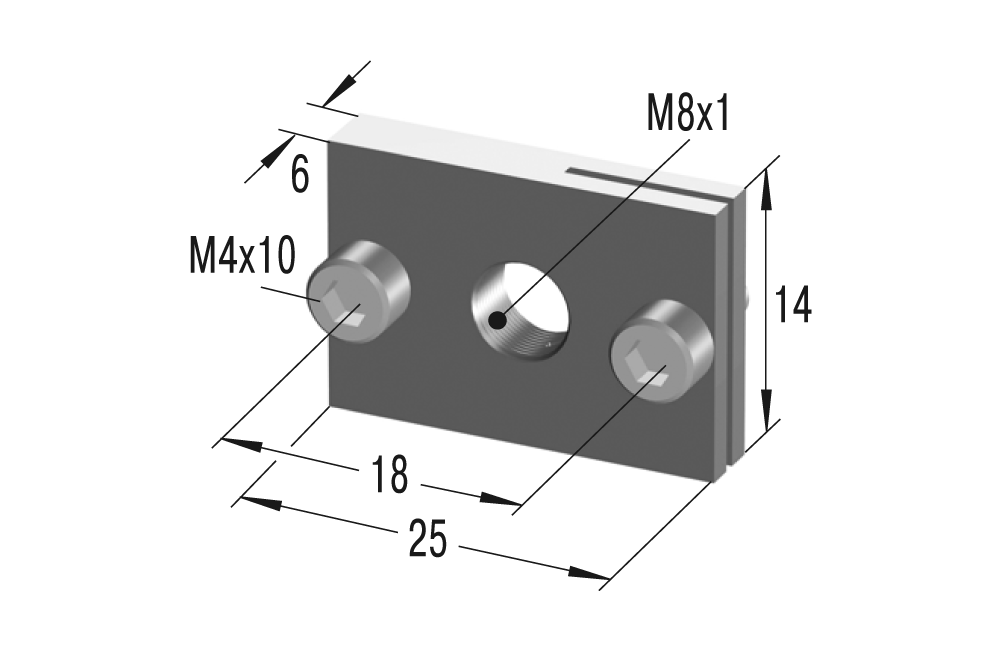

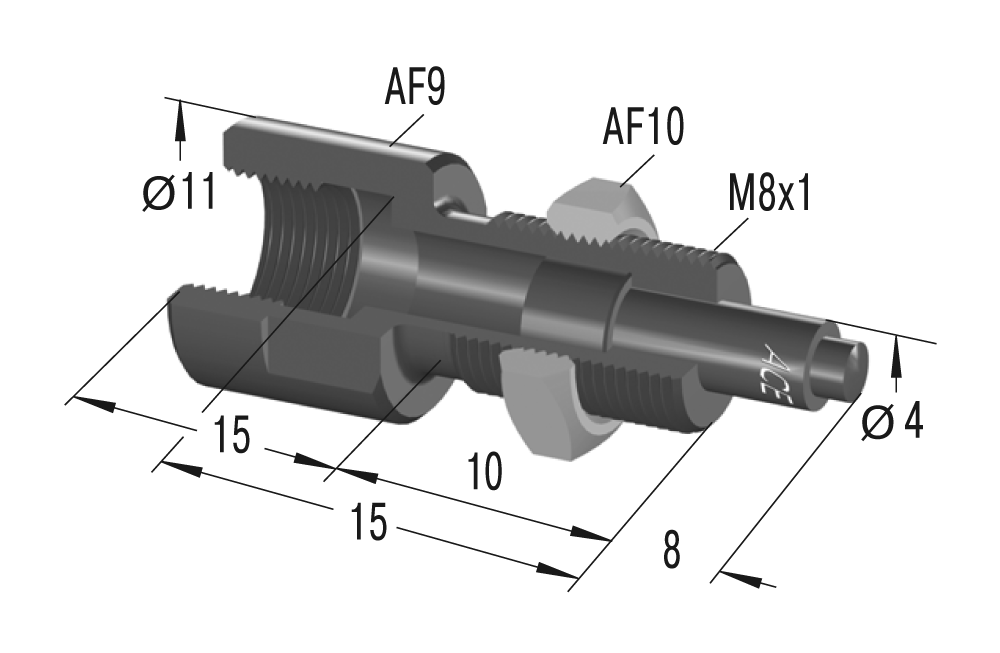

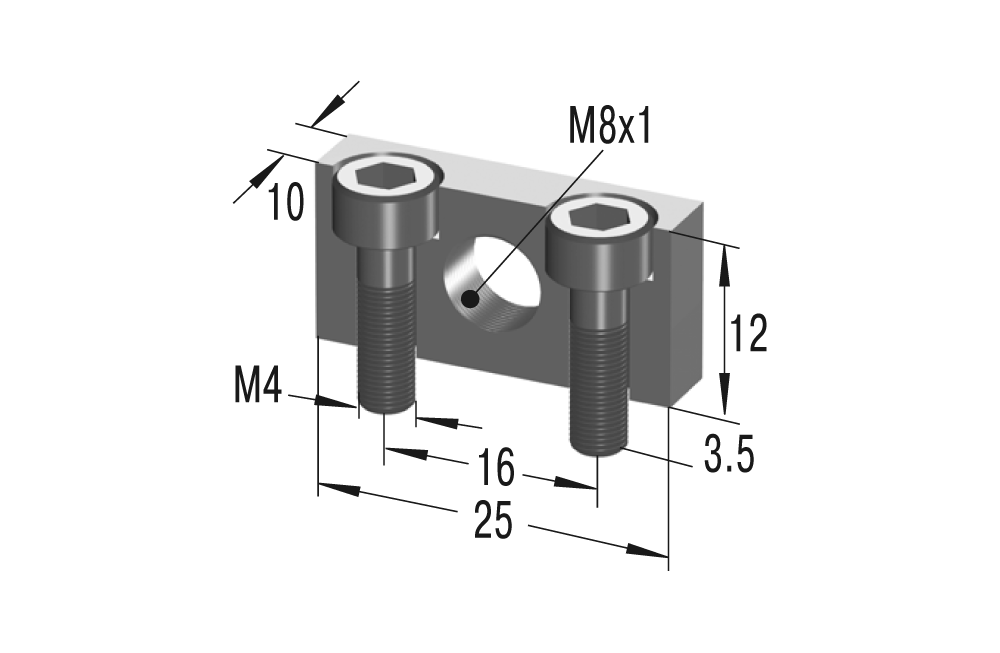

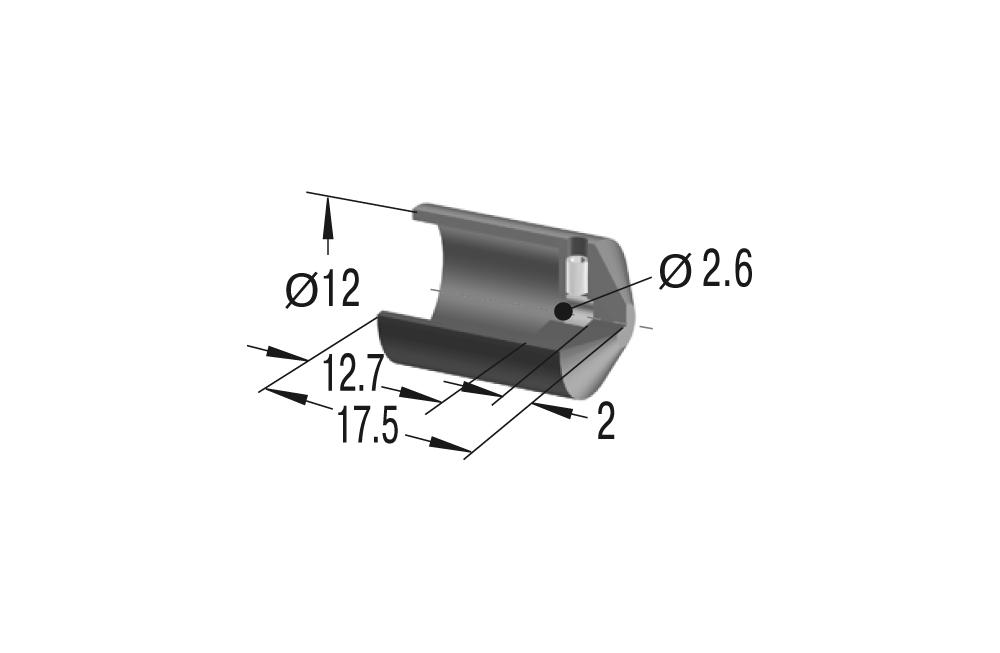

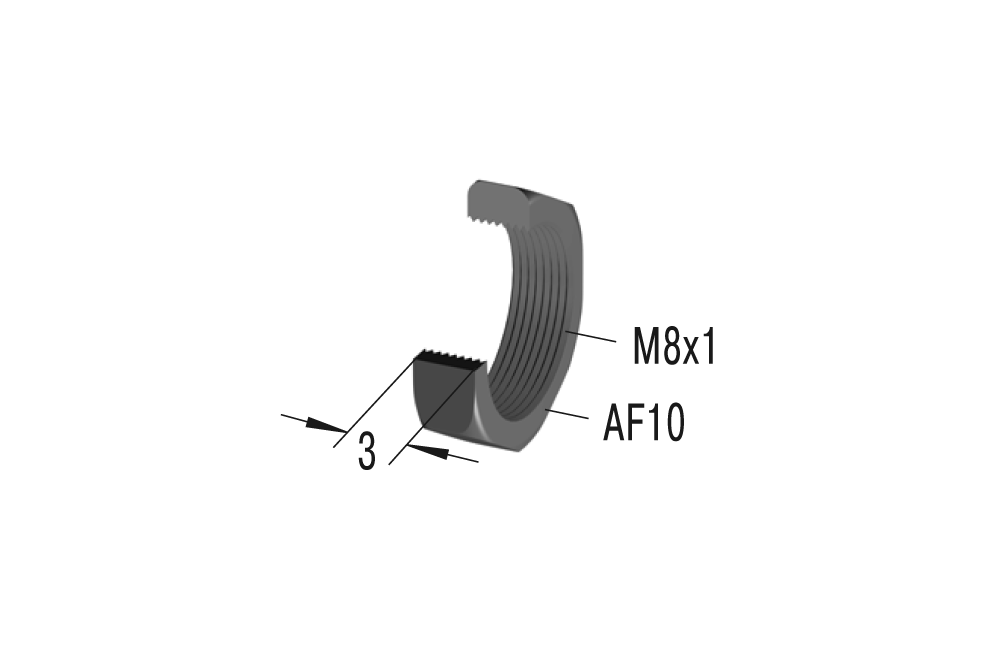

- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt
Cad 3D
