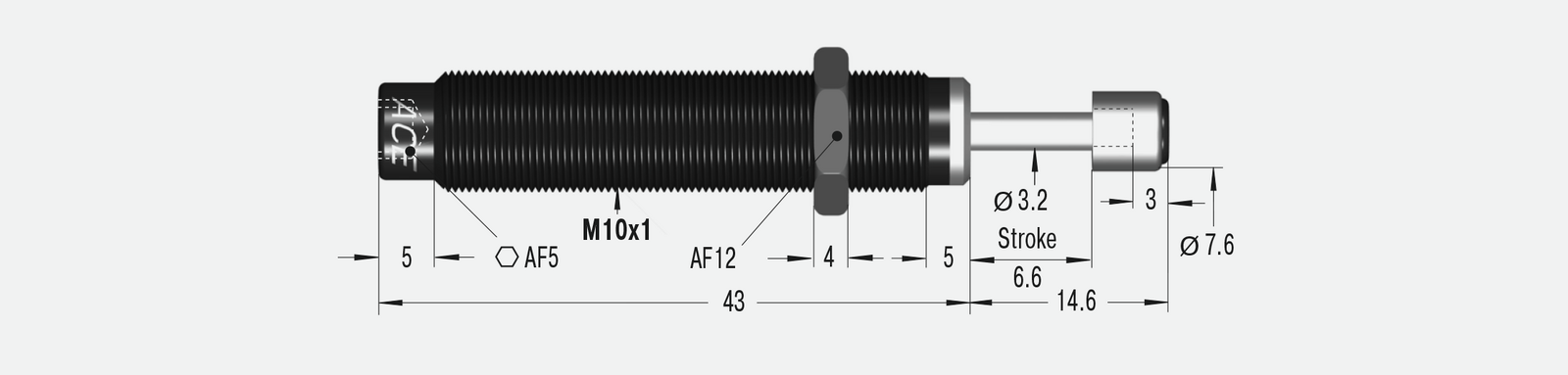

ACE Miniature Shock Absorber self-compensating
Shock absorbers in miniature format
- Code: MC25EUML
- Description: Shock absorbers in miniature format
- Part no.: MC25EUML
- Max. Energy Capacity at continuous operation: 2.8
- Max. Energy Capacity at emergency stop: 22600
- Effective Weight me - Soft-Contact: 0.7, 2.2
- Min. Return Force: 3, 6
- Rod Reset Time: 0.3
- Max. Side Load Angle: 2
- Weight: 0.020
- Max. stroke: 6.6
- Stroke: 0

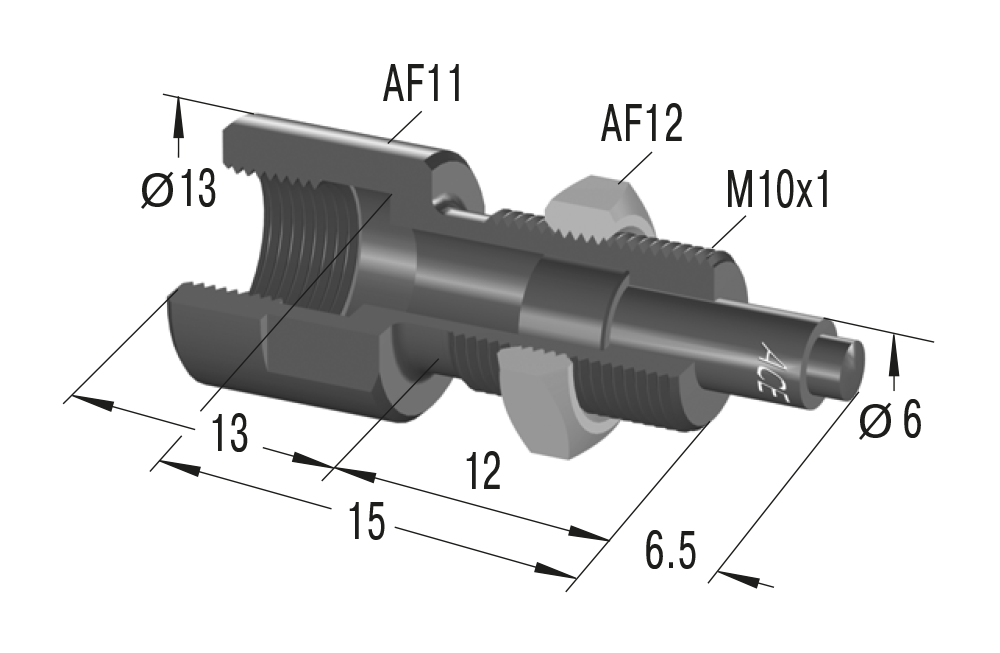

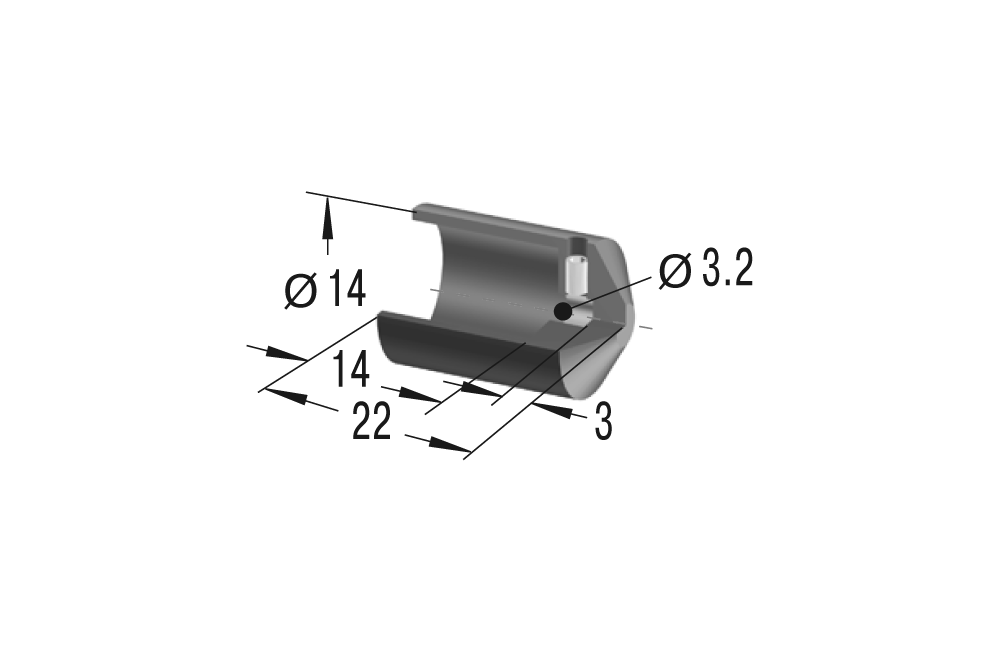

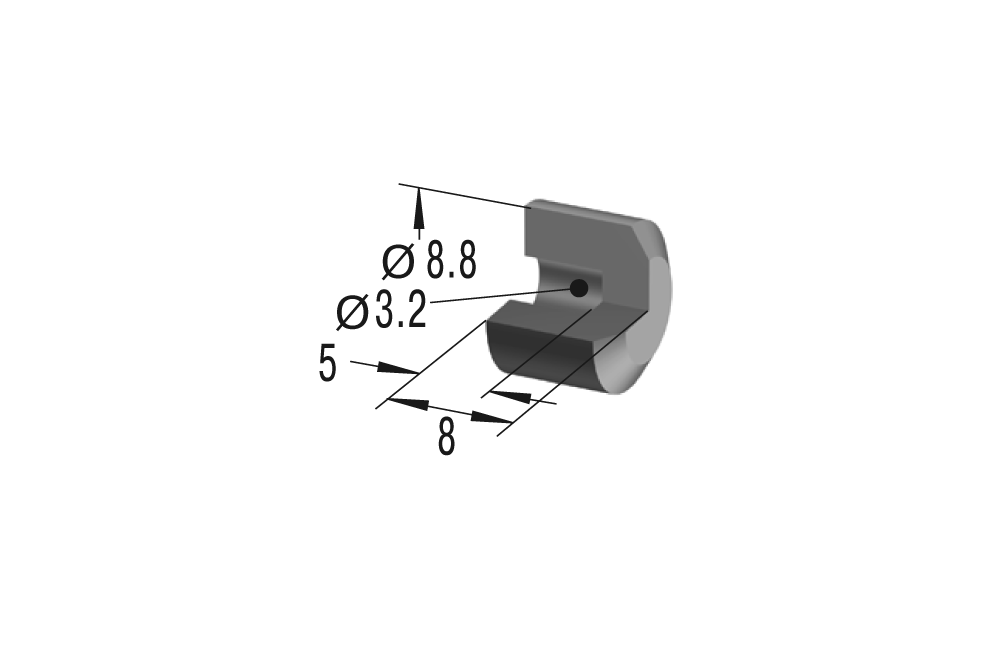

- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt
Cad 3D
