ACE Miniature Shock Absorber self-compensating = A40
Shock absorbers in miniature format
- Code: MC9EUM-1-B
- Description: Shock absorbers in miniature format
- Part no.: MC9EUM-1-B
- Max. Energy Capacity at continuous operation: 1
- Max. Energy Capacity at emergency stop: 2000
- Effective Weight me - Soft-Contact: 0.6, 3.2
- Min. Return Force: 2, 4
- Rod Reset Time: 0.3
- Max. Side Load Angle: 2
- Weight: 0.005
- Max. stroke: 5.0
- Stroke: 0

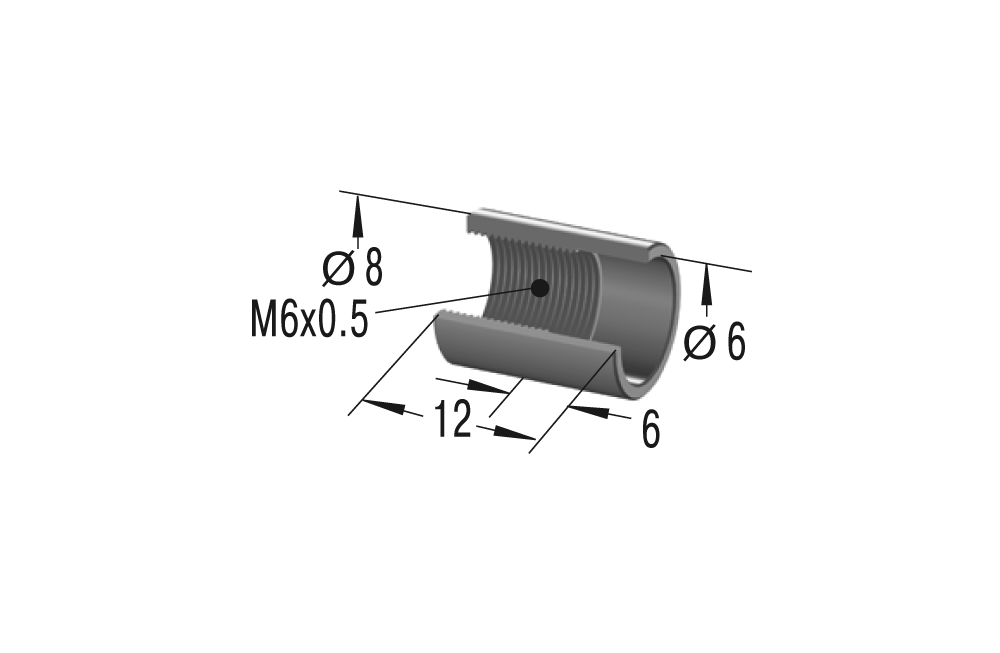

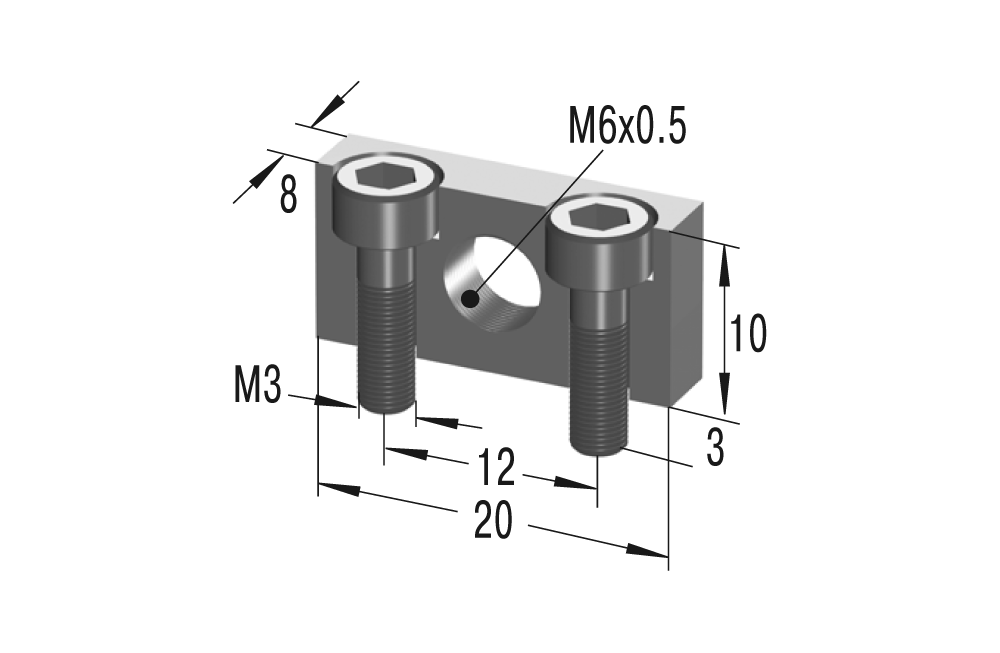

- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt

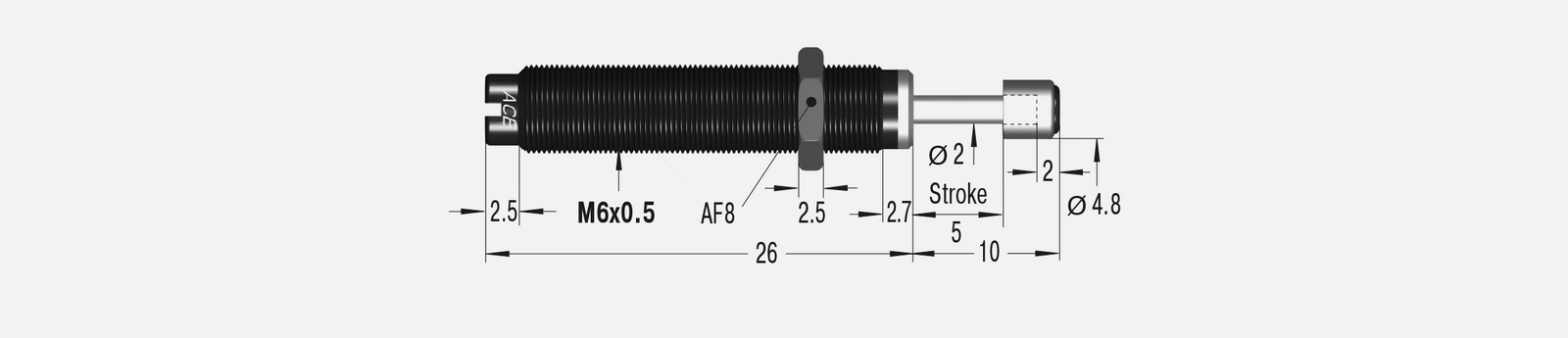

Cad 3D
