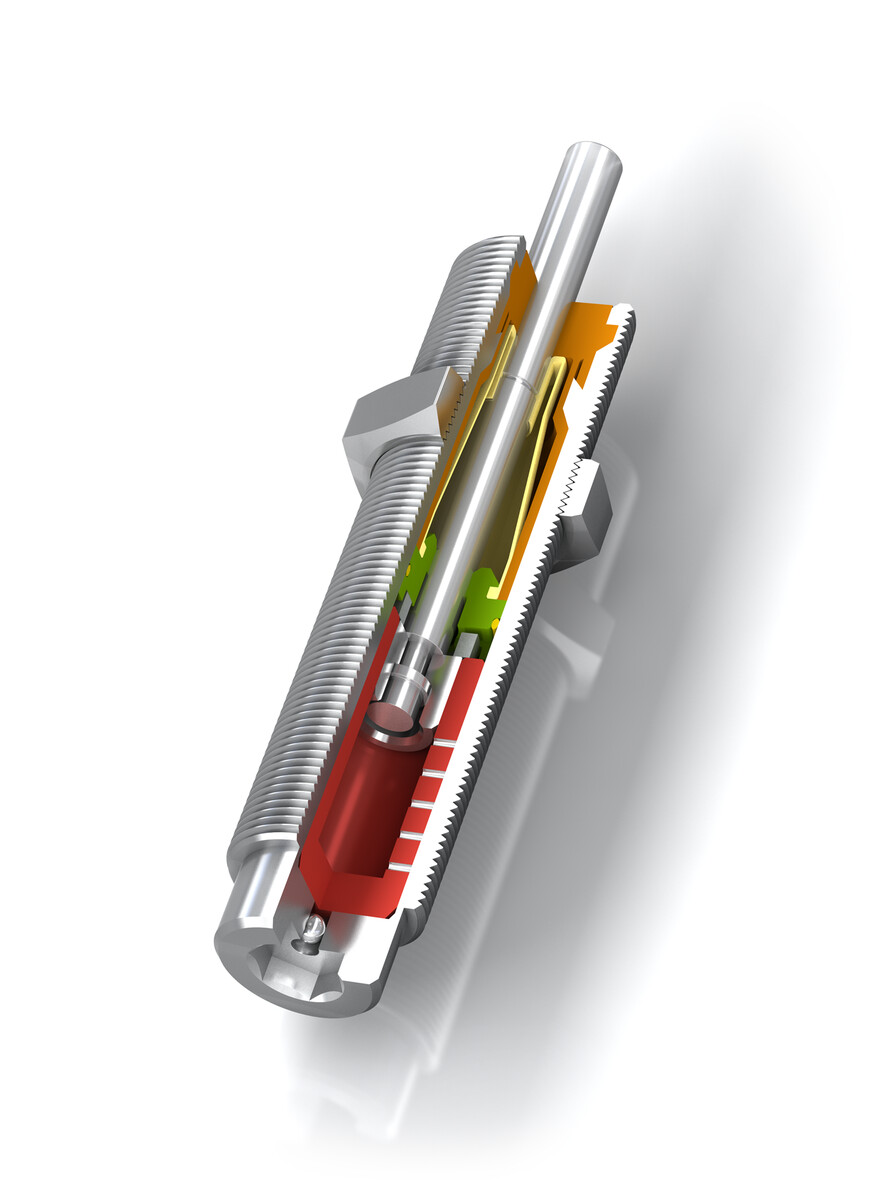

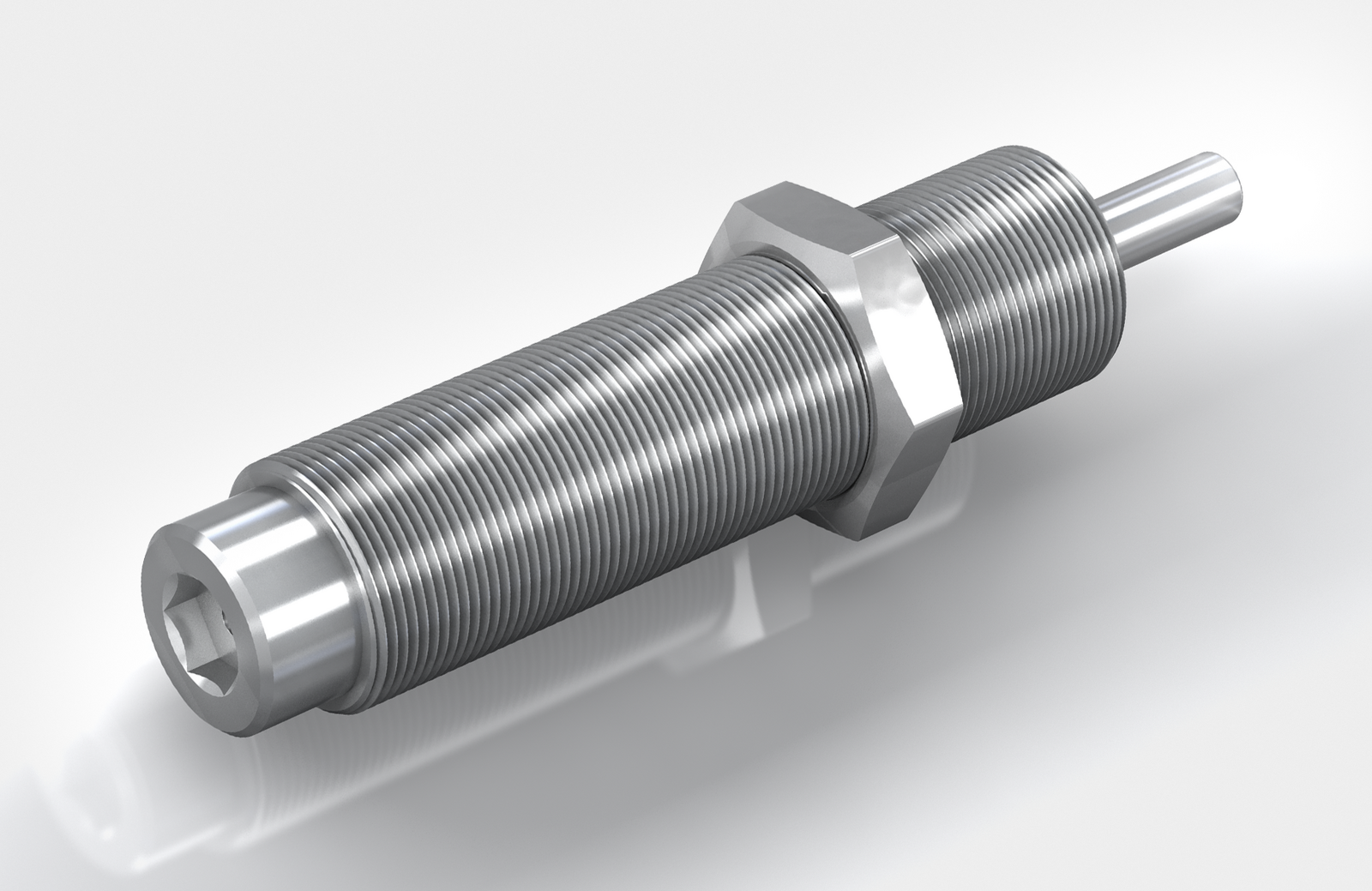

ACE Miniature Shock Absorber self-compensating, stainless st
Exceptionally high endurance with stainless steel corrosion protection
- Code: MC150EUMH2-V4A
- Description: Exceptionally high endurance with stainless steel corrosion protection
- Part no.: MC150EUMH2-V4A
- Max. Energy Capacity at continuous operation: 20
- Max. Energy Capacity at emergency stop: 34000
- Effective Weight me - Soft-Contact: 200, 70
- Min. Return Force: 3, 5
- Rod Reset Time: 0.4
- Max. Side Load Angle: 4
- Weight: 0.06
- Max. stroke: 12.5
- Stroke: 0.00

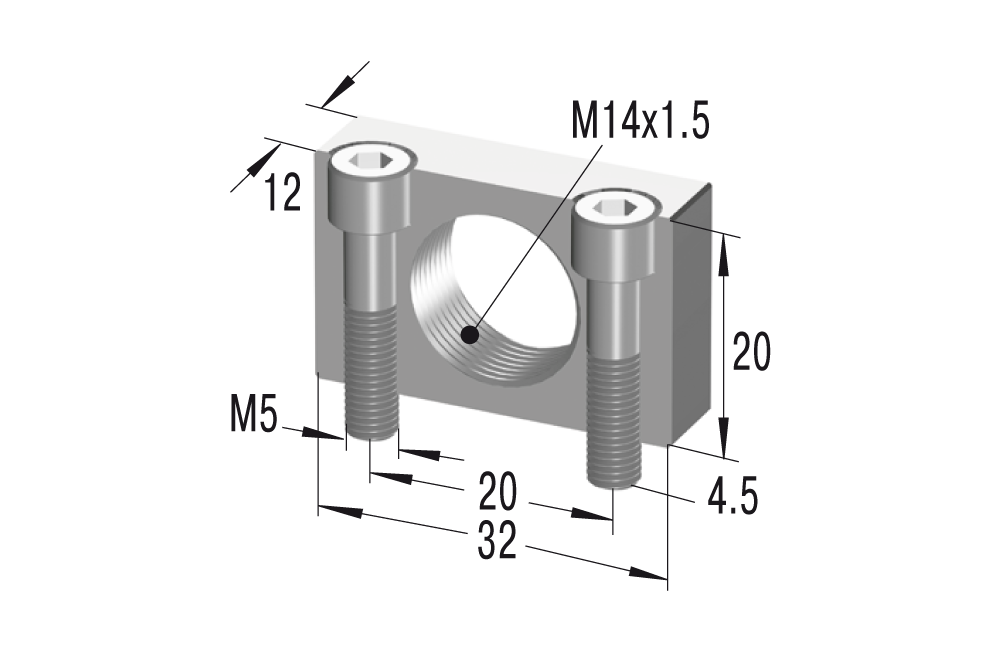

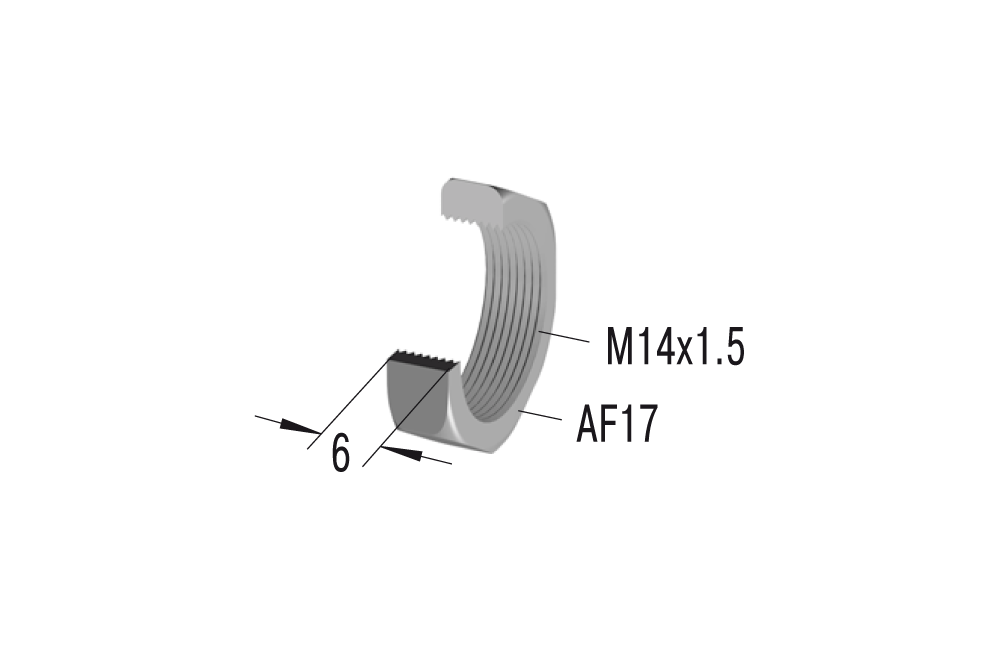

- Attachment Parts: Standard
- Product Specification: Datenblatt

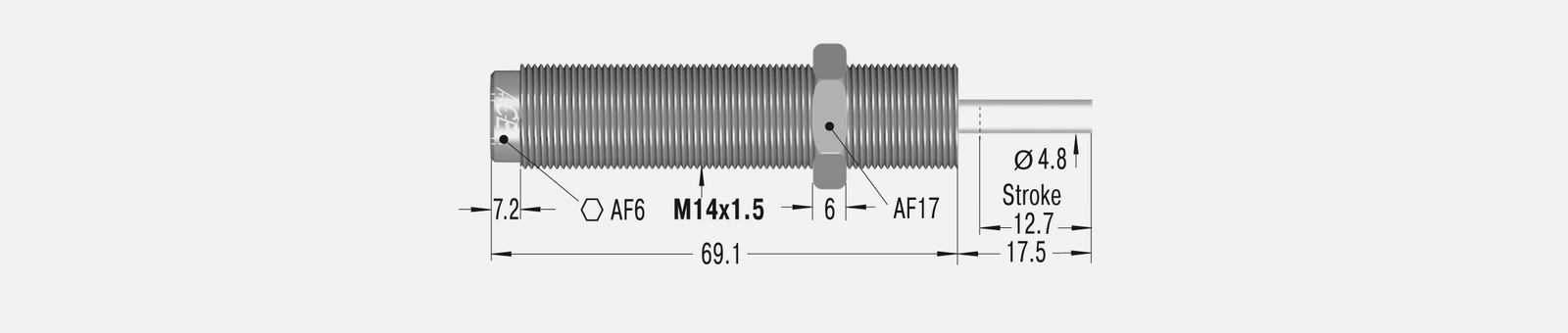

Cad 3D
