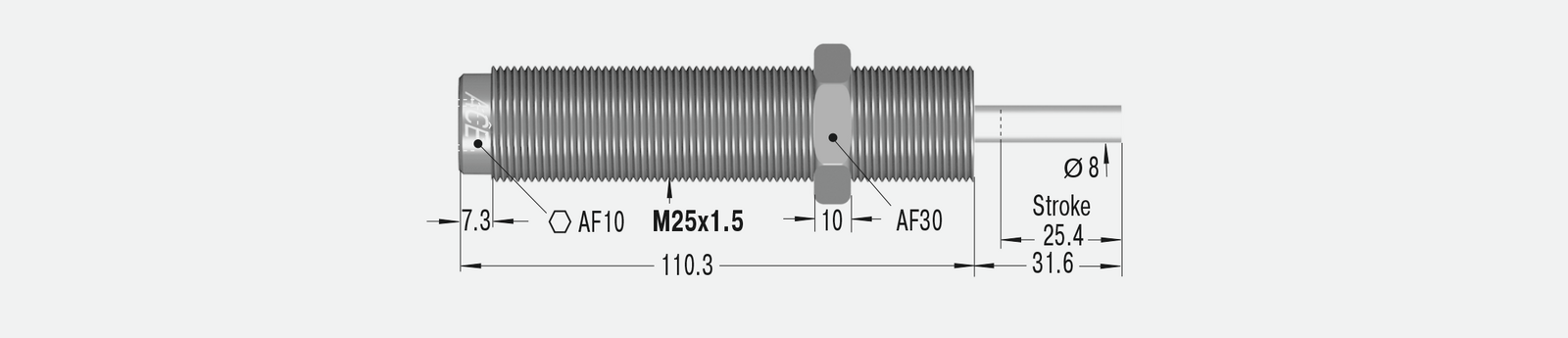

ACE Miniature Shock Absorber self-compensating, stainless st
Exceptionally high endurance with stainless steel corrosion protection
- Code: MC600EUM-V4A
- Description: Exceptionally high endurance with stainless steel corrosion protection
- Part no.: MC600EUM-V4A
- Max. Energy Capacity at continuous operation: 136
- Max. Energy Capacity at emergency stop: 68000
- Effective Weight me - Soft-Contact: 136, 9
- Min. Return Force: 5, 9
- Rod Reset Time: 0.6
- Max. Side Load Angle: 2
- Weight: 0.26
- Max. stroke: 25.4
- Stroke: 0.00

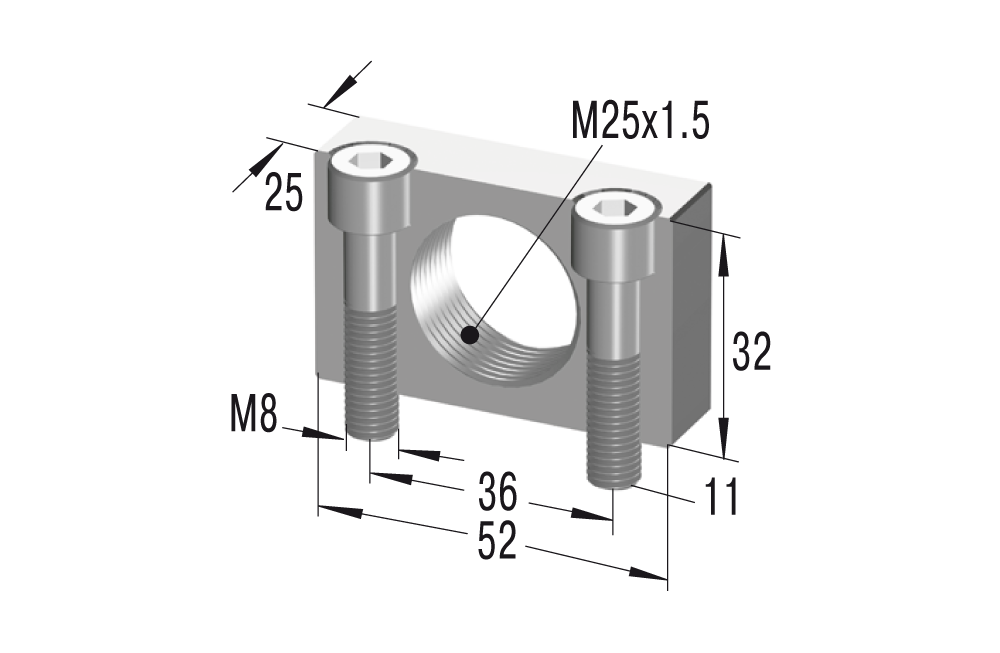

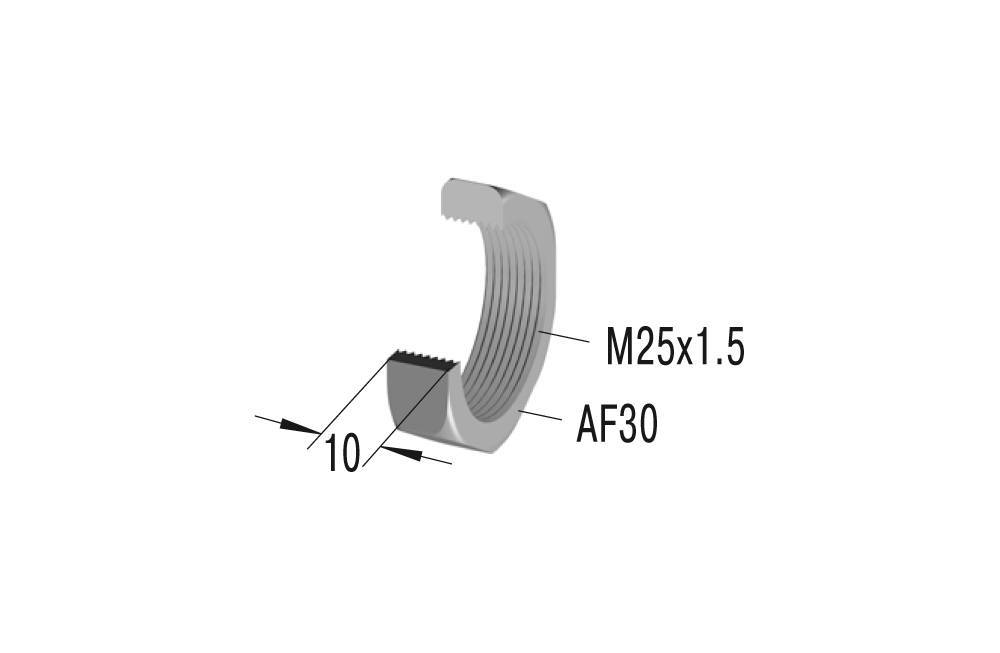

- Attachment Parts: Standard
- Product Specification: Datenblatt
Cad 3D
