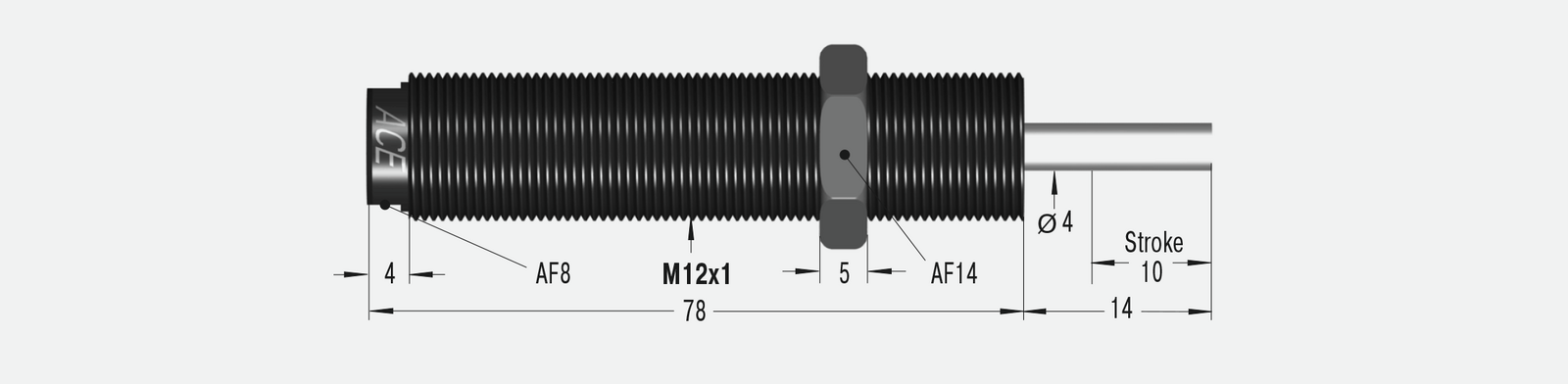

ACE Miniature Shock Absorber self-compensating
Piston tube design for maximum energy absorption
- Code: SC75EUM-7
- Description: Piston tube design for maximum energy absorption
- Part no.: SC75EUM-7
- Max. Energy Capacity at continuous operation: 16
- Max. Energy Capacity at emergency stop: 30000
- Effective Weight me: 75, 800
- Min. Return Force: 19, 6
- Rod Reset Time: 0.3
- Max. Side Load Angle: 2
- Weight: 0.045
- Max. stroke: 10.0
- Stroke: 0
- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt
