ACE Miniature Shock Absorber soft-cont. and self-compensatin

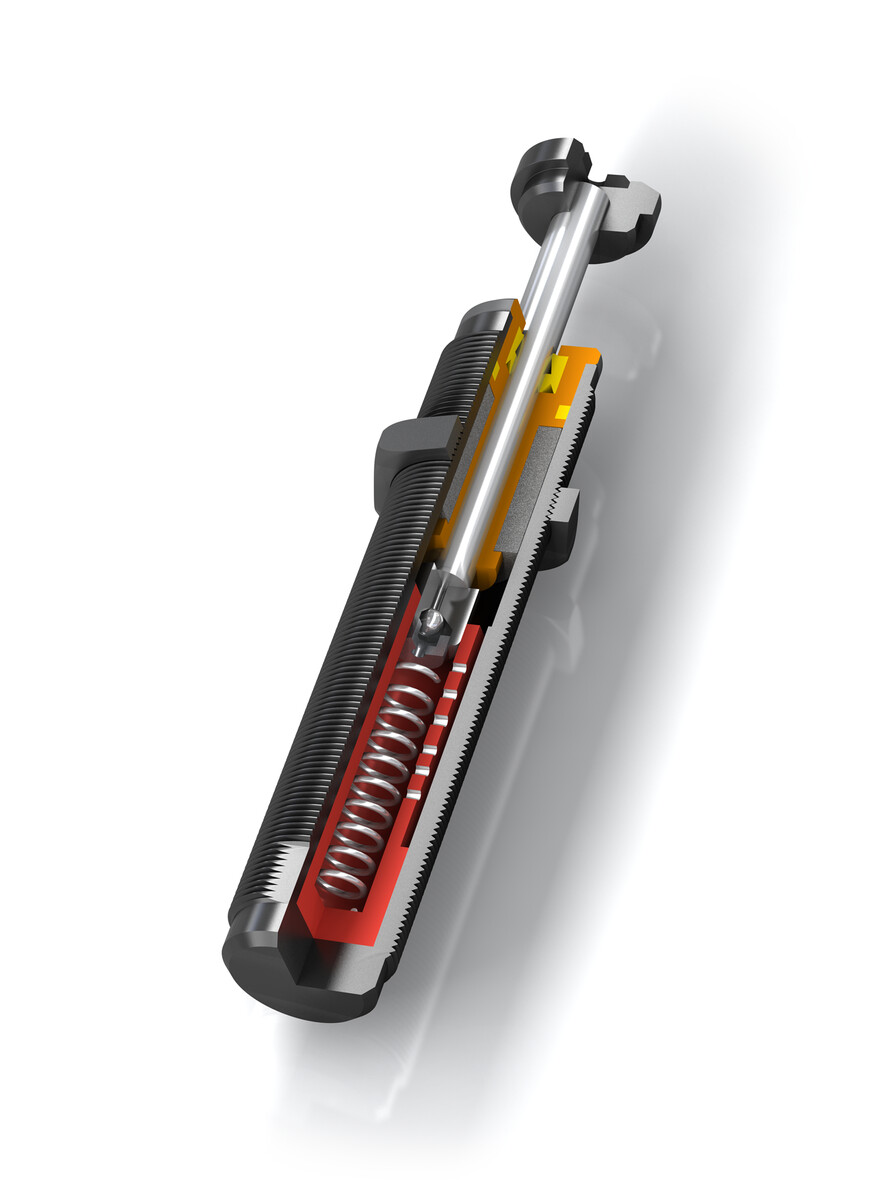

Piston tube design for maximum energy absorption
- Code: SC300EUM-3
- Description: Piston tube design for maximum energy absorption
- Part no.: SC300EUM-3
- Max. Energy Capacity at continuous operation: 33
- Max. Energy Capacity at emergency stop: 45000
- Effective Weight me - Soft-Contact: 14, 23, 68, 82
- Min. Return Force: 10, 5
- Rod Reset Time: 0.1
- Max. Side Load Angle: 5
- Weight: 0.11

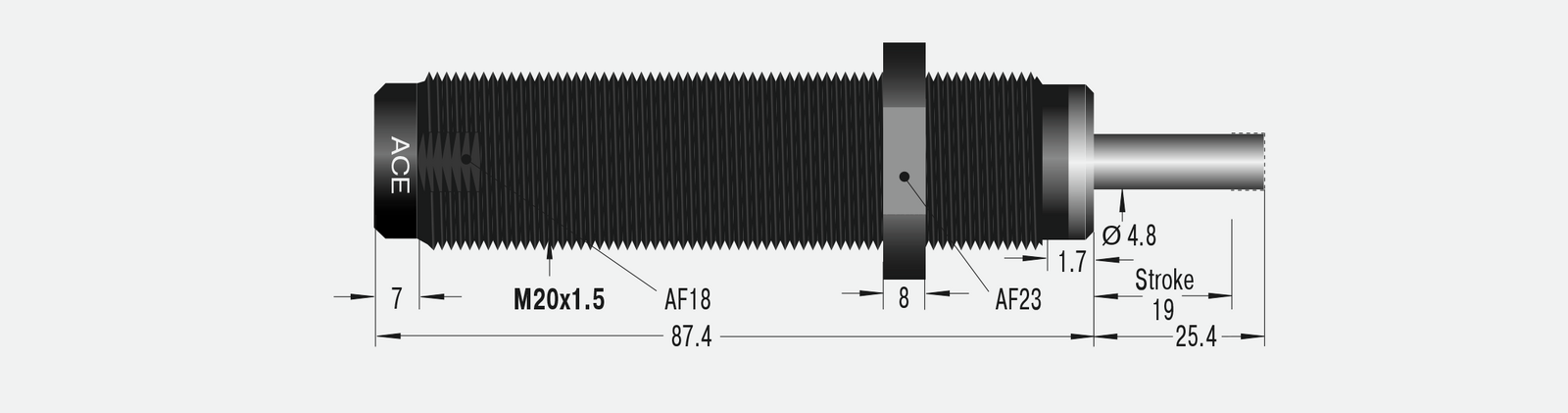

- Max. stroke: 19.0
- Spring preload: 0
- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt
Cad 3D
