ACE Miniature Shock Absorber soft contact and self-compensat
Piston tube design for maximum energy absorption

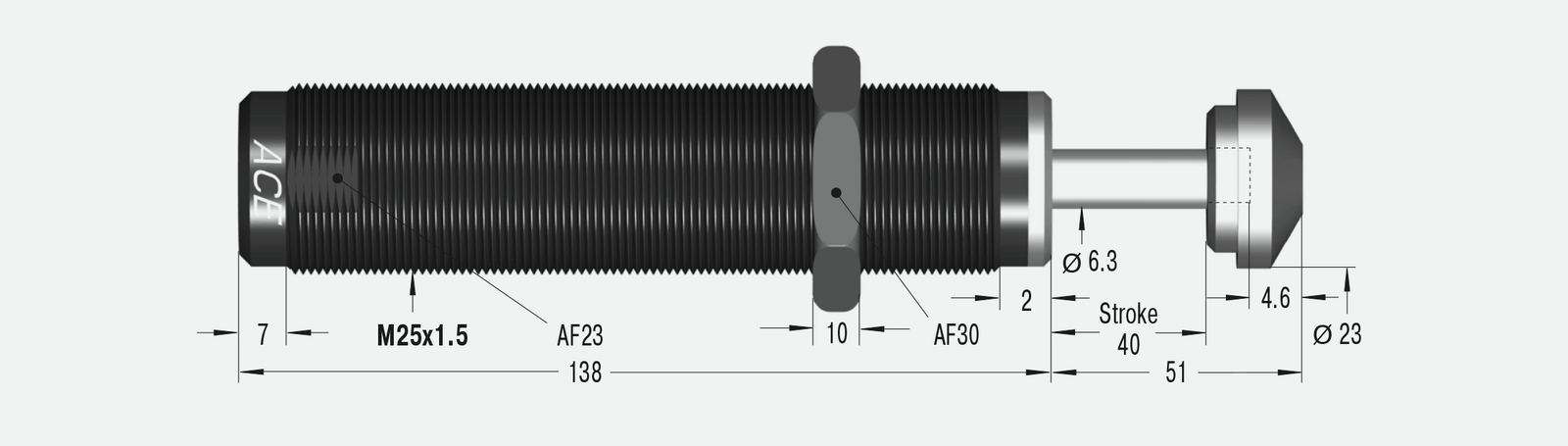

- Code: SC925EUM-4
- Description: Piston tube design for maximum energy absorption
- Part no.: SC925EUM-4
- Max. Energy Capacity at continuous operation: 110
- Max. Energy Capacity at emergency stop: 90000
- Effective Weight me - Soft-Contact: 1952, 2088, 340, 544
- Min. Return Force: 11, 32
- Rod Reset Time: 0.4
- Max. Side Load Angle: 5
- Weight: 0.39
- Max. stroke: 40.0
- Spring preload: 0
- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt
