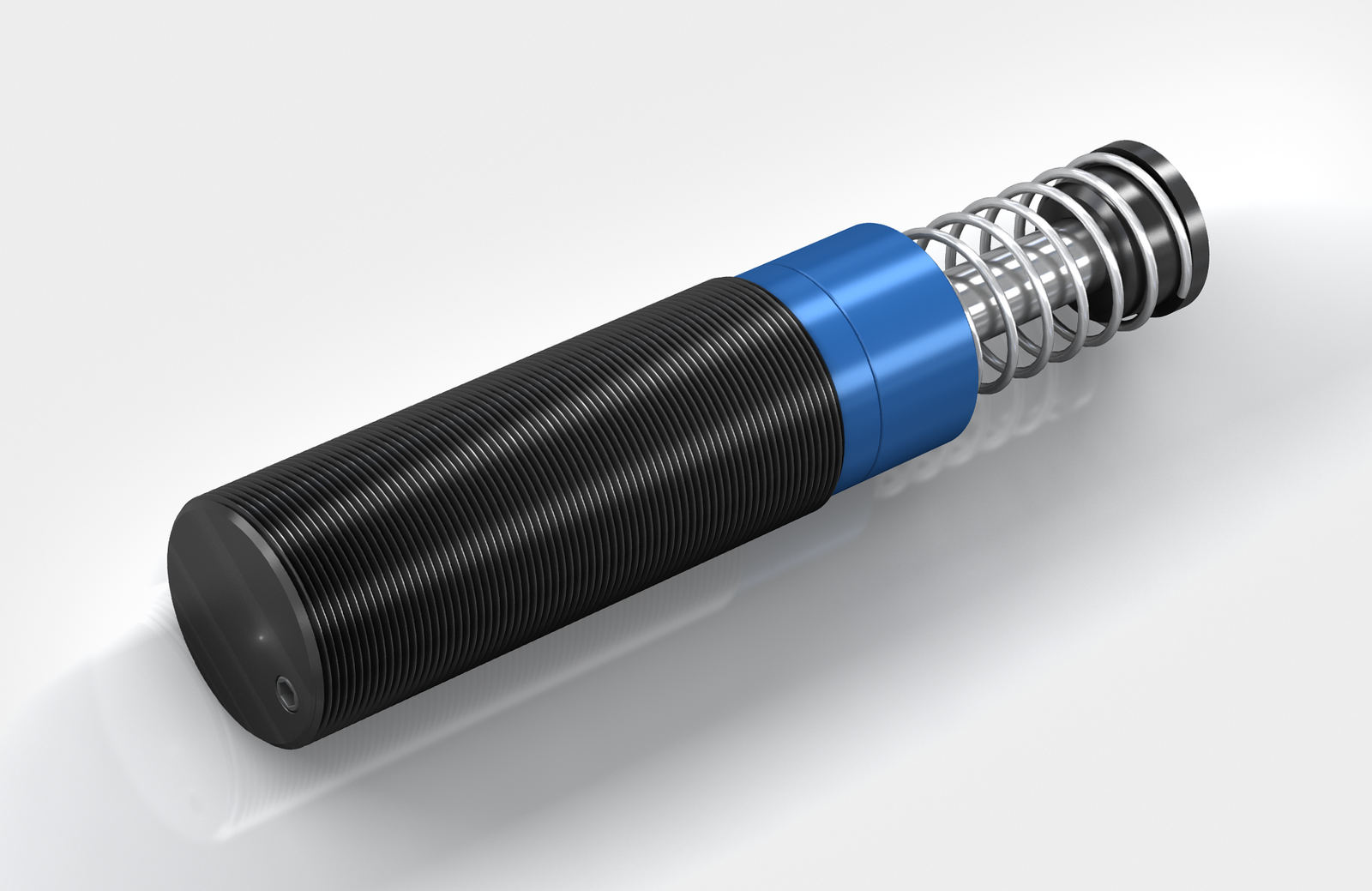

ACE Stacker Crane Shock Absorber
Industry design with high energy absorption
- Code: SCS64-150EU
- Description: Industry design with high energy absorption
- Max. stroke: 150.0
- Stroke: 150.00

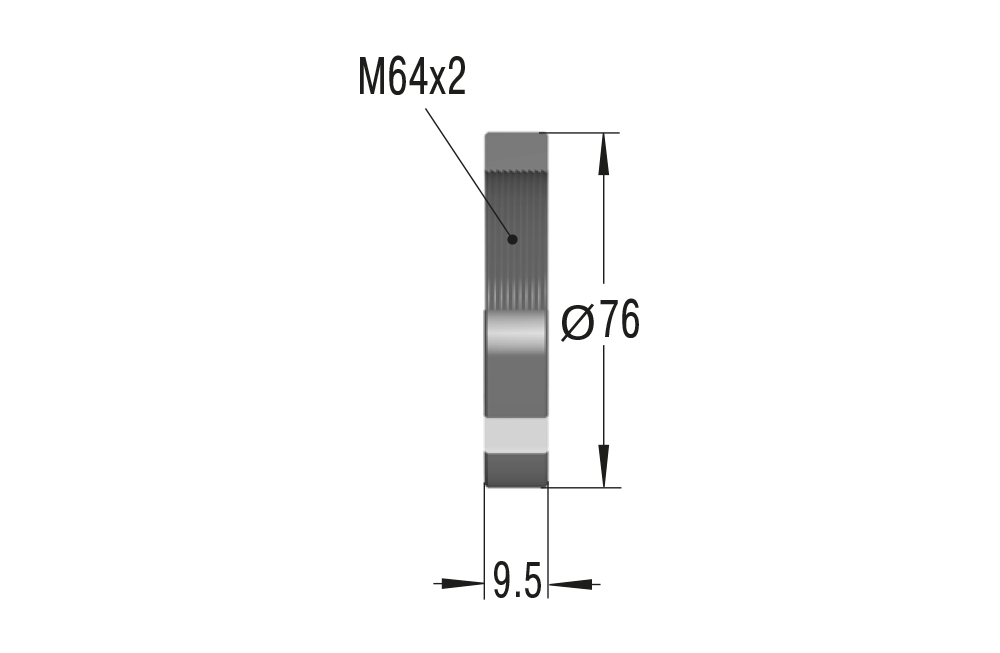

- Accessories: NM (Locking Ring)
- Max length (A): 450
- Length: 241
- Distance Side Foot Mounting Kit: 0.00
- Max length (D): 226
- Max. Energy Capacity Self-Compensating: 10200
- Max. Energy Capacity Optimised Version: 18000
- Min. Return Force: 75
- Max. Return Force: 365
- Max. Side Load Angle: 1
- Weight: 5.65
Cad 3D
