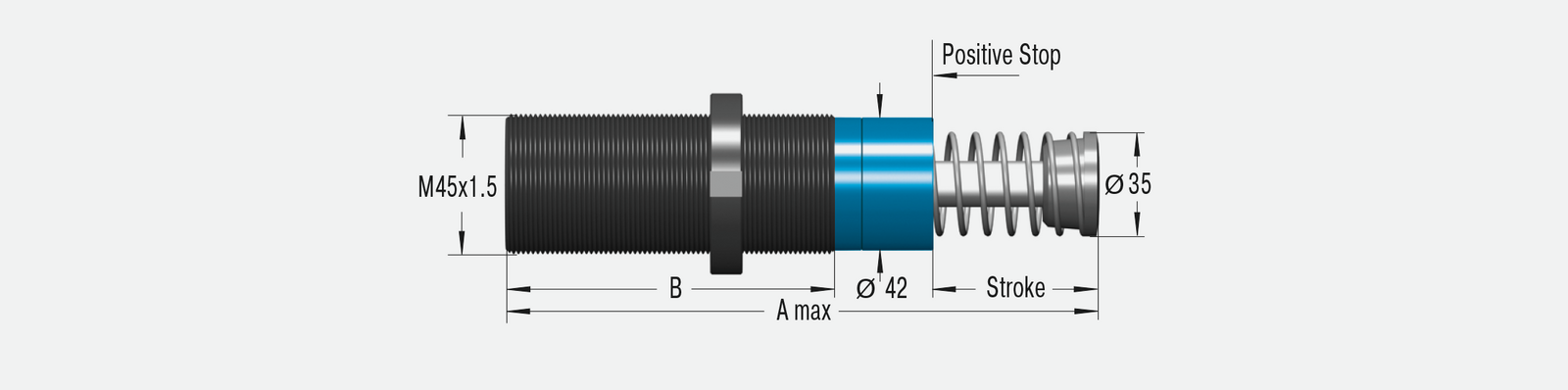

ACE Stacker Crane Shock Absorber
Industry design with high energy absorption
- Code: SCS45-50EU
- Description: Industry design with high energy absorption
- Max. stroke: 48.5
- Stroke: 48.50
- Accessories: NM (Locking Ring)
- Max length (A): 195
- Length: 120
- Distance Side Foot Mounting Kit: 0.00
- Max length (D): 91
- Max. Energy Capacity Self-Compensating: 1360
- Max. Energy Capacity Optimised Version: 2350
- Min. Return Force: 70
- Max. Return Force: 145
- Max. Side Load Angle: 2
- Weight: 1.36
Cad 3D
