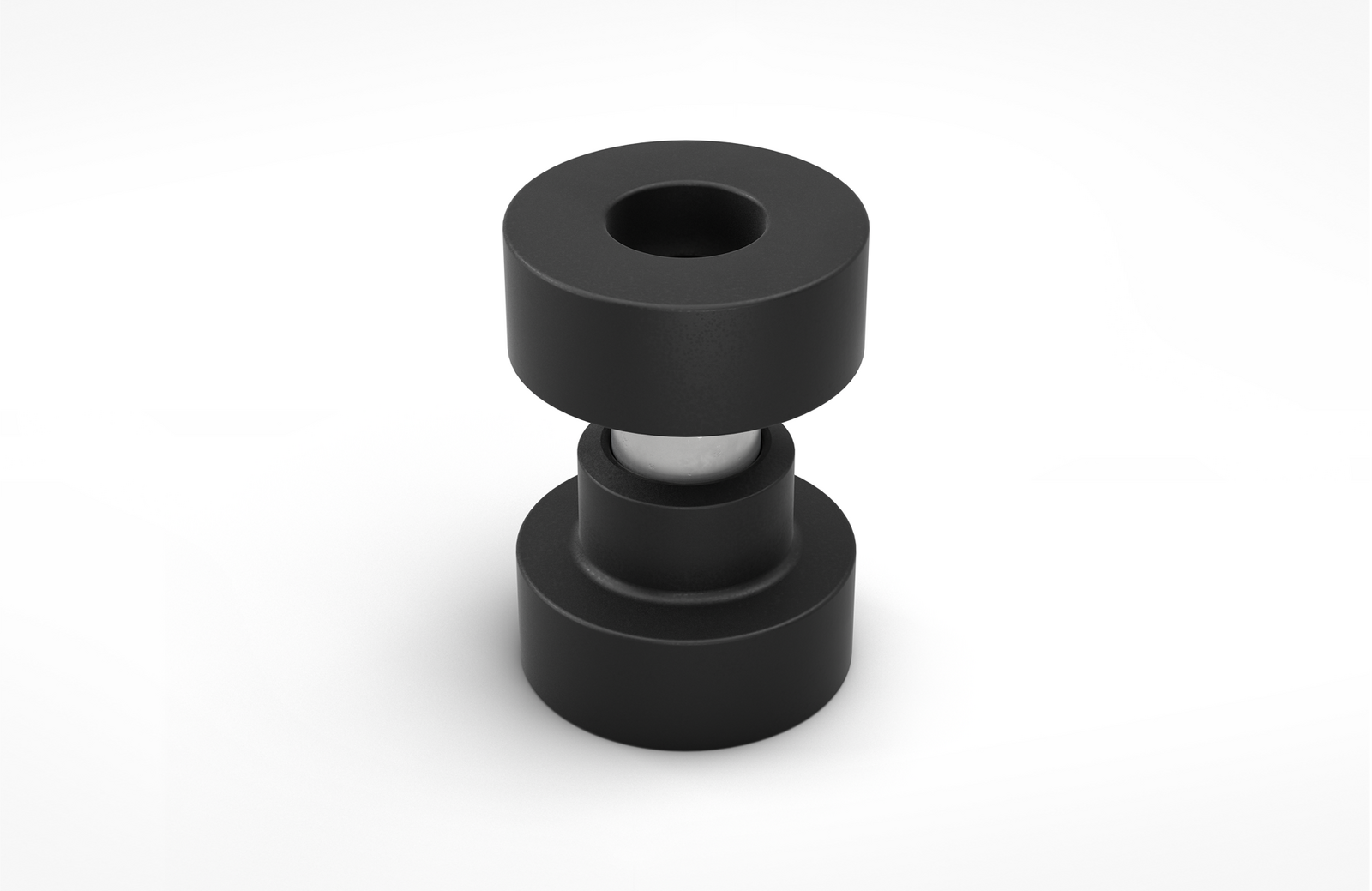

ACE UM Universal Mount red
Elastically mounted under dynamic loads
- Code: UMO-60042
- Description: Elastically mounted under dynamic loads
- Part no.: UMO-60042
- Color code: rot
- Shore (+5): 45
- Load with plate thickness G1 (axial): 100, 230
- Load with plate thickness G1 (radial): 100, 105
- fe: 10, 15

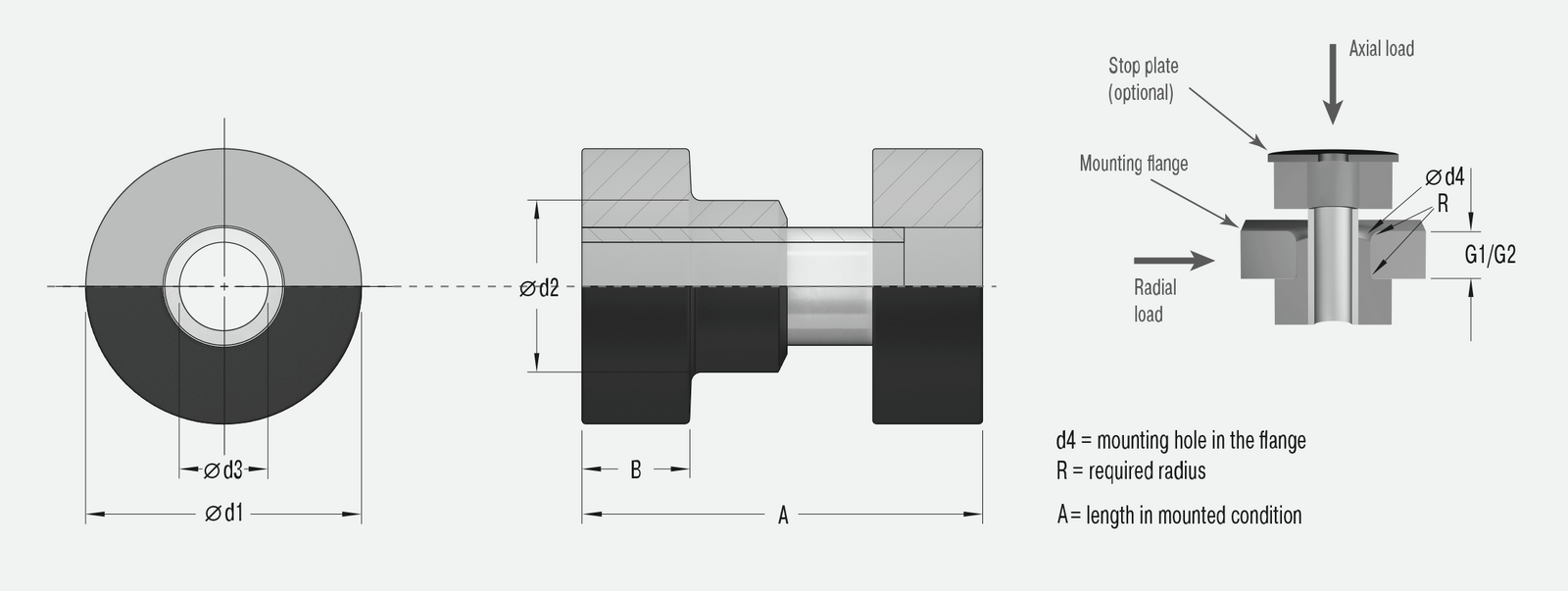

- Diameter: 23.9, 58.4, 88.9
- Mounting hole in flange: 57.2
- Distance: 25.4
- Length in installed condition: 73.2
- Thickness: 25.4, 28.0
- Rolling resistance: 3.00
- Product Specification: Datenblatt
Cad 3D
