Damping Plate 100x100x25mm
Energy absorption in pad format
- Code: SL-100-25-D-MP3
- Description: Energy absorption in pad format
- Part no.: SL-100-25-D-MP3
- Energy absorption: 28.5 (90.0)
- Stroke Utilization: 6 (12)

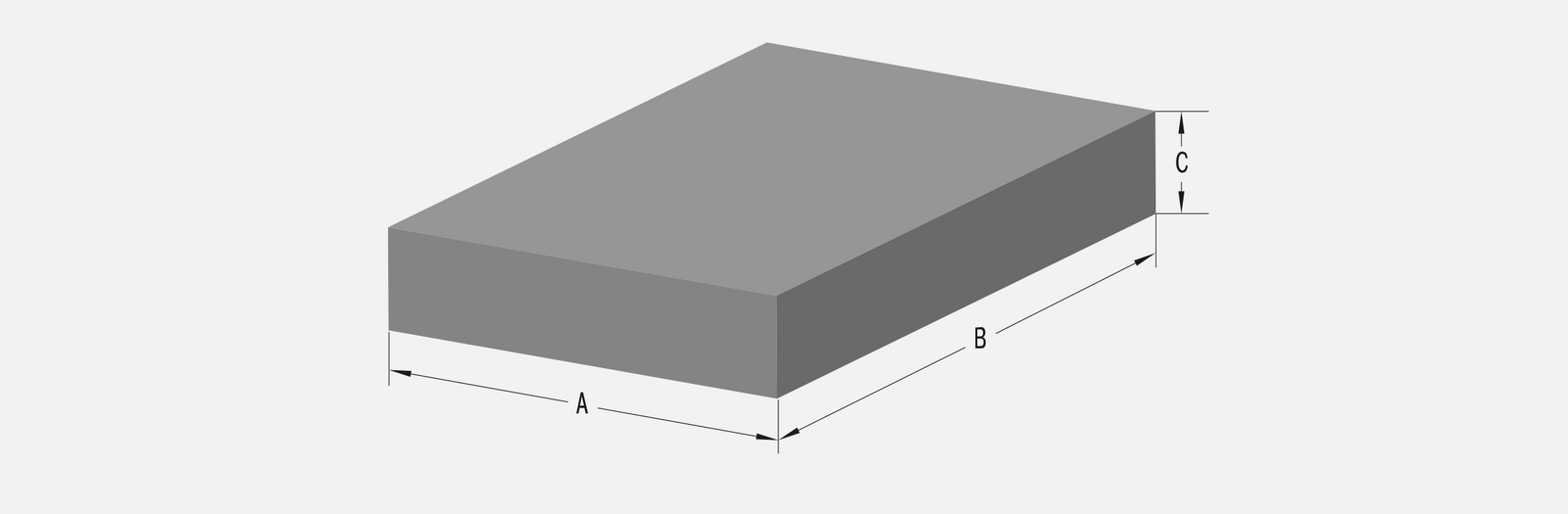

- Width: 100.0
- Length: 100.0
- Height: 25.0
- Area: 10000
- Density: 500
- Return Time: ca. 4 (5)
- Weight: 0.125
- Product Specification: Datenblatt
Cad 3D
