Irreversible Emergency Stop Damper
Compact one-off deceleration
- Code: TI16-25-1
- Description: Compact one-off deceleration
- Part no.: TI16-25-1
- Energy capacity: 562
- Stroke max.: 25
- Reacting force: 37138

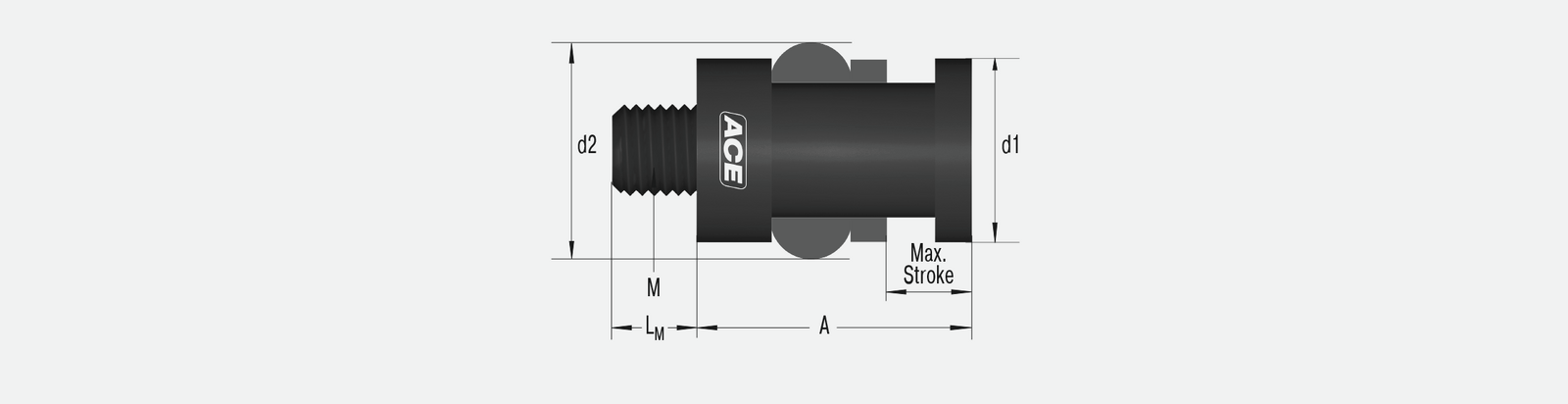

- Length: 15, 48.0
- Diameter: 32, 38
- Thread: M16x2
- Depth thread hole: 25
- Weight: 0.050
- Product Specification: Datenblatt
Cad 3D
