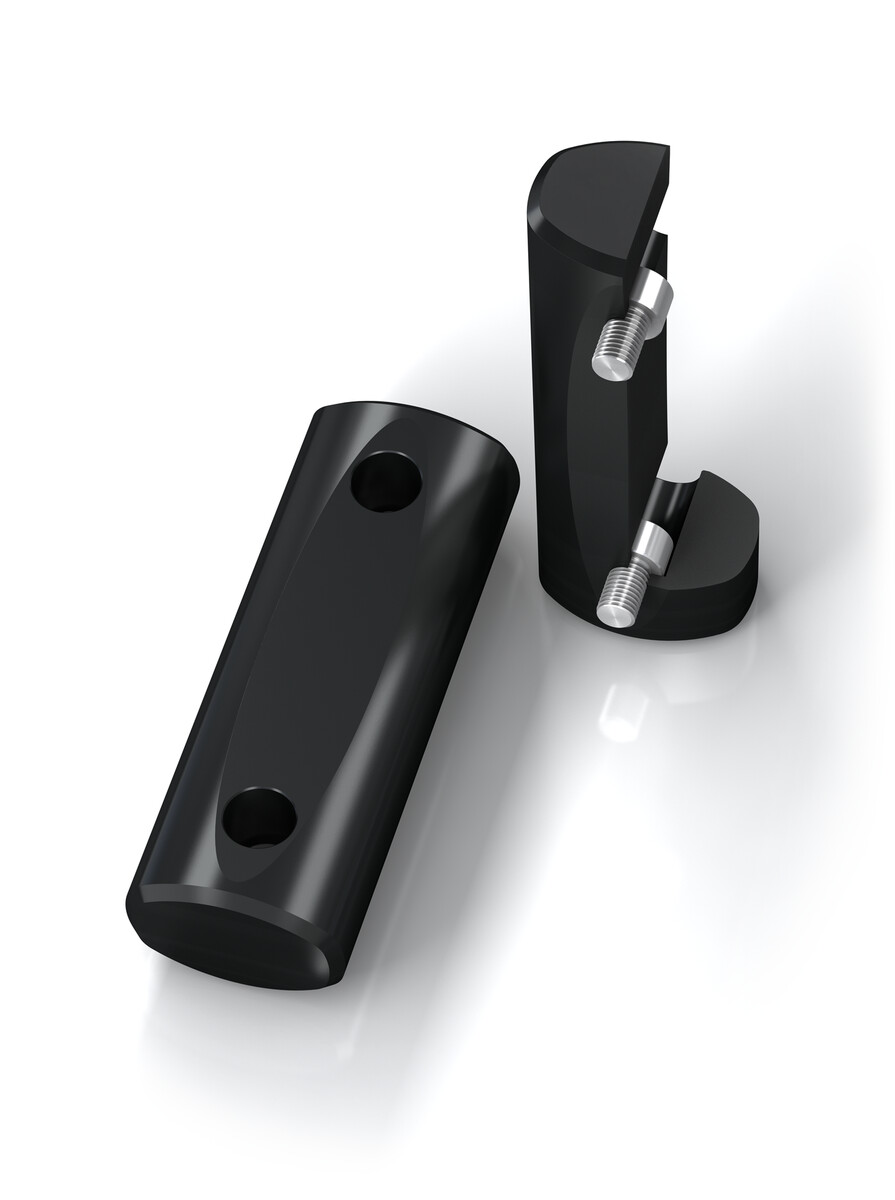

Profile Damper Radial Damping
Compact powerhouse in solid material
- Code: TR97-35HD
- Description: Compact powerhouse in solid material
- Part no.: TR97-35HD
- Max. energy capacity per cycle for continous use: 530
- Energy capacity per cycle for emergency use: 742
- For modular system: 104800
- Max. stroke: 21
- Position: 0

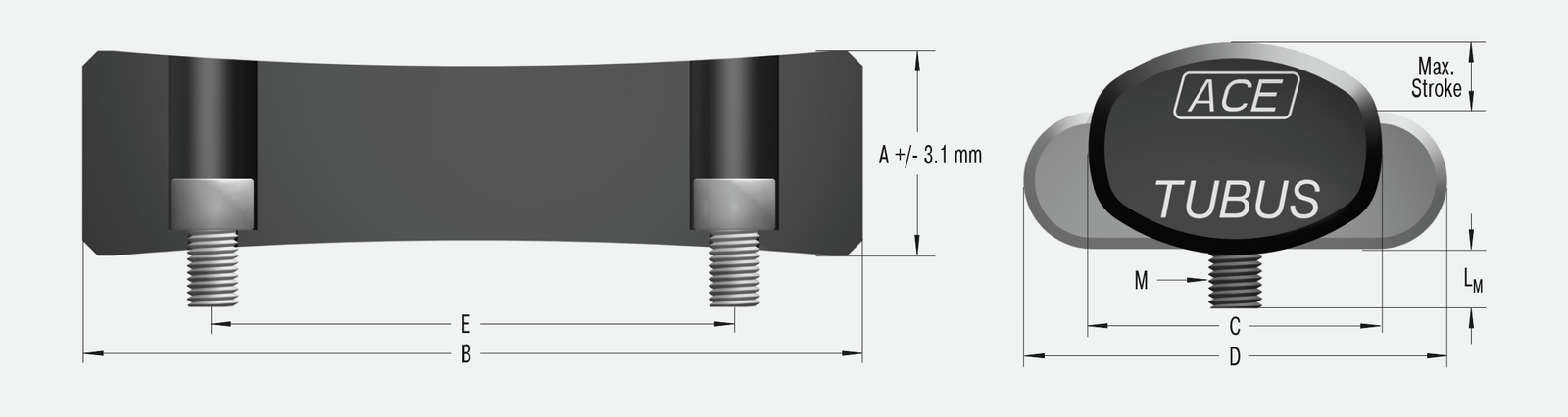

- Width: 131, 97
- Length: 151, 20
- Distance: 102
- Thread: M12 x 35
- Height: 82
- Weight: 1.06
- Product Specification: Datenblatt
Cad 3D
