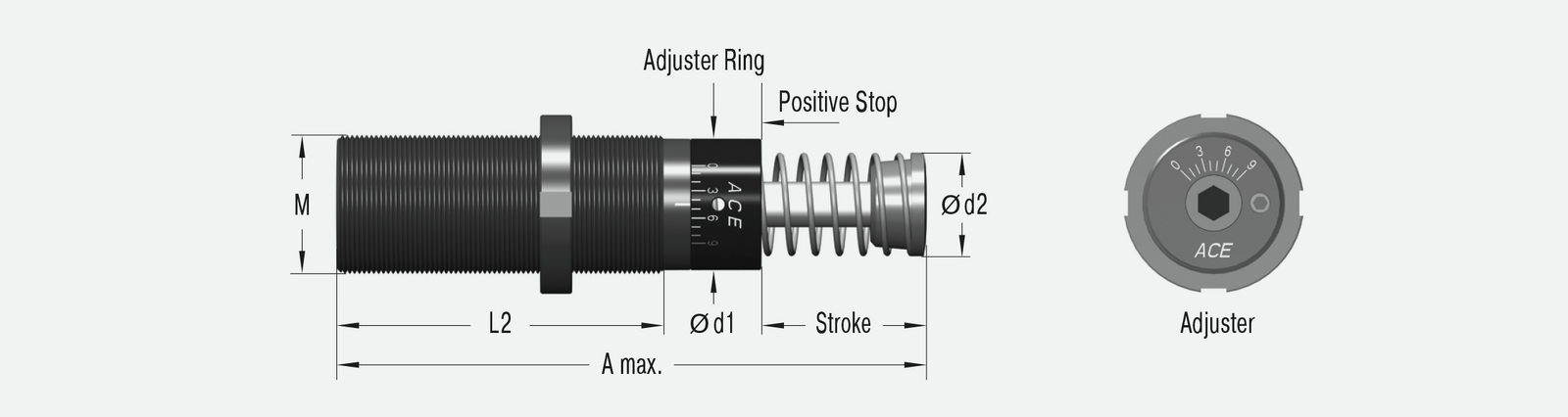

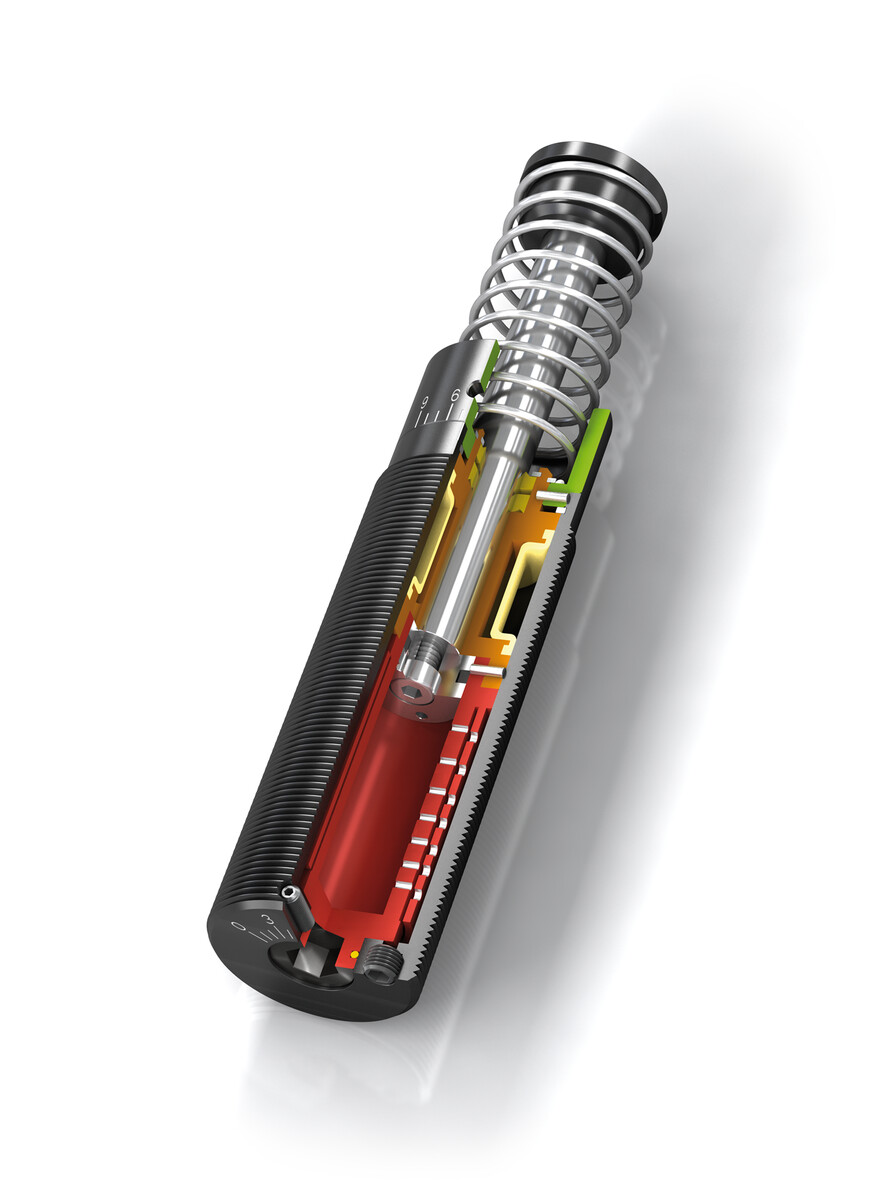

ACE Industrial Shock Absorber adjustable
High energy absorption and progressive adjustment
- Code: MA4550EUM
- Description: High energy absorption and progressive adjustment
- Part no.: MA4550EUM
- Type: einstellbar
- Max. stroke: 50
- Stroke: 48.5
- a: 1
- d: 0

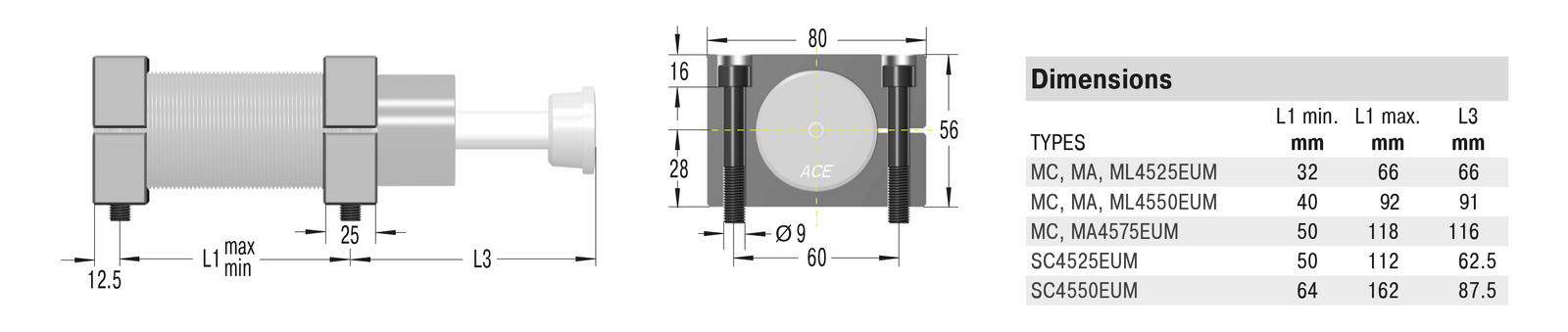

- Position Side Foot Mountig Kit: 0
- Angle: 0
- Attachment Parts: 1
- Length: 120.0, 195, 250, 48.5, 68
- Distance: 40, 91.0, 92
- Max. Energy Capacity: 780
- Max. Energy Capacity Self-Contained: 112000
- Max. Energy Capacity with Air/Oil Tank: 192000
- Max. Energy Capacity with Oil Recirculation: 248000
- Effective Weight me: 14500, 70
- Min. Return Force: 145, 70
- Rod Reset Time: 0.08
- Max. Side Load Angle: 3
- Weight: 1.36
- Product Specification: Datenblatt
Cad 3D
