ACE Miniature Shock Absorber adjustable
Stepless adjustment
- Code: MA150EUM
- Description: Stepless adjustment
- Part no.: MA150EUM
- Max. Energy Capacity at continuous operation: 22.0
- Max. Energy Capacity at emergency stop: 35000
- effective weight - adjusted: 1, 109
- Min. Return Force: 3, 5
- Rod Reset Time: 0.4
- Max. Side Load Angle: 2
- Weight: 0.06
- Max. stroke: 12.5
- Stroke: 0
- Attachment Parts: Standard
- Attachment parts on the outer tube: -
- Product Specification: Datenblatt

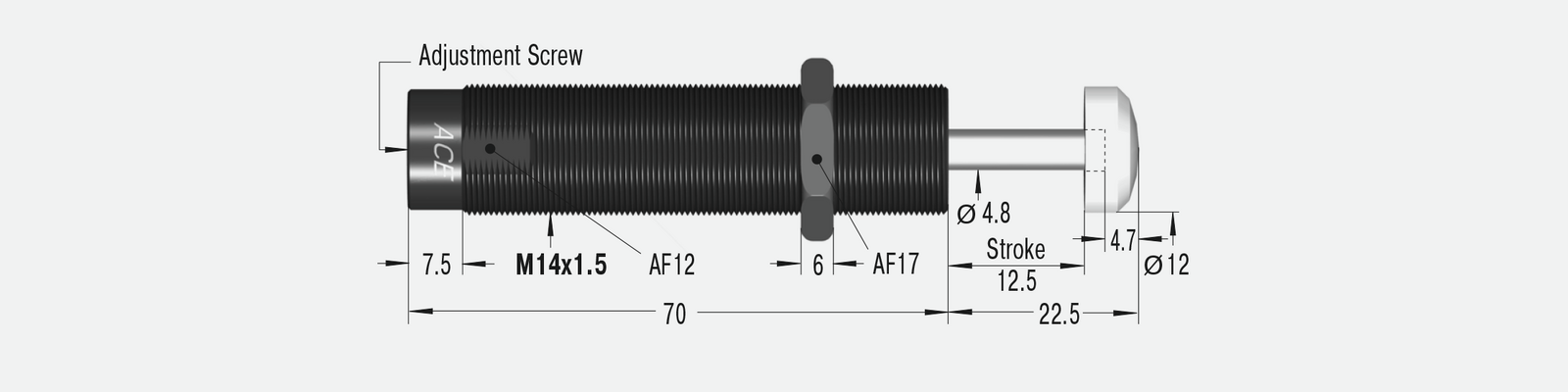

Cad 3D
