Hjem / Industrikomponenter / Clamping knobs / Lobe knobs / VCM-SST

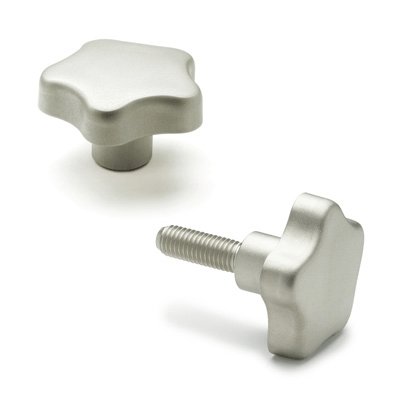

VCM-SST

Lobe knobs

Teknisk datablad

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

VCM-SST

Lobe knobs
VCM-SST-p

Lobe knobs

Materiale

Aluminium(0)
Aluminium-Steel(0)
Aluminium|Stainless steel(0)
Brass(0)
Brass zinc alloy(0)
Brass-Steel(0)
Cast iron(0)
Die-cast zinc alloy(0)
Duroplast(0)
Duroplast-Chromium(0)
Duroplast-Stainless steel(0)
Duroplast-Steel(0)
Oslrubber(0)
Rubber(0)
Rubber-Stainless steel(0)
Rubber-Steel(0)
Silicon(0)
Stainless steel(29)
Stainless steel A4(0)
Steel(0)
Technopolymer(0)
Technopolymer-Die-cast zinc alloy(0)
Technopolymer-Stainless steel(0)
Technopolymer-Steel(0)
Technopolymer-Zamac(0)
Technopolymer|Stainless steel(0)
Titanium(0)
Zinc(0)

Produktlinje

AE-V0(0)
Atex(0)
Chromium(0)
Clean(0)
Elecolors(0)
Ergostyle(0)
Esd(0)
Inox(29)
Metal Detectable(0)
Profile systems(0)
San(0)
San|Profile systems(0)
Soft(0)
SUPER-Technopolymer(0)
SUPER-Technopolymer|Inox(0)
Technopolymer|Profile systems(0)
Visually Detectable(0)

Farge

Festemetode

Blind hole(11)
Blind holes(0)
Blind holes-Threaded screws(0)
For welding(0)
Not drilled(0)
Pass-through hole(0)
Pass-through holes(0)
Pass-through holes-Blind holes(0)
Pass-through holes-Threaded screws(0)
Plain hole(0)
Plain hole and keyway(0)
Snap-in(0)
Square hole(0)
Threaded screw(19)
Threaded screws(0)
Without holes(0)

Gjengetapp

1/2-13(0)
1/4-20(0)
3/8-16(0)
5/8-11(0)
5/16-18(0)
10-32(0)
63(0)
M 2(0)
M 2,5(0)
M 3(0)
M 4(0)
M 5(0)
M 6(0)
M 8(6)
M 8x22(0)
M 10(6)
M 12(8)
M 14(0)
M 16(0)
M 20(0)
M 20x1.5(0)
M 24(0)
M 24x2(0)
M 30(0)
M 30x2(0)
M 36x2(0)
M 42x2(0)

Hull

Diameter

Utvendig diameter

Fotdiameter

25(0)
26(0)
30(0)
32(0)
40(0)
50(0)
60(0)
70(0)
80(0)
100(0)
120(0)
125(0)
160(0)
200(0)

Tappdiameter

Tilkoblingsgjenge

1/2-13(0)
3/8-24(0)
M 6(0)
M 6x0.75(0)
M 8(0)
M 8x0.75(0)
M 8x1(0)
M 10(0)
M 10x1(0)
M 12(0)
M 12x1.5(0)
M 16(0)
M 16x1.5(0)
M 20(0)
M 20x1.5(0)
M 24x2(0)

Gjengetilkobling

G 1/2(0)
G 1/4(0)
G 1/8(0)
G 3/8(0)
M 5(0)
M 6(0)
M 8(0)
M 10(0)
M 10x1.5(0)
M 10x1.25(0)
M 12(0)
M 14x1.5(0)
NPT1/4(0)
NPT3/8(0)

Spaklengde

Senteravstand

Hullavstand

Håndtak

fixed handle(0)
fold away handle(0)
revolving handle(0)
safety fold away handle(0)
without handle(0)

Bæreevne

0 - 1400 N(0)
1401 - 2600 N(0)
2601 - 5000 N(0)
5001 - 10000 N(0)
10001 - 25000 N(0)

Materiale brakett

Stainless steel(0)
Steel(0)

Materiale bøssing

Steel(0)

Farge tilbehør

C1(0)
C17(0)
C2(0)
C3(0)
C4(0)
C5(0)
C6(0)
SR(0)
SW(0)

Rørprofil

Round(0)
Square(0)
Square-Round(0)

Belgtype

Multi-bellow(0)
Wibellow(0)

Type sugekoppholder

Anti-rotating(0)
Fixed(0)
Micro(0)
Mini-Anti-rotating(0)
Mini-Built-in Spring(0)
Mini-Fixed(0)
Mini-Spring(0)
Spring(0)

Størrelse sugekoppholder

43 - 74(0)
75 - 100(0)
101 - 150(0)
151 - 192(0)

Størrelse sugekopp

4 - 10(0)
11 - 20(0)
21 - 30(0)
31 - 40(0)
41 - 50(0)
51 - 60(0)
61 - 70(0)
71 - 80(0)
81 - 100(0)
101 - 143(0)

Kontakt

DIN43650C(0)
KN(0)

Modul

0.5(0)
0.7(0)
1(0)
1.0(0)
1.2(0)
1.5(0)
2.0(0)
2.5(0)
3.0(0)
4.0(0)

length
pcs
set
stk

Viser alle 31 resultater

Vennligst velg en deltype for å få relevante valg.

Lukk

Code 169541

Description VCM-SST-40-8

D

—

—

d

—

—

dH7

—

—

L

—

—

d1

—

—

l2

—

—

h

—

—

Weight

—

—

l

—

—

CAD

Les mer

Code 169541

Description VCM-SST-40-8

D 40

d -

dH7 8

L 24

d1 14

l2 12

h 15

Weight 36

l -

Les mer
Code 169542

Description VCM-SST-40-M8

D 40

d M8

dH7 -

L 24

d1 14

l2 12

h 15

Weight 37

l -

Les mer
Code 169561

Description VCM-SST-40-p-M8x20

D 40

d M8

L 24

d1 14

l 20

l2 12

Weight 50

dH7 -

h -

Les mer
Code 169562

Description VCM-SST-40-p-M8x30

D 40

d M8

L 24

d1 14

l 30

l2 12

Weight 55

dH7 -

h -

Les mer
Code 169563

Description VCM-SST-40-p-M8x40

D 40

d M8

L 24

d1 14

l 40

l2 12

Weight 56

dH7 -

h -

Les mer
Code 169546

Description VCM-SST-50-10

D 50

d -

dH7 10

L 31

d1 18

l2 17.5

h 18

Weight 63

l -

Les mer
Code 169571

Description VCM-SST-50-p-M10x20

D 50

d M10

L 30

d1 18

l 20

l2 16.5

Weight 95

dH7 -

h -

Les mer
Code 169572

Description VCM-SST-50-p-M10x30

D 50

d M10

L 30

d1 18

l 30

l2 16.5

Weight 97

dH7 -

h -

Les mer
Code 169573

Description VCM-SST-50-p-M10x40

D 50

d M10

L 30

d1 18

l 40

l2 16.5

Weight 100

dH7 -

h -

Les mer
Code 169551

Description VCM-SST-60-12

D 60

d -

dH7 12

L 39

d1 20

l2 21

h 22

Weight 105

l -

Les mer
Code 169552

Description VCM-SST-60-M12

D 60

d M12

dH7 -

L 39

d1 20

l2 21

h 22

Weight 107

l -

Les mer
Code 169580

Description VCM-SST-60-p-M12x20

D 60

d M12

L 37.5

d1 20

l 20

l2 20

Weight 150

dH7 -

h -

Les mer
Code 169581

Description VCM-SST-60-p-M12x30

D 60

d M12

L 37.5

d1 20

l 30

l2 20

Weight 155

dH7 -

h -

Les mer
Code 169582

Description VCM-SST-60-p-M12x40

D 60

d M12

L 37.5

d1 20

l 40

l2 20

Weight 162

dH7 -

h -

Les mer
Code 169583

Description VCM-SST-60-p-M12x50

D 60

d M12

L 37.5

d1 20

l 50

l2 20

Weight 169

dH7 -

h -

Les mer
Code 169543

Description VCM-SST-A4-40-8

D 40

d -

dH7 8

L 24

d1 14

l2 12

h 15

Weight 37

l -

Les mer
Code 169544

Description VCM-SST-A4-40-M8

D 40

d M8

dH7 -

L 24

d1 14

l2 12

h 15

Weight 37

l -

Les mer
Code 169566

Description VCM-SST-A4-40-p-M8x20

D 40

d M8

L 24

d1 14

l 20

l2 12

Weight 50

dH7 -

h -

Les mer
Code 169567

Description VCM-SST-A4-40-p-M8x30

D 40

d M8

L 24

d1 14

l 30

l2 12

Weight 55

dH7 -

h -

Les mer
Code 169568

Description VCM-SST-A4-40-p-M8x40

D 40

d M8

L 24

d1 14

l 40

l2 12

Weight 56

dH7 -

h -

Les mer
Code 169548

Description VCM-SST-A4-50-10

D 50

d -

dH7 10

L 30

d1 18

l2 16.5

h 18

Weight 67

l -

Les mer
Code 169549

Description VCM-SST-A4-50-M10

D 50

d M10

dH7 -

L 30

d1 18

l2 16.5

h 18

Weight 68

l -

Les mer
Code 169576

Description VCM-SST-A4-50-p-M10x20

D 50

d M10

L 30

d1 18

l 20

l2 16.5

Weight 95

dH7 -

h -

Les mer
Code 169577

Description VCM-SST-A4-50-p-M10x30

D 50

d M10

L 30

d1 18

l 30

l2 16.5

Weight 97

dH7 -

h -

Les mer
Code 169578

Description VCM-SST-A4-50-p-M10x40

D 50

d M10

L 30

d1 18

l 40

l2 16.5

Weight 100

dH7 -

h -

Les mer
Code 169553

Description VCM-SST-A4-60-12

D 60

d -

dH7 12

L 37.5

d1 20

l2 20

h 22

Weight 109

l -

Les mer
Code 169554

Description VCM-SST-A4-60-M12

D 60

d M12

dH7 -

L 37.5

d1 20

l2 20

h 22

Weight 114

l -

Les mer
Code 169586

Description VCM-SST-A4-60-p-M12x20

D 60

d M12

L 37.5

d1 20

l 20

l2 20

Weight 155

dH7 -

h -

Les mer
Code 169587

Description VCM-SST-A4-60-p-M12x30

D 60

d M12

L 37.5

d1 20

l 30

l2 20

Weight 160

dH7 -

h -

Les mer
Code 169588

Description VCM-SST-A4-60-p-M12x40

D 60

d M12

L 37.5

d1 20

l 40

l2 20

Weight 162

dH7 -

h -

Les mer
Code 169589

Description VCM-SST-A4-60-p-M12x50

D 60

d M12

L 37.5

d1 20

l 50

l2 20

Weight 169

dH7 -

h -

Les mer
