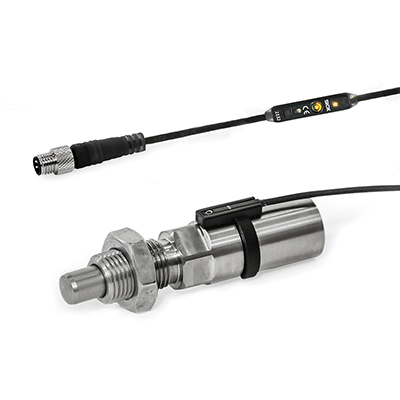

GN 817.7-12-15-E-OP
GN 817.7-12-15-E-OP
- Code: GN.81613
- Description: GN 817.7-12-15-E-OP
- Position: 0
- d1 Tip -0.02 -0.05 Hole H7: 12
- d2: M 20 x 1.5
- d3: M 3
- d4: 21
- I1: 15
- I2: 76
- I3: 34
- I4: 10
- I5: 24
- I6 min: 4
- sw1: 19
- sw2: 30
- Force F a 6 bar#: 12, 26
- Weight: 246
