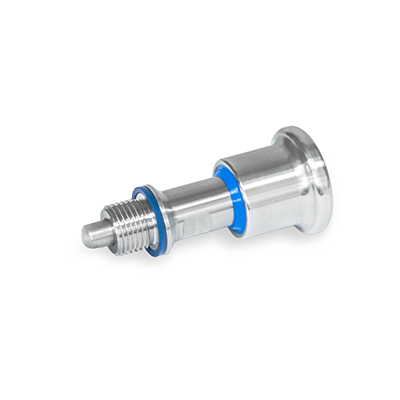

GN 8170-8-C-FH-H
GN 8170-8-C-FH-H
- Code: GN.81716
- Description: GN 8170-8-C-FH-H
- Position: 0
- d1 plunger f8 Hole H8: 8
- d2: 35
- d3: M16x1.5
- d4: 18
- d5: 22.8
- k: 29
- l1: 8
- l2: 12
- l3: 54.3
- sw: 14
- Spring preload: 22
- Spring max load: 32
- Weight: 190
Cad 3D
