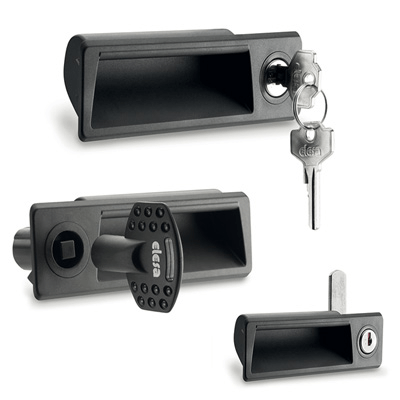

PR-CH

Latches with key

Teknisk datablad
ERW.78-p M10x35-C17
Beklager, ingen produkter samsvarer med dine kriterier. Vennligst prøv å justere filtrene eller søket.
Main specifications
Handle and stator

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Two keys

Nickel-plated brass or polyamide based (PA) technopolymer.

Standard executions

General information
Technical data

The lifting (F1) and pull out (F2) resistance values reported in the table are the result of tests carried out in the laboratory with handles assembled on metal sheet panels with thickness = 1.5 mm.

Accessories
Accessories on request (to be ordered separately)

Closing lever LPR.

assets/low/elesa/PHOTO/12/PR-CH_SEC.jpg
Instructions of use
Assembly instructions
  • Drill the handle housing according to the template dimensions.
  • Remove all drilling burrs before fitting the handle.
  • Fit the upper part of the handle into the housing (Fig. 1).
  • Press onto the lower part until the handle is completely snapped in (Fig. 2).
