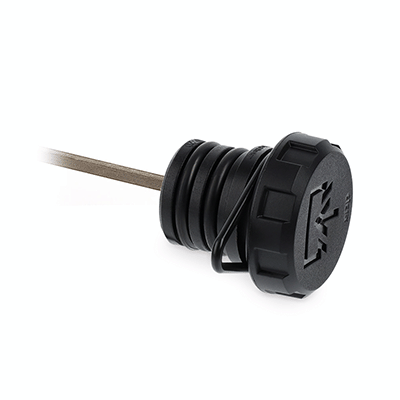

TP-C+a-RC

Plugs

Teknisk datablad
429808-rlt_u15

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Description TP-C.18+A-RC-C9
    Color
    —
    • —
    d
    —
    • —
    h
    —
    • —
    D
    —
    • —
    L
    —
    • —
    R
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    a
    —
    • —
    Mounting hole d+0.2
    —
    • —
    Weight
    —
    • —
    CAD
  • Description TP-C.18+A-RC-C9
    d 18
    Color C9
    h 13
    D 26
    L 28
    R 22.5
    h1 5
    h2 10
    a 189
    Mounting hole d+0.2 18
    Weight 34
  • Description TP-C.20+A-RC-C9
    d 20
    Color C9
    h 14
    D 30
    L 29
    R 24
    h1 5
    h2 11
    a 189
    Mounting hole d+0.2 20
    Weight 37
  • Description TP-C.26+A-RC-C9
    d 26
    Color C9
    h 14
    D 35
    L 29.5
    R 26.5
    h1 3
    h2 9
    a 189
    Mounting hole d+0.2 26
    Weight 39
  • Description TP-CF.18+A-RC-C9
    d 18
    Color C9
    h 13
    D 26
    L 28
    R 22.5
    h1 5
    h2 10
    a 189
    Mounting hole d+0.2 18
    Weight 34
  • Description TP-CF.20+A-RC-C9
    d 20
    Color C9
    h 14
    D 30
    L 29
    R 24
    h1 5
    h2 11
    a 189
    Mounting hole d+0.2 20
    Weight 37
  • Description TP-CF.26+A-RC-C9
    d 26
    Color C9
    h 14
    D 35
    L 29.5
    R 26.5
    h1 3
    h2 9
    a 189
    Mounting hole d+0.2 26
    Weight 39
