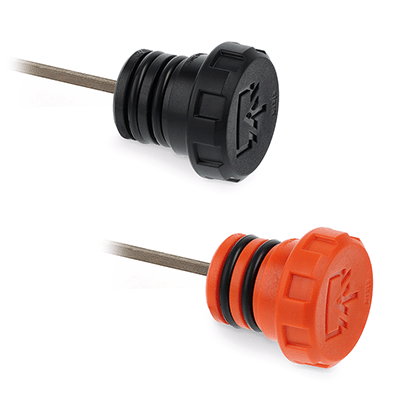

TP-C+a

Plugs

Teknisk datablad
262153-C6-eth_an-rlt_u15-sketch

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 12 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 59855-R-C2
    Description TP-C.18+a-C2
    d
    —
    • —
    h
    —
    • —
    D
    —
    • —
    L
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    a
    —
    • —
    Mounting hole d+0.2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 59855-R-C2
    Description TP-C.18+a-C2
    d 18
    h 13
    D 26
    L 28
    h1 5
    h2 10
    a 189
    Mounting hole d+0.2 18
    Weight 31
    Les mer
  • Code 59855-R-C9
    Description TP-C.18+a-C9
    d 18
    h 13
    D 26
    L 28
    h1 5
    h2 10
    a 189
    Mounting hole d+0.2 18
    Weight 31
    Les mer
  • Code 59865-R-C2
    Description TP-C.20+a-C2
    d 20
    h 14
    D 30
    L 29
    h1 5
    h2 11
    a 189
    Mounting hole d+0.2 20
    Weight 15
    Les mer
  • Code 59865-R-C9
    Description TP-C.20+a-C9
    d 20
    h 14
    D 30
    L 29
    h1 5
    h2 11
    a 189
    Mounting hole d+0.2 20
    Weight 15
    Les mer
  • Code 59885-R-C2
    Description TP-C.26+a-C2
    d 26
    h 14
    D 35
    L 29.5
    h1 3
    h2 9
    a 189
    Mounting hole d+0.2 26
    Weight 39
    Les mer
  • Code 59885-R-C9
    Description TP-C.26+a-C9
    d 26
    h 14
    D 35
    L 29.5
    h1 3
    h2 9
    a 189
    Mounting hole d+0.2 26
    Weight 39
    Les mer
  • Code 59895-R-C2
    Description TP-CF.18+a-C2
    d 18
    h 13
    D 26
    L 28
    h1 5
    h2 10
    a 189
    Mounting hole d+0.2 18
    Weight 31
    Les mer
  • Code 59895-R-C9
    Description TP-CF.18+a-C9
    d 18
    h 13
    D 26
    L 28
    h1 5
    h2 10
    a 189
    Mounting hole d+0.2 18
    Weight 31
    Les mer
  • Code 59905-R-C2
    Description TP-CF.20+a-C2
    d 20
    h 14
    D 30
    L 29
    h1 5
    h2 11
    a 189
    Mounting hole d+0.2 20
    Weight 15
    Les mer
  • Code 59905-R-C9
    Description TP-CF.20+a-C9
    d 20
    h 14
    D 30
    L 29
    h1 5
    h2 11
    a 189
    Mounting hole d+0.2 20
    Weight 15
    Les mer
  • Code 59925-R-C2
    Description TP-CF.26+a-C2
    d 26
    h 14
    D 35
    L 29.5
    h1 3
    h2 9
    a 189
    Mounting hole d+0.2 26
    Weight 39
    Les mer
  • Code 59925-R-C9
    Description TP-CF.26+a-C9
    d 26
    h 14
    D 35
    L 29.5
    h1 3
    h2 9
    a 189
    Mounting hole d+0.2 26
    Weight 39
    Les mer
