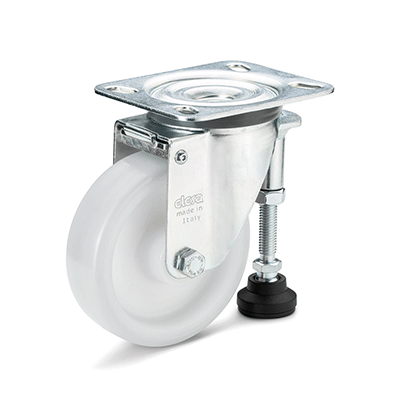

RLE.F8-N

Technopolymere wheels

Teknisk datablad
550129-K-zcl_1_0_k

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 3 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 450981
    Description RLE.F8-080-SBP-AS-N
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    H
    —
    • —
    B
    —
    • —
    L
    —
    • —
    b1
    —
    • —
    b2
    —
    • —
    b3
    —
    • —
    b4
    —
    • —
    h1
    —
    • —
    h2 min
    —
    • —
    h2 max
    —
    • —
    Rolling resistance
    —
    • —
    Dynamic carrying capacity
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 450981
    Description RLE.F8-080-SBP-AS-N
    d 80
    d1 9
    d2 32
    l1 45
    l2 60
    l3 30
    H 107
    B 100
    L 85
    b1 75
    b2 80
    b3 40
    b4 37
    h1 20
    h2 min 95
    h2 max 115
    Rolling resistance 1500
    Dynamic carrying capacity 1800
    Weight 760
    Les mer
  • Code 450983
    Description RLE.F8-100-SBP-AS-N
    d 100
    d1 9
    d2 32
    l1 45
    l2 60
    l3 30
    H 128
    B 100
    L 85
    b1 75
    b2 80
    b3 35
    b4 37
    h1 20
    h2 min 118
    h2 max 140
    Rolling resistance 1750
    Dynamic carrying capacity 2000
    Weight 840
    Les mer
  • Code 450985
    Description RLE.F8-125-SBP-AS-N
    d 125
    d1 9
    d2 32
    l1 45
    l2 60
    l3 35
    H 157
    B 100
    L 85
    b1 75
    b2 80
    b3 37
    b4 43
    h1 20
    h2 min 150
    h2 max 172
    Rolling resistance 2000
    Dynamic carrying capacity 2200
    Weight 1080
    Les mer
