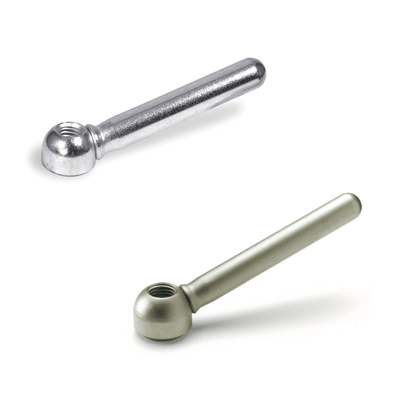

GN 99.5 - GN 99.6

Lever handles

GN.68303-gn_923_r_b

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 13 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GN.20501
    Description GN 99.5-63-M8
    l1
    —
    • —
    l2
    —
    • —
    d1
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code GN.20501
    Description GN 99.5-63-M8
    l1 63
    l2 60
    d1 M8
    h1 12.5
    h2 30.5
    d2 16
    d3 10
    Weight 39
    Les mer
  • Code GN.20511
    Description GN 99.5-80-M10
    l1 80
    l2 76
    d1 M10
    h1 15
    h2 37
    d2 20
    d3 12
    Weight 74
    Les mer
  • Code GN.20521
    Description GN 99.5-100-M12
    l1 100
    l2 95
    d1 M12
    h1 19
    h2 46
    d2 25
    d3 14
    Weight 146
    Les mer
  • Code GN.20531
    Description GN 99.5-125-M16
    l1 125
    l2 119
    d1 M16
    h1 25
    h2 58.5
    d2 32
    d3 18
    Weight 309
    Les mer
  • Code GN.20541
    Description GN 99.5-160-M20
    l1 160
    l2 152
    d1 M20
    h1 31
    h2 73
    d2 40
    d3 20
    Weight 522
    Les mer
  • Code GN.20601
    Description GN 99.6-63-M8
    l1 63
    l2 60
    d1 M8
    h1 12.5
    h2 30.5
    d2 16
    d3 10
    Weight 39
    Les mer
  • Code GN.20602
    Description GN 99.6-63-M8-A4
    l1 63
    l2 60
    d1 M8
    h1 12.5
    h2 30.5
    d2 16
    d3 10
    Weight 45
    Les mer
  • Code GN.20611
    Description GN 99.6-80-M10
    l1 80
    l2 76
    d1 M10
    h1 15
    h2 37
    d2 20
    d3 12
    Weight 75
    Les mer
  • Code GN.20612
    Description GN 99.6-80-M10-A4
    l1 80
    l2 76
    d1 M10
    h1 15
    h2 37
    d2 20
    d3 12
    Weight 75
    Les mer
  • Code GN.20621
    Description GN 99.6-100-M12
    l1 100
    l2 95
    d1 M12
    h1 19
    h2 46
    d2 25
    d3 14
    Weight 147
    Les mer
  • Code GN.20622
    Description GN 99.6-100-M12-A4
    l1 100
    l2 95
    d1 M12
    h1 19
    h2 46
    d2 25
    d3 14
    Weight 149
    Les mer
  • Code GN.20631
    Description GN 99.6-125-M16
    l1 125
    l2 119
    d1 M16
    h1 25
    h2 58.5
    d2 32
    d3 18
    Weight 309
    Les mer
  • Code GN.20641
    Description GN 99.6-160-M20
    l1 160
    l2 152
    d1 M20
    h1 31
    h2 73
    d2 40
    d3 20
    Weight 526
    Les mer
Main specifications
Standard executions

Hub with threaded pass-through hole.

Arm fixed to the hub by welding.

  • GN 99.5: zinc-plated steel.
  • GN 99.6: AISI 304 stainless steel, sandblasted matte finish.
  • GN 99.6-A4: AISI 316L stainless steel, sandblasted matte finish.
