GN 277.4

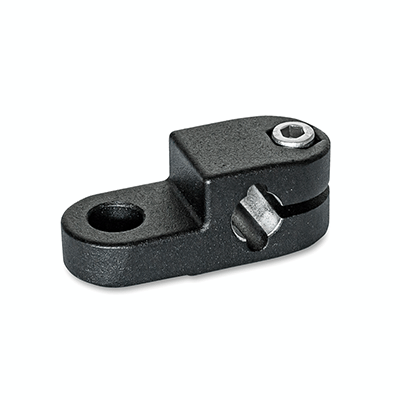

Connecting clamps for tubes

GN.47311-gn_147-m_1066_combi-sketch-zcl-sketch

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 10 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GN.60101
    Description GN 277.4-B12-B12-2-SW
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    b
    —
    • —
    k
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    m
    —
    • —
    Thermometer
    —
    • —
    z
    —
    • —
    z Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code GN.60101
    Description GN 277.4-B12-B12-2-SW
    d1 B12
    d2 B12
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 59
    Les mer
  • Code GN.60102
    Description GN 277.4-B12-B18-2-SW
    d1 B12
    d2 B18
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 57
    Les mer
  • Code GN.60106
    Description GN 277.4-B14-B12-2-SW
    d1 B14
    d2 B12
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 57
    Les mer
  • Code GN.60107
    Description GN 277.4-B14-B18-2-SW
    d1 B14
    d2 B18
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 55
    Les mer
  • Code GN.60111
    Description GN 277.4-B15-B12-2-SW
    d1 B15
    d2 B12
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 56
    Les mer
  • Code GN.60112
    Description GN 277.4-B15-B18-2-SW
    d1 B15
    d2 B18
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 54
    Les mer
  • Code GN.60116
    Description GN 277.4-B16-B12-2-SW
    d1 B16
    d2 B12
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 55
    Les mer
  • Code GN.60117
    Description GN 277.4-B16-B18-2-SW
    d1 B16
    d2 B18
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 53
    Les mer
  • Code GN.60121
    Description GN 277.4-B18-B12-2-SW
    d1 B18
    d2 B12
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 54
    Les mer
  • Code GN.60122
    Description GN 277.4-B18-B18-2-SW
    d1 B18
    d2 B18
    d3 27
    b 25
    k 25
    l1 64
    l2 25
    m 29.5
    Thermometer 11
    z M6-20
    z Clamping kit GN 911-45 / GN 911-63
    Weight 52
    Les mer
