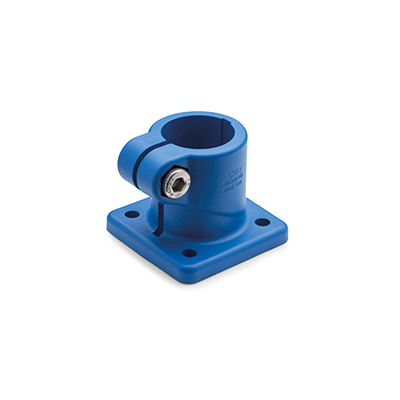

TCC-AB-VD

Connecting clamps for tubes

Teknisk datablad
550831-zcl_3.0

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 2 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 191111
    Description TCC-AB-18-VD
    D
    —
    • —
    L
    —
    • —
    H
    —
    • —
    d2
    —
    • —
    f ±0.2
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    s
    —
    • —
    C
    —
    • —
    F1
    —
    • —
    M1
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 191111
    Description TCC-AB-18-VD
    D 18
    L 45
    H 34
    d2 5.3
    f ±0.2 30
    h1 5
    h2 25
    l1 26
    l2 36.5
    l3 20
    s M6
    C 5
    F1 1050
    M1 8
    Weight 29
    Les mer
  • Code 191211
    Description TCC-AB-30-VD
    D 30
    L 60
    H 50
    d2 6.5
    f ±0.2 40
    h1 8
    h2 40
    l1 42
    l2 53.5
    l3 27
    s M8
    C 12
    F1 1650
    M1 33
    Weight 75
    Les mer
