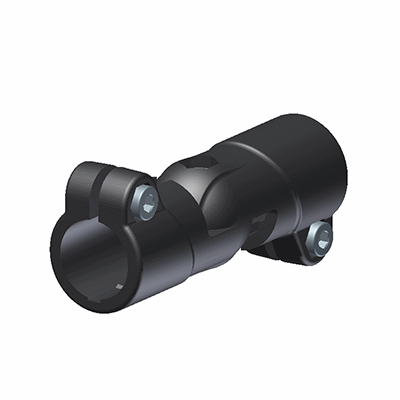

TCC-AP-AP

Connecting clamps for tubes

Teknisk datablad
550835-zcl_3.0

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 600702-C33
    Description TCC-AP-AP-18-S-C33
    d
    —
    • —
    L
    —
    • —
    H
    —
    • —
    f ±0.2
    —
    • —
    l1
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    s
    —
    • —
    C
    —
    • —
    F1
    —
    • —
    M1
    —
    • —
    M2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 600702-C33
    Description TCC-AP-AP-18-S-C33
    d 18
    L 90
    H 36
    f ±0.2 36.5
    l1 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 2
    Weight 66
    Les mer
  • Code 600702-C9
    Description TCC-AP-AP-18-S-C9
    d 18
    L 90
    H 36
    f ±0.2 36.5
    l1 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 2
    Weight 66
    Les mer
  • Code 600701-C33
    Description TCC-AP-AP-18-T-C33
    d 18
    L 90
    H 36
    f ±0.2 36.5
    l1 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 44
    Weight 66
    Les mer
  • Code 600701-C9
    Description TCC-AP-AP-18-T-C9
    d 18
    L 90
    H 36
    f ±0.2 36.5
    l1 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 44
    Weight 66
    Les mer
  • Code 600802-C33
    Description TCC-AP-AP-30-S-C33
    d 30
    L 135
    H 54
    f ±0.2 56
    l1 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 6
    Weight 178
    Les mer
  • Code 600802-C9
    Description TCC-AP-AP-30-S-C9
    d 30
    L 135
    H 54
    f ±0.2 56
    l1 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 6
    Weight 178
    Les mer
  • Code 600801-C33
    Description TCC-AP-AP-30-T-C33
    d 30
    L 135
    H 54
    f ±0.2 56
    l1 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 140
    Weight 178
    Les mer
  • Code 600801-C9
    Description TCC-AP-AP-30-T-C9
    d 30
    L 135
    H 54
    f ±0.2 56
    l1 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 140
    Weight 178
    Les mer
