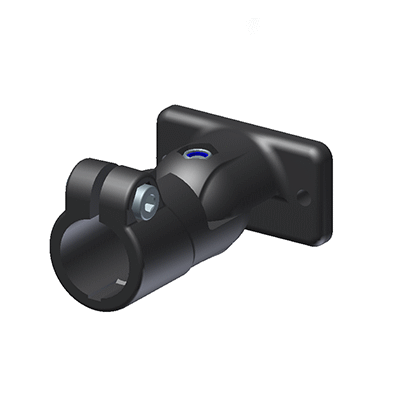

TCC-AP-PBF

Connecting clamps for tubes

Teknisk datablad
550837-K-zcl_3_0_k

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 600732-C33
    Description TCC-AP-PBF-18-S-C33
    d
    —
    • —
    L
    —
    • —
    B
    —
    • —
    H
    —
    • —
    d2
    —
    • —
    f
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    s
    —
    • —
    C
    —
    • —
    F1
    —
    • —
    M1
    —
    • —
    M2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 600732-C33
    Description TCC-AP-PBF-18-S-C33
    d 18
    L 26.5
    B 54
    H 65
    d2 5.5
    f 40
    h1 5
    h2 20
    l1 36
    l2 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 2
    Weight 51
    Les mer
  • Code 600732-C9
    Description TCC-AP-PBF-18-S-C9
    d 18
    L 26.5
    B 54
    H 65
    d2 5.5
    f 40
    h1 5
    h2 20
    l1 36
    l2 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 2
    Weight 51
    Les mer
  • Code 600731-C33
    Description TCC-AP-PBF-18-T-C33
    d 18
    L 26.5
    B 54
    H 65
    d2 5.5
    f 40
    h1 5
    h2 20
    l1 36
    l2 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 32
    Weight 51
    Les mer
  • Code 600731-C9
    Description TCC-AP-PBF-18-T-C9
    d 18
    L 26.5
    B 54
    H 65
    d2 5.5
    f 40
    h1 5
    h2 20
    l1 36
    l2 29.5
    l3 21
    l4 29
    s M6
    C 5
    F1 900
    M1 8
    M2 32
    Weight 51
    Les mer
  • Code 600832-C33
    Description TCC-AP-PBF-30-S-C33
    d 30
    L 40
    B 75
    H 100
    d2 6.5
    f 60
    h1 7.5
    h2 32.5
    l1 54
    l2 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 6
    Weight 142
    Les mer
  • Code 600832-C9
    Description TCC-AP-PBF-30-S-C9
    d 30
    L 40
    B 75
    H 100
    d2 6.5
    f 60
    h1 7.5
    h2 32.5
    l1 54
    l2 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 6
    Weight 142
    Les mer
  • Code 600831-C33
    Description TCC-AP-PBF-30-T-C33
    d 30
    L 40
    B 75
    H 100
    d2 6.5
    f 60
    h1 7.5
    h2 32.5
    l1 54
    l2 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 100
    Weight 142
    Les mer
  • Code 600831-C9
    Description TCC-AP-PBF-30-T-C9
    d 30
    L 40
    B 75
    H 100
    d2 6.5
    f 60
    h1 7.5
    h2 32.5
    l1 54
    l2 45
    l3 28
    l4 42
    s M8
    C 12
    F1 3300
    M1 33
    M2 100
    Weight 142
    Les mer
