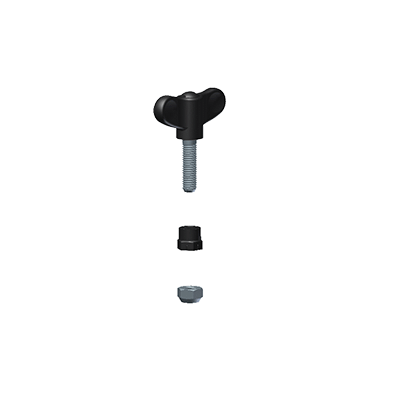

TCC-KS

Connecting clamps for tubes

550865-zcl_3.0

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 7 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 600509-C1
    Description TCC-KS-ERX.30-SST-p-M6x30-C1
    d
    —
    • —
    R
    —
    • —
    L
    —
    • —
    H
    —
    • —
    H1
    —
    • —
    l
    —
    • —
    d1
    —
    • —
    h2
    —
    • —
    For TCC
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 600509-C1
    Description TCC-KS-ERX.30-SST-p-M6x30-C1
    d M6
    R 30
    L 37.5
    H 30
    H1 33.5
    l 30
    d1 6.3
    h2 8
    For TCC TCC-18
    Weight 21
    Les mer
  • Code 600519-C1
    Description TCC-KS-ERX.44-SST-p-M6x30-C1
    d M6
    R 44
    L 52
    H 32.5
    H1 36
    l 30
    d1 6.3
    h2 8
    For TCC TCC-18
    Weight 23
    Les mer
  • Code 600525-C1
    Description TCC-KS-ERX.63-SST-p-M6x30-C1
    d M6
    R 63
    L 73
    H 43
    H1 47
    l 30
    d1 6.3
    h2 8
    For TCC TCC-18
    Weight 25
    Les mer
  • Code 600541-C1
    Description TCC-KS-ERX.63-SST-p-M8x40-C1
    d M8
    R 63
    L 73
    H 43
    H1 47
    l 40
    d1 8.3
    h2 12
    For TCC TCC-30
    Weight 47
    Les mer
  • Code 600557-C1
    Description TCC-KS-ERX.78-SST-p-M8x40-C1
    d M8
    R 78
    L 89.5
    H 54
    H1 58
    l 40
    d1 8.3
    h2 12
    For TCC TCC-30
    Weight 56
    Les mer
  • Code 600607-C1
    Description TCC-KS-EWN.48-SST-p-M6x30-C1
    d M6
    D 47
    L 24
    b 7
    l 30
    d1 6.3
    h2 8
    For TCC TCC-18
    Weight 18
    Les mer
  • Code 600619-C1
    Description TCC-KS-EWN.55-SST-p-M8x40-C1
    d M8
    D 55
    L 28
    b 8
    l 40
    d1 8.3
    h2 12
    For TCC TCC-30
    Weight 36
    Les mer
