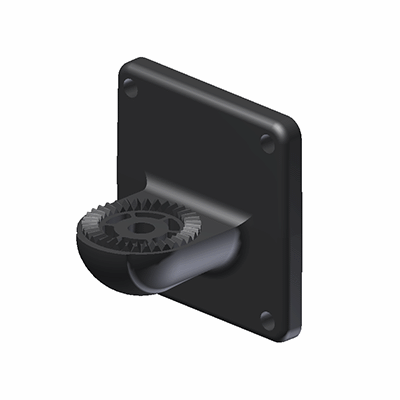

TCC-PB

Connecting clamps for tubes

Teknisk datablad
550875-K-zcl_3_0_k

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 600321-C33
    Description TCC-PB-18-E-C33
    L
    —
    • —
    H
    —
    • —
    d2
    —
    • —
    f ±0.2
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    s
    —
    • —
    C
    —
    • —
    M2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 600321-C33
    Description TCC-PB-18-E-C33
    L 45
    H 34
    d2 5.5
    f ±0.2 30
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 35
    Weight 25
    Les mer
  • Code 600321-C9
    Description TCC-PB-18-E-C9
    L 45
    H 34
    d2 5.5
    f ±0.2 30
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 35
    Weight 25
    Les mer
  • Code 600325-C33
    Description TCC-PB-18-S-C33
    L 45
    H 34
    d2 5.5
    f ±0.2 30
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 3
    Weight 25
    Les mer
  • Code 600325-C9
    Description TCC-PB-18-S-C9
    L 45
    H 34
    d2 5.5
    f ±0.2 30
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 3
    Weight 25
    Les mer
  • Code 600421-C33
    Description TCC-PB-30-E-C33
    L 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 100
    Weight 78
    Les mer
  • Code 600421-C9
    Description TCC-PB-30-E-C9
    L 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 100
    Weight 78
    Les mer
  • Code 600425-C33
    Description TCC-PB-30-S-C33
    L 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 7
    Weight 73
    Les mer
  • Code 600425-C9
    Description TCC-PB-30-S-C9
    L 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 7
    Weight 73
    Les mer
