TCC-PBF

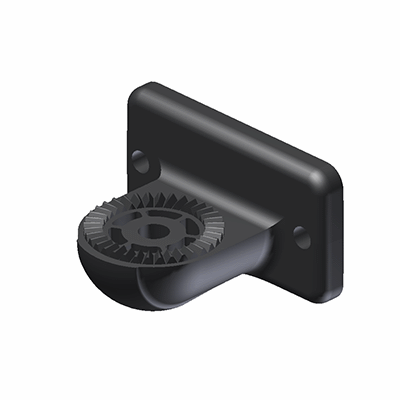

Connecting clamps for tubes

Teknisk datablad
552001-zcr

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 600331-C33
    Description TCC-PBF-18-E-C33
    Color
    —
    • —
    L
    —
    • —
    B
    —
    • —
    H
    —
    • —
    d2
    —
    • —
    f ±0.2
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    s
    —
    • —
    C
    —
    • —
    M2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 600331-C33
    Description TCC-PBF-18-E-C33
    L 26.5
    Color C33
    B 54
    H 34
    d2 5.5
    f ±0.2 40
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 32
    Weight 22
    Les mer
  • Code 600331-C9
    Description TCC-PBF-18-E-C9
    L 26.5
    Color C9
    B 54
    H 34
    d2 5.5
    f ±0.2 40
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 32
    Weight 22
    Les mer
  • Code 600335-C33
    Description TCC-PBF-18-S-C33
    L 26.5
    Color C33
    B 54
    H 34
    d2 5.5
    f ±0.2 40
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 3
    Weight 22
    Les mer
  • Code 600335-C9
    Description TCC-PBF-18-S-C9
    L 26.5
    Color C9
    B 54
    H 34
    d2 5.5
    f ±0.2 40
    h1 5
    h2 20
    l1 26.5
    l2 13
    s M6
    C 5
    M2 3
    Weight 22
    Les mer
  • Code 600431-C33
    Description TCC-PBF-30-E-C33
    L 40
    Color C33
    B 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 100
    Weight 63
    Les mer
  • Code 600431-C9
    Description TCC-PBF-30-E-C9
    L 40
    Color C9
    B 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 100
    Weight 63
    Les mer
  • Code 600435-C33
    Description TCC-PBF-30-S-C33
    L 40
    Color C33
    B 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 7
    Weight 58
    Les mer
  • Code 600435-C9
    Description TCC-PBF-30-S-C9
    L 40
    Color C9
    B 75
    H 54
    d2 6.5
    f ±0.2 60
    h1 7.5
    h2 32.5
    l1 40
    l2 20
    s M8
    C 12
    M2 7
    Weight 58
    Les mer
