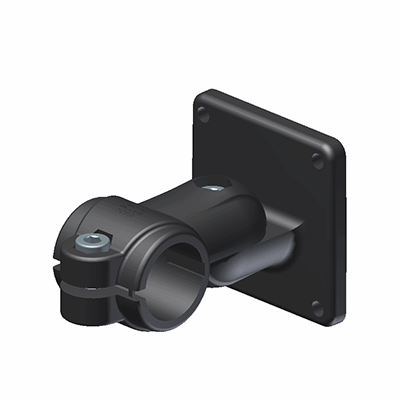

TCC-TP-PB

Connecting clamps for tubes

Teknisk datablad
51961-C2-pr_pf-zcr_pl-sketch

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 600742-C33
    Description TCC-TP-PB-18-S-C33
    Color
    —
    • —
    d
    —
    • —
    L
    —
    • —
    H
    —
    • —
    d2
    —
    • —
    f ±0.2
    —
    • —
    f1
    —
    • —
    f2
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    C
    —
    • —
    F1
    —
    • —
    M1
    —
    • —
    M2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 600742-C33
    Description TCC-TP-PB-18-S-C33
    d 18
    Color C33
    L 45
    H 70.5
    d2 5.5
    f ±0.2 30
    f1 28.5
    f2 20
    h1 5
    s M6
    C 5
    F1 1100
    M1 11
    M2 3
    Weight 55
    Les mer
  • Code 600742-C9
    Description TCC-TP-PB-18-S-C9
    d 18
    Color C9
    L 45
    H 70.5
    d2 5.5
    f ±0.2 30
    f1 28.5
    f2 20
    h1 5
    s M6
    C 5
    F1 1100
    M1 11
    M2 3
    Weight 55
    Les mer
  • Code 600741-C33
    Description TCC-TP-PB-18-T-C33
    d 18
    Color C33
    L 45
    H 70.5
    d2 5.5
    f ±0.2 30
    f1 28.5
    f2 20
    h1 5
    s M6
    C 5
    F1 1100
    M1 11
    M2 35
    Weight 55
    Les mer
  • Code 600741-C9
    Description TCC-TP-PB-18-T-C9
    d 18
    Color C9
    L 45
    H 70.5
    d2 5.5
    f ±0.2 30
    f1 28.5
    f2 20
    h1 5
    s M6
    C 5
    F1 1100
    M1 11
    M2 35
    Weight 55
    Les mer
  • Code 600842-C33
    Description TCC-TP-PB-30-S-C33
    d 30
    Color C33
    L 75
    H 107
    d2 6.5
    f ±0.2 60
    f1 42
    f2 33
    h1 7.5
    s M8
    C 12
    F1 3000
    M1 33
    M2 4
    Weight 160
    Les mer
  • Code 600842-C9
    Description TCC-TP-PB-30-S-C9
    d 30
    Color C9
    L 75
    H 107
    d2 6.5
    f ±0.2 60
    f1 42
    f2 33
    h1 7.5
    s M8
    C 12
    F1 3000
    M1 33
    M2 4
    Weight 160
    Les mer
  • Code 600841-C33
    Description TCC-TP-PB-30-T-C33
    d 30
    Color C33
    L 75
    H 107
    d2 6.5
    f ±0.2 60
    f1 42
    f2 33
    h1 7.5
    s M8
    C 12
    F1 3000
    M1 33
    M2 100
    Weight 160
    Les mer
  • Code 600841-C9
    Description TCC-TP-PB-30-T-C9
    d 30
    Color C9
    L 75
    H 107
    d2 6.5
    f ±0.2 60
    f1 42
    f2 33
    h1 7.5
    s M8
    C 12
    F1 3000
    M1 33
    M2 100
    Weight 160
    Les mer
