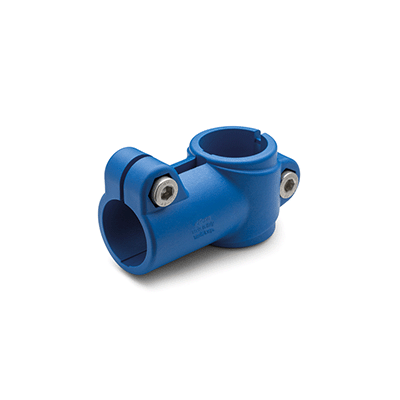

TCC-TS-VD

Connecting clamps for tubes

Teknisk datablad
552131-zcr_pd

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 2 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 191151
    Description TCC-TS-18-18-VD
    d
    —
    • —
    L
    —
    • —
    B
    —
    • —
    H
    —
    • —
    f
    —
    • —
    h1
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    l5
    —
    • —
    s
    —
    • —
    C
    —
    • —
    F1
    —
    • —
    M1
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 191151
    Description TCC-TS-18-18-VD
    d 18
    L 65
    B 29
    H 34
    f 49
    h1 26
    l1 26.5
    l2 43.5
    l3 20.5
    l5 30.5
    s M6
    C 5
    F1 1450
    M1 14
    Weight 42
    Les mer
  • Code 191251
    Description TCC-TS-30-30-VD
    d 30
    L 96
    B 44
    H 53
    f 74
    h1 42
    l1 40.5
    l2 64.5
    l3 27
    l5 45.5
    s M8
    C 12
    F1 1650
    M1 17
    Weight 113
    Les mer
