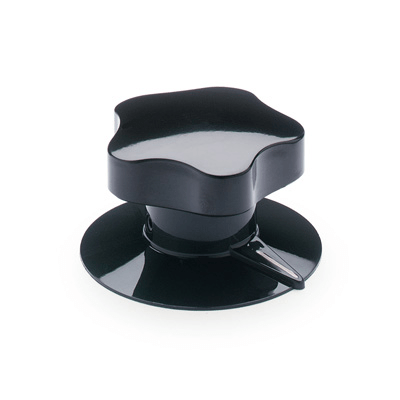

VC.192+F

Control knobs

Teknisk datablad
CE.24298-pa01_pa02_pa05

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 5 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 66211
    Description VC.192/30 B-6+F
    D
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    f
    —
    • —
    F
    —
    • —
    l
    —
    • —
    l3
    —
    • —
    dH9
    —
    • —
    h
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 66211
    Description VC.192/30 B-6+F
    D 32
    L 27
    d1 19
    d2 14
    h1 3
    h2 9
    f M4
    F 36
    l 19
    l3 19
    dH9 6
    h 22
    Weight 30
    Les mer
  • Code 66311
    Description VC.192/40 B-6+F
    D 40
    L 30
    d1 21
    d2 14
    h1 3
    h2 9
    f M4
    F 45
    l 24
    l3 19
    dH9 6
    h 22
    Weight 46
    Les mer
  • Code 66421
    Description VC.192/50 A-8+F
    D 50
    L 36
    d1 25
    d2 15
    h1 3
    h2 10
    f M5
    F 56
    l 30
    l3 25
    dH9 8
    h 23
    Weight 70
    Les mer
  • Code 66521
    Description VC.192/60 A-8+F
    D 60
    L 42
    d1 27
    d2 15
    h1 5
    h2 12
    f M5
    F 70
    l 37
    l3 25
    dH9 8
    h 25
    Weight 105
    Les mer
  • Code 66621
    Description VC.192/70 A-10+F
    D 70
    L 48
    d1 30
    d2 18
    h1 5
    h2 16
    f M6
    F 80
    l 42
    l3 31
    dH9 10
    h 30
    Weight 152
    Les mer
