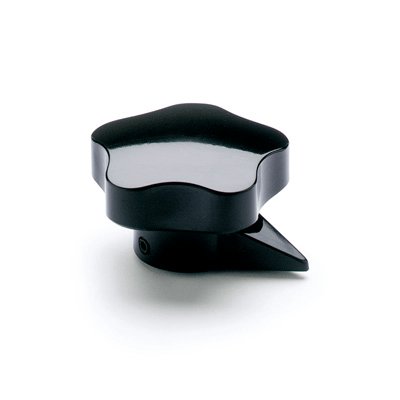

VC.192+IN

Control knobs

CE.24301-pa01_pa02_pa05

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 5 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 66321
    Description VC.192/40 B-6+IN
    D
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    f
    —
    • —
    dH9
    —
    • —
    h
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 66321
    Description VC.192/40 B-6+IN
    D 40
    L 27
    d1 25
    d2 14
    l 25
    l1 17
    h1 2
    h2 6
    f M4
    dH9 6
    h 14
    Weight 37
    Les mer
  • Code 66431
    Description VC.192/50 A-8+IN
    D 50
    L 33
    d1 30
    d2 15
    l 31
    l1 25
    h1 2
    h2 7
    f M5
    dH9 8
    h 20
    Weight 70
    Les mer
  • Code 66531
    Description VC.192/60 A-8+IN
    D 60
    L 37
    d1 32
    d2 15
    l 38
    l1 25
    h1 2
    h2 7
    f M5
    dH9 8
    h 20
    Weight 105
    Les mer
  • Code 66631
    Description VC.192/70 A-10+IN
    D 70
    L 44
    d1 35
    d2 18
    l 45
    l1 31
    h1 2
    h2 11
    f M6
    dH9 10
    h 25
    Weight 150
    Les mer
  • Code 66711
    Description VC.192/85 A-10+IN
    D 85
    L 55
    d1 41
    d2 22
    l 50
    l1 38
    h1 2
    h2 14
    f M6
    dH9 10
    h 25
    Weight 250
    Les mer
