Hjem / Industrikomponenter / Control elements / Control levers / LBR.

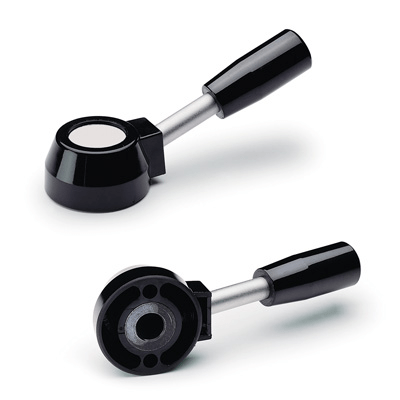

LBR.

Control levers

Teknisk datablad

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

LBR-A

Control levers
LBR-N

Control levers

Bracket Material

Stainless steel(0)
Steel(0)

Material

Aluminium(0)
Aluminium-Steel(0)
Aluminium|Stainless steel(0)
Brass(0)
Brass zinc alloy(0)
Brass-Steel(0)
Cast iron(0)
Die-cast zinc alloy(0)
Duroplast(0)
Duroplast-Chromium(0)
Duroplast-Stainless steel(0)
Duroplast-Steel(0)
Oslrubber(0)
Rubber(0)
Rubber-Stainless steel(0)
Rubber-Steel(0)
Silicon(0)
Stainless steel(0)
Stainless steel A4(0)
Steel(0)
Technopolymer(12)
Technopolymer-Die-cast zinc alloy(0)
Technopolymer-Stainless steel(0)
Technopolymer-Steel(0)
Technopolymer-Zamac(0)
Technopolymer|Stainless steel(0)
Titanium(0)
Zinc(0)

Bushing Material

Steel(0)

Carrying Capacity

0 - 1400 N(0)
10001 - 25000 N(0)
1401 - 2600 N(0)
2601 - 5000 N(0)
5001 - 10000 N(0)

Diameter

Plunger Diameter

Type Of Assembly

Blind hole(0)
Blind holes(0)
Blind holes-Threaded screws(0)
For welding(0)
Not drilled(0)
Pass-through hole(0)
Pass-through holes(0)
Pass-through holes-Blind holes(0)
Pass-through holes-Threaded screws(0)
Plain hole(13)
Plain hole and keyway(0)
Snap-in(0)
Square hole(0)
Threaded screw(0)
Threaded screws(0)
Without holes(0)

Type Of Tube

Round(0)
Square(0)
Square-Round(0)

Diameter Bases

100(0)
120(0)
125(0)
160(0)
200(0)
25(0)
26(0)
30(0)
32(0)
40(0)
50(0)
60(0)
70(0)
80(0)

Connecting Thread

1/2-13(0)
3/8-24(0)
M 10(0)
M 10x1(0)
M 12(0)
M 12x1.5(0)
M 16(0)
M 16x1.5(0)
M 20(0)
M 20x1.5(0)
M 24x2(0)
M 6(0)
M 6x0.75(0)
M 8(0)
M 8x0.75(0)
M 8x1(0)

External Diameter

Handle

fixed handle(0)
fold away handle(0)
revolving handle(0)
safety fold away handle(0)
without handle(0)

Hole

Lever Length

Wheel Base

Threaded Screw

1/2-13(0)
1/4-20(0)
10-32(0)
3/8-16(0)
5/16-18(0)
5/8-11(0)
63(0)
M 10(0)
M 12(0)
M 14(0)
M 16(0)
M 2(0)
M 2,5(0)
M 20(0)
M 20x1.5(0)
M 24(0)
M 24x2(0)
M 3(0)
M 30(0)
M 30x2(0)
M 36x2(0)
M 4(0)
M 42x2(0)
M 5(0)
M 6(0)
M 8(0)
M 8x22(0)

Hole Distance

Threaded Connection

G 1/2(0)
G 1/4(0)
G 1/8(0)
G 3/8(0)
M 10(0)
M 10x1.25(0)
M 10x1.5(0)
M 12(0)
M 14x1.5(0)
M 5(0)
M 6(0)
M 8(0)
NPT1/4(0)
NPT3/8(0)

Type Of Bellow

Multi-bellow(0)
Wibellow(0)

Type Of Vacuum Cups Holder

Anti-rotating(0)
Fixed(0)
Micro(0)
Mini-Anti-rotating(0)
Mini-Built-in Spring(0)
Mini-Fixed(0)
Mini-Spring(0)
Spring(0)

Vacuum Cup Holders Dimension

101 - 150(0)
151 - 192(0)
43 - 74(0)
75 - 100(0)

Vacuum Cups Dimension

101 - 143(0)
11 - 20(0)
21 - 30(0)
31 - 40(0)
4 - 10(0)
41 - 50(0)
51 - 60(0)
61 - 70(0)
71 - 80(0)
81 - 100(0)

Connector

DIN43650C(0)
KN(0)

length
pcs
set
stk

Viser alle 13 resultater

Vennligst velg en deltype for å få relevante valg.

Lukk

Code 33102

Description LBR.37/85 A-10

D

—

—

dH7

—

—

L

—

—

H

—

—

h

—

—

h1

—

—

d1

—

—

d2

—

—

d3

—

—

d4

—

—

i

—

—

l

—

—

R

—

—

c

—

—

Weight

—

—

CAD

Les mer

Code 33102

Description LBR.37/85 A-10

D 37

dH7 10

L 81

H 46

h 17

h1 20

d1 18

d2 21

d3 5

d4 10

i 26

l 22

R 13.8

c 4.3

Weight 71

Les mer
Code 33103

Description LBR.37/85 A-12

D 37

dH7 12

L 81

H 46

h 17

h1 20

d1 18

d2 21

d3 5

d4 10

i 26

l 22

R 13.8

c 4.3

Weight 66

Les mer
Code 33101

Description LBR.37/85 A-8

D 37

dH7 8

L 81

H 46

h 17

h1 20

d1 18

d2 21

d3 5

d4 10

i 26

l 22

R 13.8

c 4.3

Weight 75

Les mer
Code 33202

Description LBR.45/110 A-12

D 45

dH7 12

L 108

H 52

h 22

h1 25

d1 22

d2 25

d3 6

d4 10

i 32

l 28

R 17.5

c 7

Weight 120

Les mer
Code 33203

Description LBR.45/110 A-15

D 45

dH7 15

L 108

H 52

h 22

h1 25

d1 22

d2 25

d3 6

d4 10

i 32

l 28

R 17.5

c 7

Weight 105

Les mer
Code 33201

Description LBR.45/110 A-8

D 45

dH7 8

L 108

H 52

h 22

h1 25

d1 22

d2 25

d3 6

d4 10

i 32

l 28

R 17.5

c 7

Weight 132

Les mer
Code 33211

Description LBR.45/110 N-16

D 45

dH8 16

L 108

H 52

h 16

h1 25

d2 25

d3 6

d4 10

d5 6.5

i 32

l 28

R 17.5

c 7

f +0.05/0 13

b 12

Weight 80

Les mer
Code 33301

Description LBR.54/130 A-10

D 54

dH7 10

L 127

H 61

h 27

h1 30

d1 26

d2 31

d3 8

d4 12

i 39

l 34

R 20.2

c 7.3

Weight 213

Les mer
Code 33302

Description LBR.54/130 A-14

D 54

dH7 14

L 127

H 61

h 27

h1 30

d1 26

d2 31

d3 8

d4 12

i 39

l 34

R 20.2

c 7.3

Weight 198

Les mer
Code 33303

Description LBR.54/130 A-18

D 54

dH7 18

L 127

H 61

h 27

h1 30

d1 26

d2 31

d3 8

d4 12

i 39

l 34

R 20.2

c 7.3

Weight 175

Les mer
Code 33311

Description LBR.54/130 N-22

D 54

dH8 22

L 125

H 66

h 21

h1 30

d2 31

d3 8

d4 12

d5 6.5

i 39

l 34

R 20.2

c 7.3

f +0.05/0 19

b 16

Weight 130

Les mer
Code 33401

Description LBR.75/170 A-18

D 75

dH7 18

L 170

H 80

h 34

h1 38

d1 30

d2 42

d3 10

d4 14

i 55

l 45

R 26

c 15

Weight 360

Les mer
Code 33411

Description LBR.75/170 N-25

D 75

dH8 25

L 170

H 80

h 26

h1 38

d2 42

d3 10

d4 14

d5 8.5

i 55

l 45

R 26

c 15

f +0.05/0 22

b 21

Weight 255

Les mer
