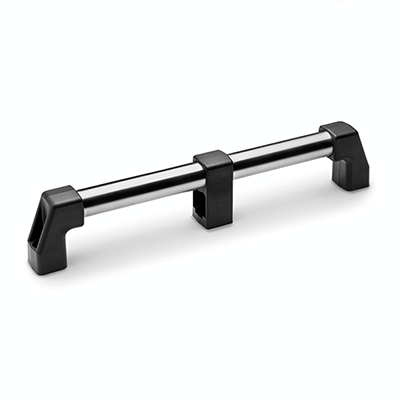

M.1043-SCM-SST

Tubolar handles

Teknisk datablad
CE.20258-ga01_ga02_ga05

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 37047-R
    Description M.1043 BM/20-700-SST-SCM
    d3
    —
    • —
    f±1
    —
    • —
    L
    —
    • —
    d
    —
    • —
    d4
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    l5
    —
    • —
    l6
    —
    • —
    C
    —
    • —
    F2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 37047-R
    Description M.1043 BM/20-700-SST-SCM
    d3 20
    f±1 700
    L 720
    d M8
    d4 8.5
    h 58
    h1 45
    h2 18
    h3 9.5
    l1 662
    l2 47
    l3 13
    l4 18
    l5 10±4
    l6 30
    C 28
    F2 -
    Weight 288
    Les mer
  • Code 37067-R
    Description M.1043 BM/30-1000-SST-SCM
    d3 30
    f±1 1000
    L 1024
    d M10
    d4 10.5
    h 78
    h1 60
    h2 25
    h3 15
    l1 954
    l2 57
    l3 18
    l4 22
    l5 13±5
    l6 36
    C 38
    F2 -
    Weight -
    Les mer
  • Code 37057-R
    Description M.1043 BM/30-700-SST-SCM
    d3 30
    f±1 700
    L 724
    d M10
    d4 10.5
    h 78
    h1 60
    h2 25
    h3 15
    l1 654
    l2 57
    l3 18
    l4 22
    l5 13±5
    l6 36
    C 38
    F2 -
    Weight 476
    Les mer
  • Code 37042-R
    Description M.1043/20-700-SST-SCM
    d3 20
    f±1 700
    L 720
    d 8.5
    d1 13.5
    d4 8.5
    h 58
    h1 45
    h2 18
    h3 9.5
    l1 662
    l2 47
    l3 13
    l4 18
    l5 10±4
    l6 30
    C 28
    F2 -
    Weight 288
    Les mer
  • Code 37062-R
    Description M.1043/30-1000-SST-SCM
    d3 30
    f±1 1000
    L 1024
    d 10.5
    d1 16
    d4 10.5
    h 78
    h1 60
    h2 25
    h3 15
    l1 954
    l2 57
    l3 18
    l4 22
    l5 13±5
    l6 36
    C 38
    F2 -
    Weight -
    Les mer
  • Code 37052-R
    Description M.1043/30-700-SST-SCM
    d3 30
    f±1 700
    L 724
    d 10.5
    d1 16
    d4 10.5
    h 78
    h1 60
    h2 25
    h3 15
    l1 654
    l2 57
    l3 18
    l4 22
    l5 13±5
    l6 36
    C 38
    F2 -
    Weight 476
    Les mer
