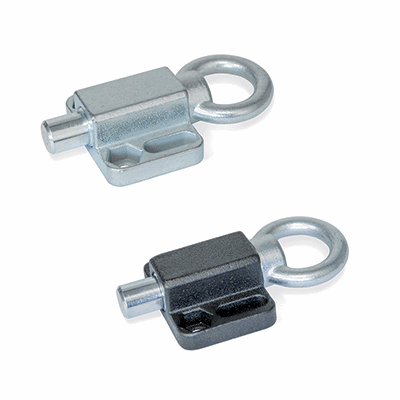

GN 722.6

Indexing plungers

Teknisk datablad
CE.30071-vc_792_xx

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 18 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GN.29034
    Description GN 722.6-10-20-A-A4
    Color
    —
    • —
    Position
    —
    • —
    d1 Plunger, hole
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    d4
    —
    • —
    b
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    k1
    —
    • —
    k2
    —
    • —
    k3
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    l5
    —
    • —
    s
    —
    • —
    sw
    —
    • —
    m
    —
    • —
    Spring preload
    —
    • —
    Spring max load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code GN.29034
    Description GN 722.6-10-20-A-A4
    Position 1
    d1 Plunger, hole 10
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 186
    Color -
    Les mer
  • Code GN.29035
    Description GN 722.6-10-20-A-SW
    Position 1
    Color SW
    d1 Plunger, hole 10
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 171
    Les mer
  • Code GN.29036
    Description GN 722.6-10-20-A-ZB
    Position 1
    Color ZB
    d1 Plunger, hole 10
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 171
    Les mer
  • Code GN.29037
    Description GN 722.6-12-20-A-A4
    Position 1
    d1 Plunger, hole 12
    d2 6.1
    d3 5
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 190
    Color -
    Les mer
  • Code GN.29038
    Description GN 722.6-12-20-A-SW
    Position 1
    Color SW
    d1 Plunger, hole 12
    d2 6.1
    d3 5
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 175
    Les mer
  • Code GN.29039
    Description GN 722.6-12-20-A-ZB
    Position 1
    Color ZB
    d1 Plunger, hole 12
    d2 6.1
    d3 5
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 175
    Les mer
  • Code GN.29040
    Description GN 722.6-14-20-A-A4
    Position 1
    d1 Plunger, hole 14
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 194
    Color -
    Les mer
  • Code GN.29041
    Description GN 722.6-14-20-A-SW
    Position 1
    Color SW
    d1 Plunger, hole 14
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 179
    Les mer
  • Code GN.29042
    Description GN 722.6-14-20-A-ZB
    Position 1
    Color ZB
    d1 Plunger, hole 14
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 179
    Les mer
  • Code GN.29043
    Description GN 722.6-16-30-A-A4
    Position 1
    d1 Plunger, hole 16
    d2 10.1
    d3 50
    d4 10
    b 10.1
    h1 15
    h2 5
    h3 15
    k1 14
    k2 34
    k3 10
    l1 103
    l2 20
    l3 54
    l4 78
    l5 80
    s 30
    sw 17
    m 55
    Spring preload 30
    Spring max load 110
    Weight 802
    Color -
    Les mer
  • Code GN.29044
    Description GN 722.6-16-30-A-SW
    Position 1
    Color SW
    d1 Plunger, hole 16
    d2 10.1
    d3 50
    d4 10
    b 10.1
    h1 15
    h2 5
    h3 15
    k1 14
    k2 34
    k3 10
    l1 103
    l2 20
    l3 54
    l4 78
    l5 80
    s 30
    sw 17
    m 55
    Spring preload 30
    Spring max load 110
    Weight 797
    Les mer
  • Code GN.29045
    Description GN 722.6-16-30-A-ZB
    Position 1
    Color ZB
    d1 Plunger, hole 16
    d2 10.1
    d3 50
    d4 10
    b 10.1
    h1 15
    h2 5
    h3 15
    k1 14
    k2 34
    k3 10
    l1 103
    l2 20
    l3 54
    l4 78
    l5 80
    s 30
    sw 17
    m 55
    Spring preload 30
    Spring max load 110
    Weight 797
    Les mer
  • Code GN.29046
    Description GN 722.6-20-30-A-A4
    Position 1
    d1 Plunger, hole 20
    d2 10.1
    d3 50
    d4 10
    b 10.1
    h1 15
    h2 5
    h3 15
    k1 14
    k2 34
    k3 10
    l1 103
    l2 20
    l3 54
    l4 78
    l5 80
    s 30
    sw 17
    m 55
    Spring preload 30
    Spring max load 110
    Weight 820
    Color -
    Les mer
  • Code GN.29047
    Description GN 722.6-20-30-A-SW
    Position 1
    Color SW
    d1 Plunger, hole 20
    d2 10.1
    d3 50
    d4 10
    b 10.1
    h1 15
    h2 5
    h3 15
    k1 14
    k2 34
    k3 10
    l1 103
    l2 20
    l3 54
    l4 78
    l5 80
    s 30
    sw 17
    m 55
    Spring preload 30
    Spring max load 110
    Weight 815
    Les mer
  • Code GN.29048
    Description GN 722.6-20-30-A-ZB
    Position 1
    Color ZB
    d1 Plunger, hole 20
    d2 10.1
    d3 50
    d4 10
    b 10.1
    h1 15
    h2 5
    h3 15
    k1 14
    k2 34
    k3 10
    l1 103
    l2 20
    l3 54
    l4 78
    l5 80
    s 30
    sw 17
    m 55
    Spring preload 30
    Spring max load 110
    Weight 815
    Les mer
  • Code GN.29031
    Description GN 722.6-8-20-A-A4
    Position 1
    d1 Plunger, hole 8
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 179
    Color -
    Les mer
  • Code GN.29032
    Description GN 722.6-8-20-A-SW
    Position 1
    Color SW
    d1 Plunger, hole 8
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 168
    Les mer
  • Code GN.29033
    Description GN 722.6-8-20-A-ZB
    Position 1
    Color ZB
    d1 Plunger, hole 8
    d2 6.1
    d3 36
    d4 7
    b 6.1
    h1 7.5
    h2 1.5
    h3 10
    k1 7.5
    k2 18
    k3 12
    l1 70
    l2 14
    l3 35
    l4 52
    l5 48
    s 20
    sw 10
    m 34
    Spring preload 15
    Spring max load 50
    Weight 168
    Les mer
